1977 Yamaha YZ80D_E_F (YZ80D) Shift Shaft Diagram

← All diagrams

Find the part on the Shift Shaft diagram for your 1977 Yamaha YZ80D_E_F (YZ80D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

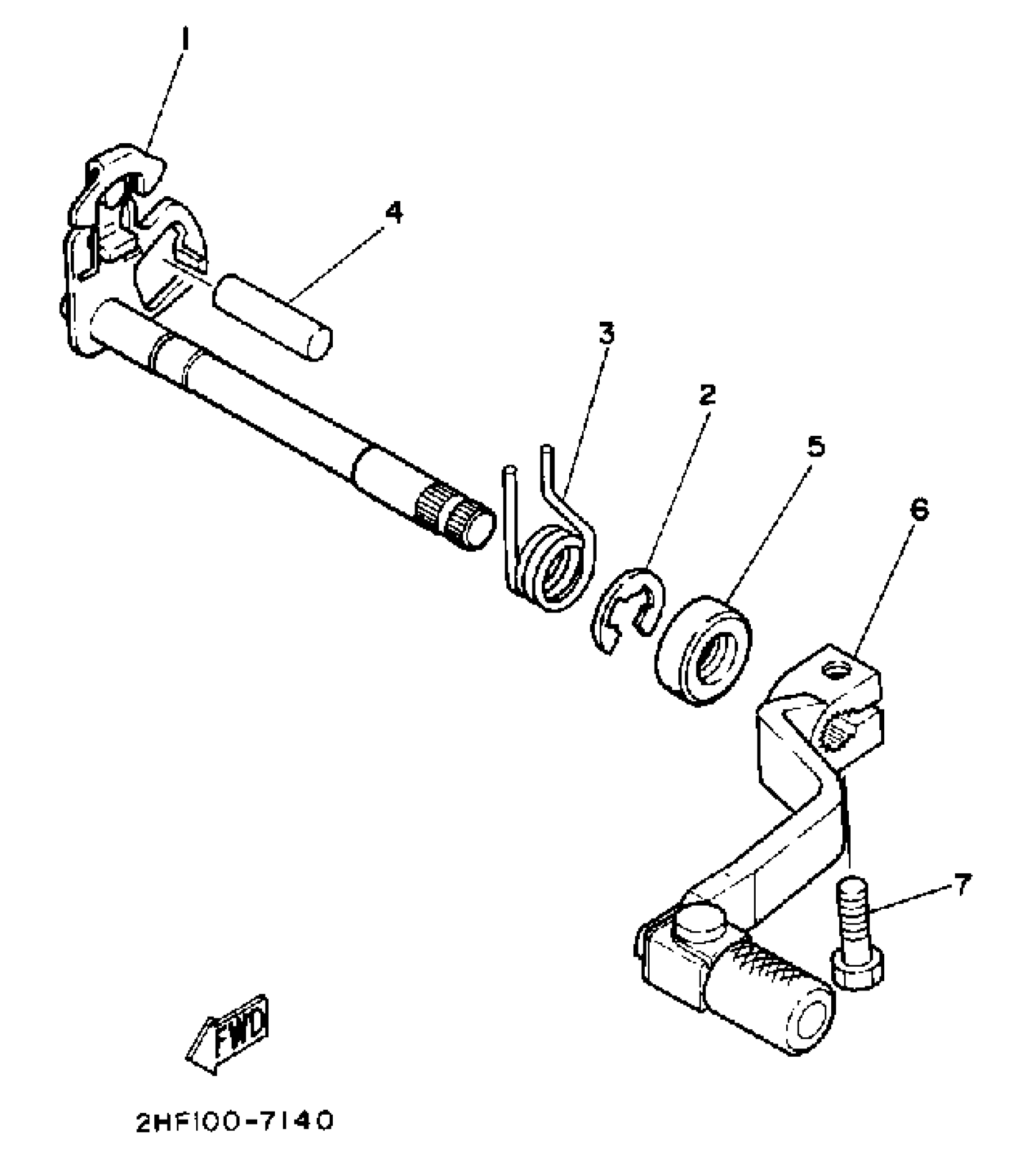

1977 Yamaha YZ80D_E_F (YZ80D) Shift Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT SHAFT ASSEMBLY.1

22W-18101-01-00

1
Out of stock

2

CIRCLIP

99006-10600-00

1
Out of stock

3

SPRING, TORSION(17W)

90508-32642-00

1
Out of stock

4

PIN, DOWEL

93608-30152-00

1
Out of stock

5

OIL SEAL (12X19X5-401)

93109-12012-00

1
Out of stock

6

SHIFT PEDAL ASSY

2HF-18110-02-00

1
Out of stock

7

BOLT, HEXAGON

97017-06020-00

1
Out of stock
