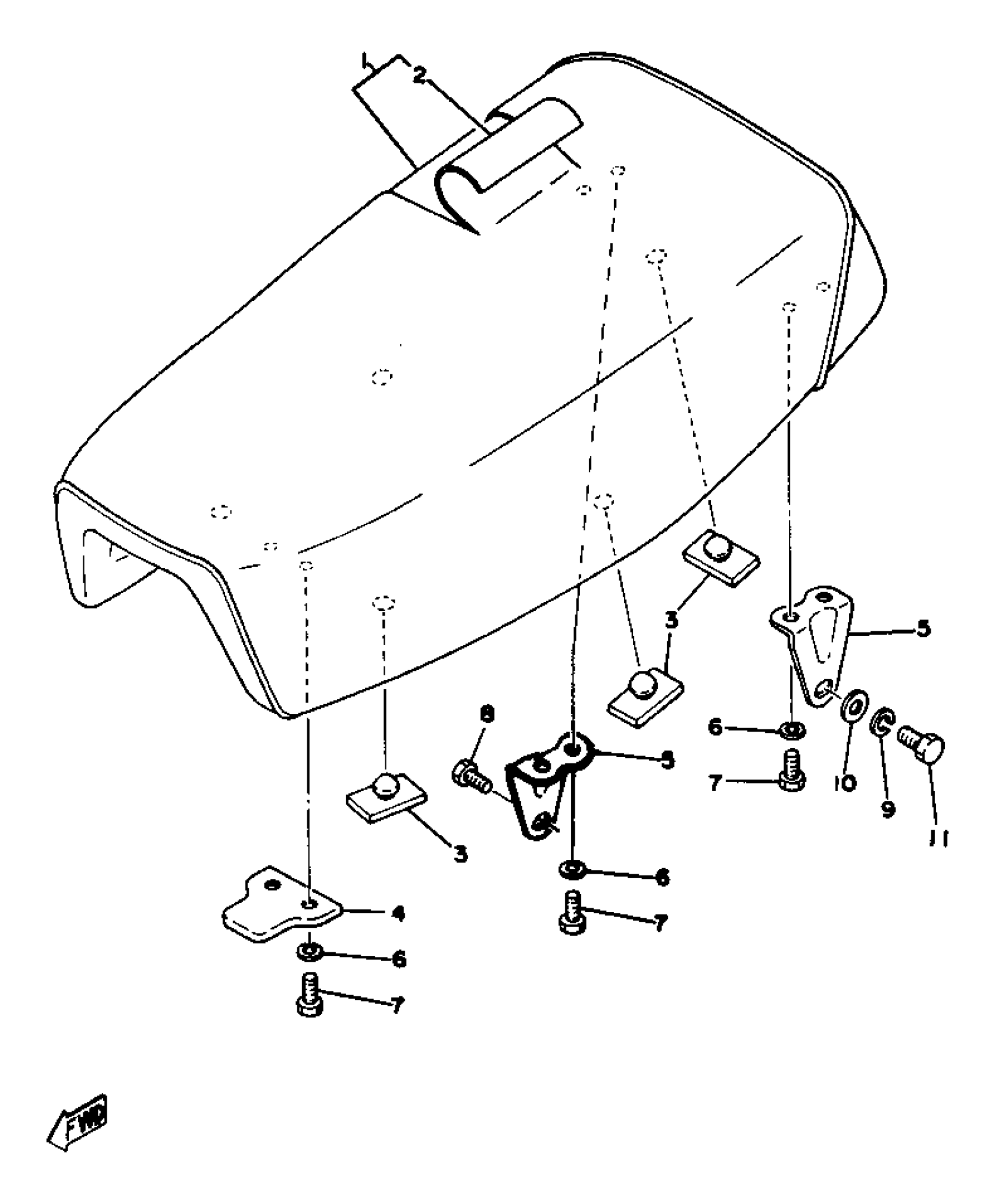

Yamaha YZ80D (YZ80D_E_F) 1977 SEAT YZ80E Diagram

#

Description
Price

1

SEMI-DBL-SEAT ASSEMBLY

(2J5-W2473-00-00)

Unavailable

2

. COVER, SM-DBL SEAT

2J5-24771-00-00

Unavailable

3

DAMPER, SEAT

509-24724-00-00

$9.02

4

BRACKET, SEAT

1M1-24748-00-00

Unavailable

5

BRACKET, SEAT REAR

2A6-24738-00-00

Unavailable

6

WASHER, SPRING

92995-06100-00

$2.83

7

BOLT(8CP)

97017-06014-00

$5.29

8

BOLT(JA9)

90101-08691-00

$5.13

9

YBS67-8 WASHER, SPRING

92990-08100-00

$4.32

10

.. WASHER, PLATE

92990-08600-00

$2.18

11

BOLT, HEXAGON

97013-08020-00

$1.52
