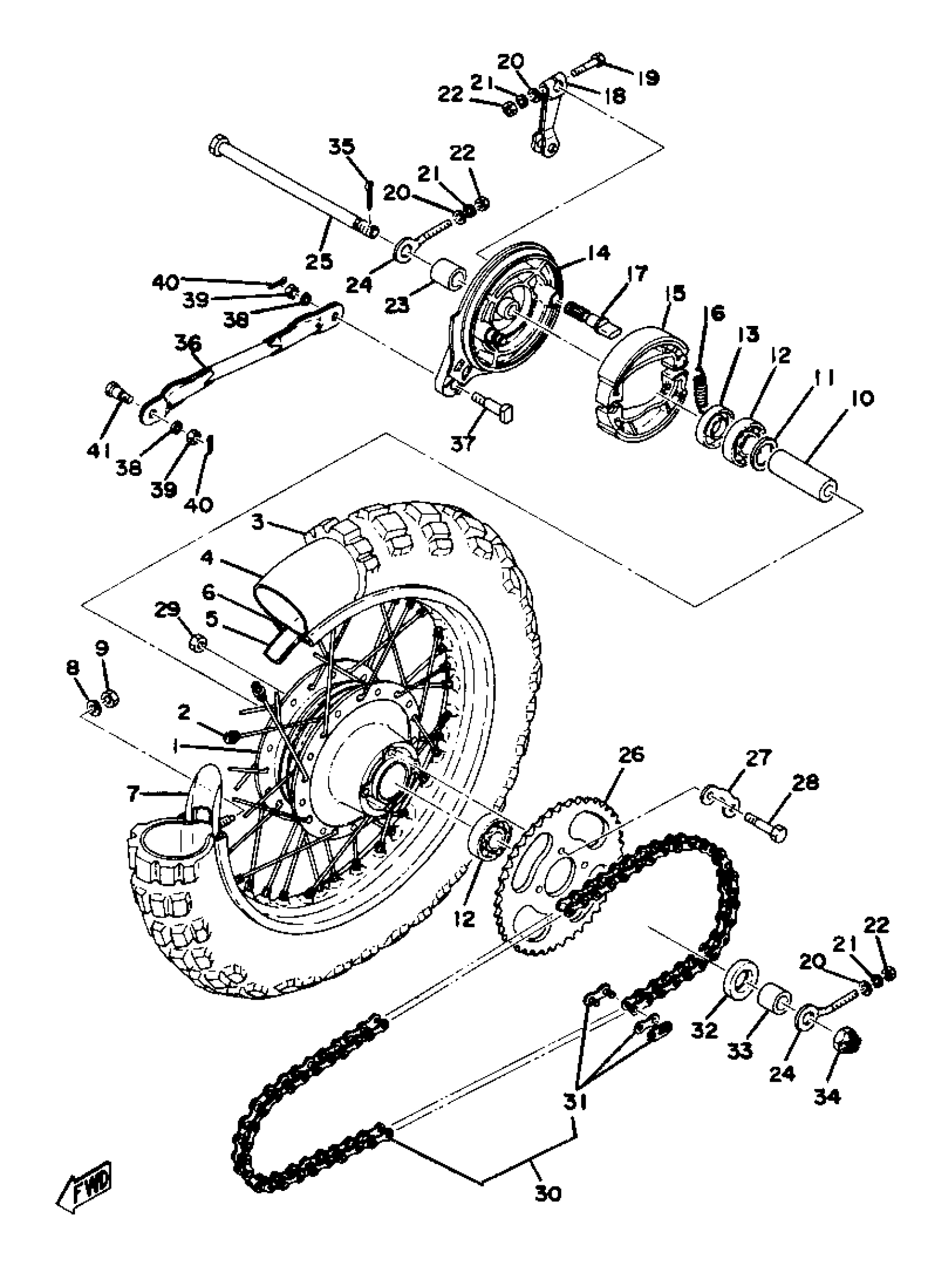

Yamaha YZ80D (YZ80D_E_F) 1977 REAR WHEEL YZ80D Diagram

#

Description
Price

1

HUB, REAR

(462-25311-00-98)

Unavailable

2

SPOKE SET, REAR

462-25304-00-00

Unavailable

3

360X14 IRC MX 45

(94136-14294-00)

Unavailable

4

TUBE (80-90/100-14 TR4)(4ES)

94208-14285-00

$25.99

5

BAND, RIM (1K8)

94327-14076-00

$10.49

6

RIM 1.40X14

(94414-14200-00)

Unavailable

7

SPACER, BEAD

462-25394-00-00

Unavailable

8

.. WASHER, PLATE

92990-08600-00

Unavailable

9

NUT(6L2)

95333-08600-00

$2.49

10

SPACER (1U1)

90560-12170-00

$17.99

11

FLANGE, SPACER

109-25315-00-00

$7.99

12

BRG.

93306-30101-00

$36.99

13

OIL SEAL(3TU)

93106-20033-00

$13.49

14

PLATE, BRAKE SHOE

(462-25321-00-98)

Unavailable

15

BRAKE SHOE KIT

4KN-W253E-11-00

$25.99

16

SPRING, TENSION (566).

90506-16150-00

Unavailable

17

CAM SHAFT

122-25351-02-00

Unavailable

18

LEVER, CAM SHAFT

122-25355-00-00

Unavailable

19

BOLT, HEXAGON (538)

90101-06278-00

Unavailable

20

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

NUT, HEXAGON

95380-06600-00

Unavailable

23

COLLAR 102253830000

90387-12412-00

Unavailable

24

PULLER, CHAIN

3AC-2538G-10-00

Unavailable

25

AXLE, WHEEL

367-25381-01-00

Unavailable

26

SPROCKET, DRVN 49T

13N-25449-20-00

Unavailable

26

SPROCKET, DRIVEN (48T)

492-25448-11-00

Unavailable

26

SPROCKET, DRIVEN

4U6-25447-11-00

Unavailable

27

WASHER

2AL-25412-00-00

Unavailable

28

BOLT 109254110000

90109-08319-00

Unavailable

29

NUT, HEXAGON (509)

90170-08158-00

Unavailable

30

CHAIN, DRIVE

9Y580-52103-00

Unavailable

31

. JOINT, CHAIN

94600-03001-00

Unavailable

32

OIL SEAL, SO-TYPE

93104-18006-00

Unavailable

33

COLLAR (40E)

90387-127E0-00

Unavailable

34

NUT CASTLE(481)

90171-12005-00

Unavailable

35

PIN, COTTER

91490-30030-00

Unavailable

36

BAR, TENSION

(462-25371-00-00)

Unavailable

37

BOLT 1022537300

90109-08183-00

Unavailable

38

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

39

. NUT

95380-08700-00

Unavailable

40

PIN, COTTER

91490-20025-00

Unavailable

41

BOLT (183-25378-00)

90109-08368-00

Unavailable
