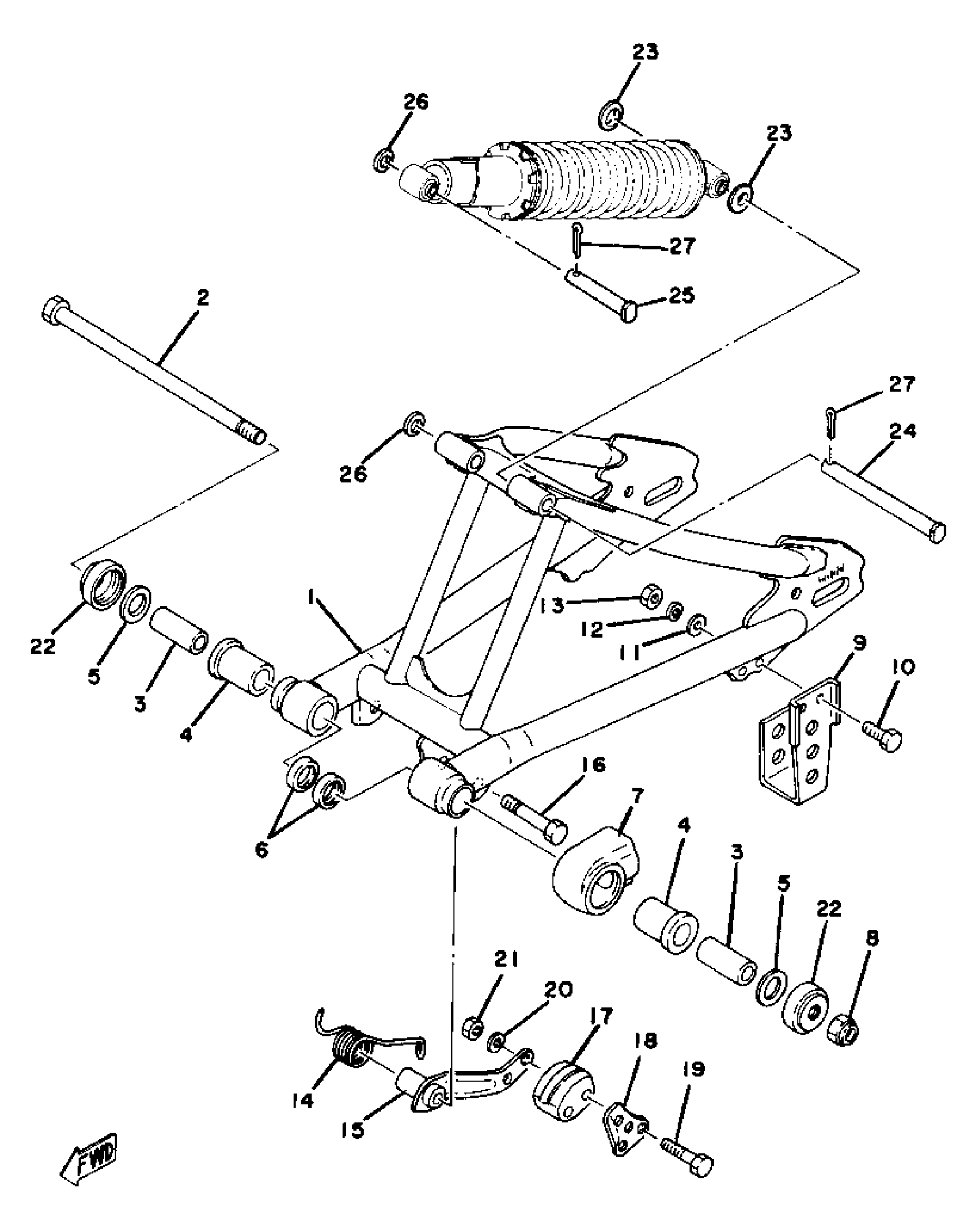

Yamaha YZ80D (YZ80D_E_F) 1977 REAR ARM YZ80F Diagram

#

Description
Price

1

REAR ARM

(2X6-22110-02-33)

Unavailable

2

BOLT, WASHER BASED (14A)

90105-12228-00

$19.99

3

BUSHING, REAR ARM INNER

2J5-22124-00-00

$48.99

4

BUSH

90386-18099-00

Unavailable

5

SHIM

401-22127-00-00

$7.99

6

OIL SEAL (2J5)

93109-18020-00

$13.49

7

SEAL, GUARD

2X6-22151-00-00

Unavailable

8

NUT, U (4PM)

95617-12100-00

$4.16

9

GUARD, CHAIN

492-22153-00-33

Unavailable

10

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

11

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

12

WASHER, SPRING

92995-06100-00

Unavailable

13

NUT, HEXAGON

95380-06600-00

Unavailable

14

SPRING, TENSIONER

2X6-22169-00-00

Unavailable

15

ARM, TENSIONER

3R1-22179-00-00

Unavailable

16

BOLT

2J5-22125-00-00

Unavailable

17

TENSIONER

2J5-22178-01-00

Unavailable

18

GUIDE, CHAIN

2J5-22187-00-00

Unavailable

19

BOLT (674)

97313-05035-00

Unavailable

20

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

21

NUT, HEXAGON SMALL

95317-05700-00

Unavailable

22

COVER, THRUST 1

2J5-22128-00-00

Unavailable

23

COVER, THRUST 2

2X6-22129-00-00

Unavailable

24

PIN, CLEVIS

(90240-10065-00)

Unavailable

25

PIN, CLEVIS

90240-10064-00

Unavailable

26

WASHER, PLATE

92990-10600-00

Unavailable

27

PIN, COTTER

91490-25020-00

Unavailable
