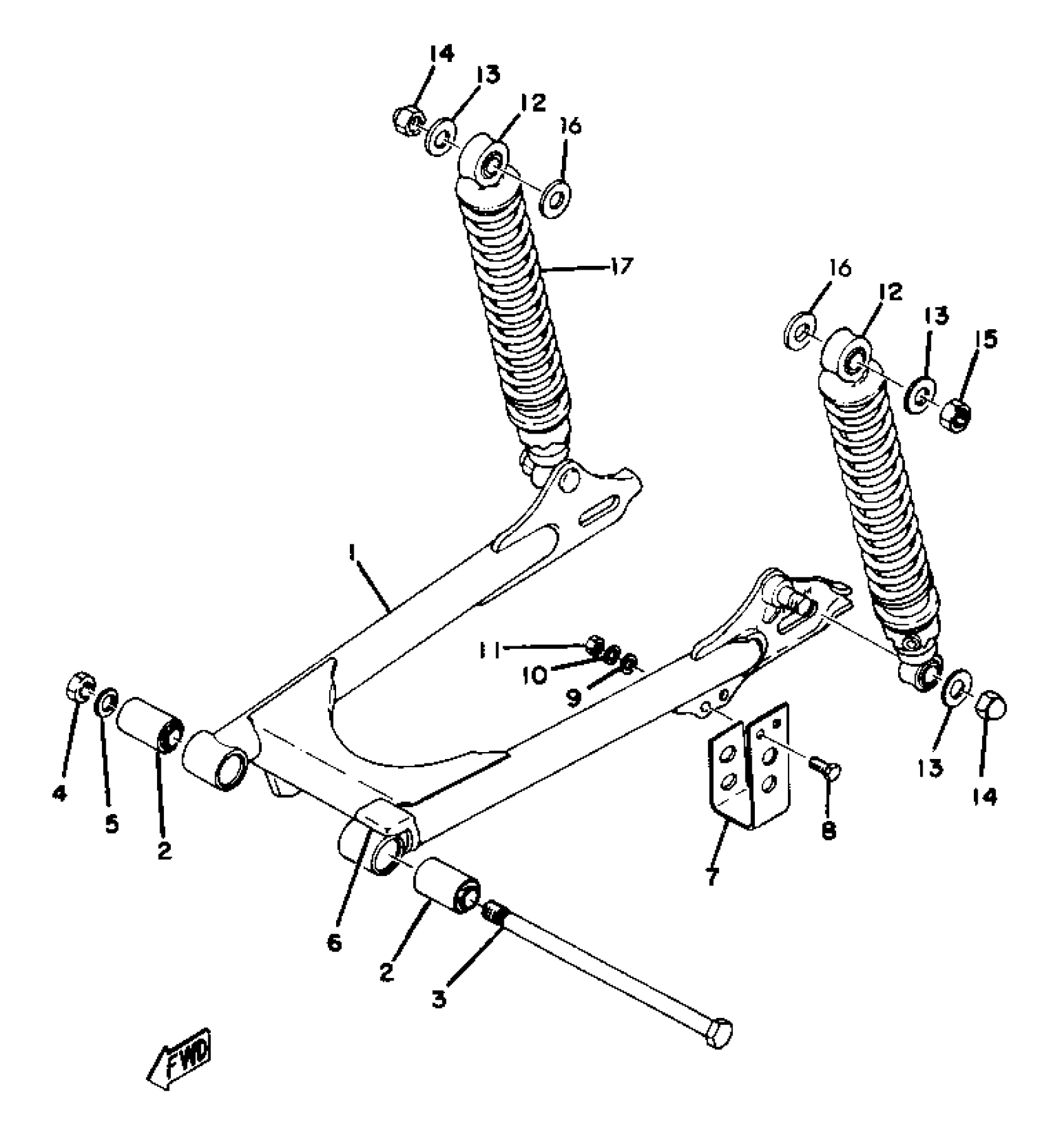

Yamaha YZ80D (YZ80D_E_F) 1977 REAR ARM REAR CUSHION YZ80D Diagram

#

Description
Price

1

REAR ARM

(1T0-22110-01-33)

Unavailable

2

BUSH 1

276-22123-00-00

$38.99

3

AXLE,WHEEL

2J5-25381-01-00

Unavailable

4

NUT, U (4PM)

95617-12100-00

$4.16

5

YBS67-12 WASHER,SPRING

92990-12100-00

$8.49

6

SEAL, GUARD

183-22151-00-00

$8.99

7

GUARD, CHAIN

492-22153-00-33

Unavailable

8

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

9

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

10

WASHER, SPRING

92995-06100-00

Unavailable

11

NUT, HEXAGON

95380-06600-00

Unavailable

12

SHK/ABS ASSEMBLY, REAR

(1T0-22210-00-00)

Unavailable

13

WASHER, PLATE (3J6)

90201-100A1-00

$8.49

14

NUT, CROWN(3BM)

90176-10073-00

$8.49

15

NUT(3BM)

95314-10600-00

$2.39

16

WASHER, PLATE (3X3)

90201-15797-00

Unavailable

17

SPRING

(1T0-22212-10-00)

Unavailable
