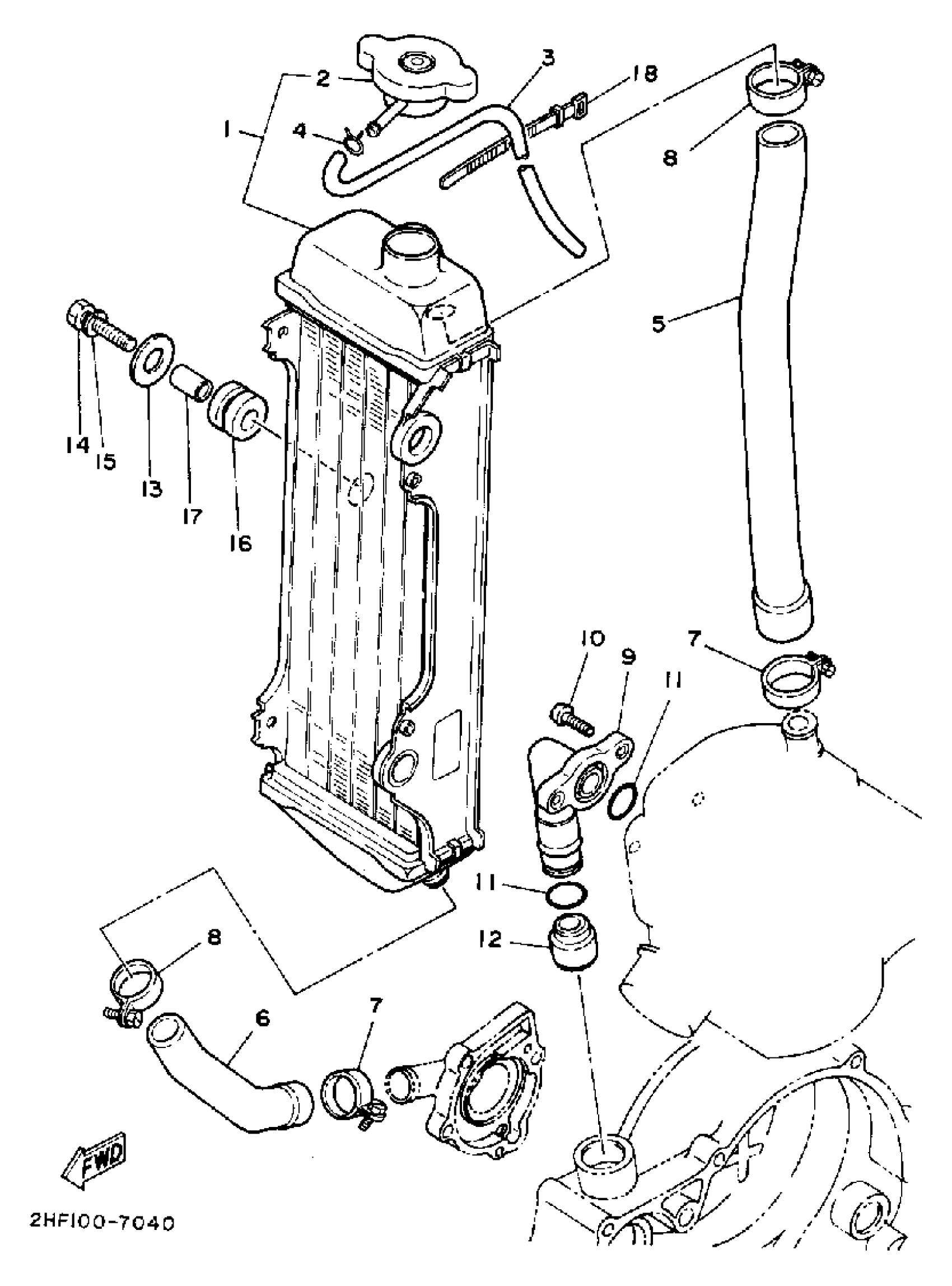

Yamaha YZ80D (YZ80D_E_F) 1977 RADIATOR - HOSE Diagram

#

Description
Price

1

RADIATOR ASSEMBLY

2HF-12460-00-00

Unavailable

2

CAP, RADIATOR

4FL-12462-00-00

$54.20

3

PIPE, BREATHER

22W-12463-00-00

$17.83

4

CLIP, PIPE 6162435600

90467-08004-00

$7.00

5

PIPE 1

39K-12481-00-00

Unavailable

6

PIPE 2

39K-12482-00-00

Unavailable

7

HOSE CLAMP ASSY

90450-28001-00

$11.95

8

HOSE CLAMP ASSY(64X)

90450-22M14-00

$13.14

9

JOINT

2VE-12446-00-00

Unavailable

10

SCREW, PAN HEAD(3TJ)

98507-06016-00

$2.32

11

. O-RING

93210-16275-00

$2.83

12

SEAL, PIPE 1

4V2-12494-00-00

Unavailable

13

WASHER, PLATE

90201-06086-00

$5.59

14

BOLT, HEXAGON

97017-06030-00

$2.86

15

WASHER, SPRING

92995-06100-00

$2.83

16

GROMMET(663)

90480-15064-00

Unavailable

17

COLLAR(2UJ)

90387-061V1-00

Unavailable

18

BAND, SWITCH CORD

437-83936-01-00

Unavailable
