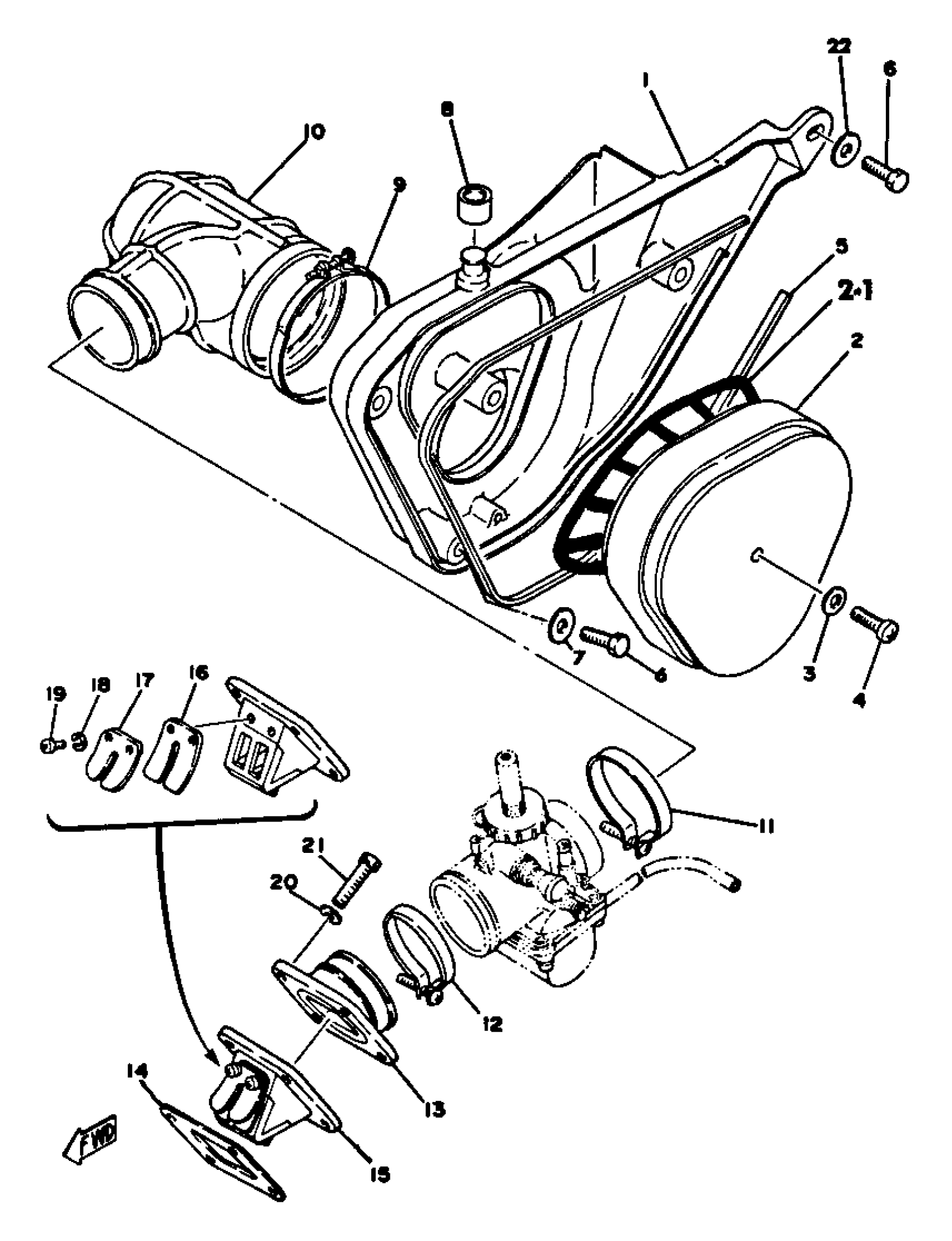

Yamaha YZ80D (YZ80D_E_F) 1977 INTAKE YZ80E Diagram

#

Description
Price

1

CASE, AIR CLEANER 1

(2J5-14411-00-00)

Unavailable

1

GUIDE, ELEMENT

(2J5-14458-00-00)

Unavailable

2

ELEMENT, AIR CLNR (2J5-14451-00)

2J5-14451-09-00

Unavailable

3

WASHER, PLATE

90201-06380-00

$0.60

4

SCREW PAN HEAD

98580-06020-00

$8.49

5

SEAL

51Y-14462-00-00

$18.49

6

BOLT, HEXAGON

97017-06020-00

$4.06

7

WASHER, PLATE

90201-06049-00

Unavailable

8

SEAL

51Y-14462-00-00

$18.49

9

HOSE CLAMP ASSY

90450-75002-00

$11.49

10

JOINT, AIR CLNR 1

2J5-14453-00-00

Unavailable

11

CLAMP HOSE 304144550000

90460-51059-00

$16.99

12

CLAMP, HOSE (5H0)

90460-43179-00

$19.99

13

NO LONGER AVAILABLE

1T0-13565-00-00

Unavailable

14

GASKET, VALVE SEAT

87A-13621-00-00

$8.99

15

REED VALVE ASSY

345-13610-20-00

Unavailable

16

REED, VALVE

345-13613-70-00

Unavailable

17

. STOPPER, REED VALVE

345-13616-70-00

Unavailable

18

WASHER, SPRING

92990-03100-00

Unavailable

19

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

20

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

21

BOLT, HEXAGON

97017-06025-00

Unavailable

22

UNAVAILABLE IN PRICE BOOK

90201-05067-00

Unavailable
