Description

Price

1

CASE, AIR CLEANER 1

(1T0-14411-00-00)

Unavailable

2

ELEMENT, AIR CLNR

1T0-14451-00-00

Unavailable

3

CAP, CLEANER CASE 1

(1T0-14412-00-00)

Unavailable

4

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

5

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

6

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

7

WASHER, PLATE

90201-06380-00

$0.60

8

COVER 2

(1T0-14418-00-00)

Unavailable

9

JOINT, AIR CLNR 1

598-14453-00-00

Unavailable

10

CLAMP HOSE 304144550000

90460-51059-00

$16.99

11

CLAMP, HOSE (5H0)

90460-43179-00

$19.99

12

JOINT, CARBURETOR

(1T0-13565-00-00)

Unavailable

13

GASKET, VALVE SEAT

87A-13621-00-00

$8.99

14

REED VALVE ASSY

345-13610-20-00

$228.99

15

REED, VALVE

345-13613-70-00

$72.99

16

. STOPPER, REED VALVE

345-13616-70-00

Unavailable

17

WASHER, SPRING

92990-03100-00

Unavailable

18

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

19

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

20

BOLT, HEXAGON

97017-06025-00

Unavailable

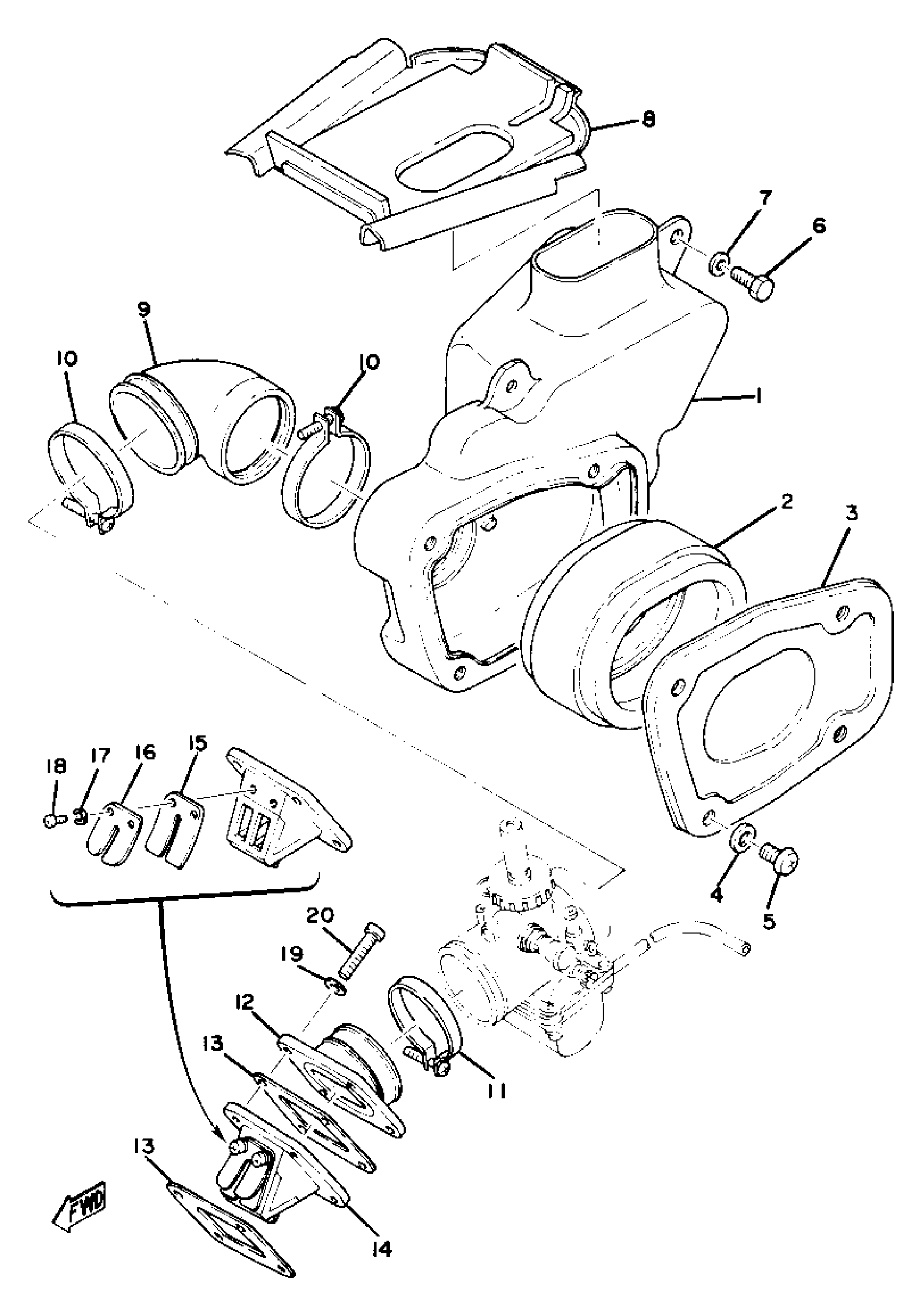

Yamaha YZ80D (YZ80D_E_F) 1977 INTAKE YZ80D Diagram

CASE, AIR CLEANER 1

ELEMENT, AIR CLNR

CAP, CLEANER CASE 1

WASHER, PLATE (4H7)

SCREW, PAN HEAD(62J)

BOLT, HEXAGON DEEP RECESS

WASHER, PLATE

COVER 2

JOINT, AIR CLNR 1

CLAMP HOSE 304144550000

CLAMP, HOSE (5H0)

JOINT, CARBURETOR

GASKET, VALVE SEAT

REED VALVE ASSY

REED, VALVE

. STOPPER, REED VALVE

WASHER, SPRING

SCREW, PAN HEAD (J10)

WASHER, PLATE (4H7)

BOLT, HEXAGON
