Description

Price

1

HANDLEBAR

4ES-26111-10-00

Unavailable

2

GRIP, HANDLE (L.H)

1E6-26241-00-00

$34.99

3

HOLDER, LEVER (L.H)

214-82911-01-00

$56.99

4

LEVER 1

23X-83912-02-00

$27.99

5

BOLT, HEXAGON

97013-06022-00

$0.90

6

WASHER, SPRING

92995-06100-00

Unavailable

7

BOLT(3GB)

90109-061F3-00

$7.49

8

NUT, SELF-LOCKING

95617-06100-00

$8.49

9

HOLDER, LEVER (R.H)

233-82921-31-00

$68.99

10

LEVER R

23X-83922-01-00

$27.99

11

BOLT, HEXAGON

97013-06022-00

$0.90

12

WASHER, SPRING

92995-06100-00

Unavailable

13

BOLT(3GB)

90109-061F3-00

$7.49

14

NUT, SELF-LOCKING

95617-06100-00

$8.49

15

IGNITION COIL ASSEMBLY

2X6-82310-10-00

Unavailable

16

TUBE, GUIDE.

434-26243-00-00

Unavailable

17

RING, LEAF

1M1-26249-01-00

Unavailable

18

GRIP (R.H)

1A0-26242-01-00

Unavailable

19

CABLE, THROTTLE 1

2J5-26311-01-00

Unavailable

20

NUT, HEXAGON

90170-10038-00

Unavailable

21

CABLE, BRAKE

2J5-26341-00-00

Unavailable

22

BOLT

90123-08002-00

Unavailable

23

CABLE, CLUTCH

598-26335-01-00

Unavailable

24

COVER, LEVER

498-26372-00-00

Unavailable

25

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

26

CABLE, BRAKE

2J5-26341-00-00

Unavailable

27

COVER, LEVER

498-26372-00-00

Unavailable

28

BOLT (109-26345-00)

90123-06011-00

Unavailable

29

NUT (109-26344-00)

90179-06143-00

Unavailable

30

BAND, SWITCH CORD

437-83936-01-00

Unavailable

31

END, WIRE

164-26363-00-00

Unavailable

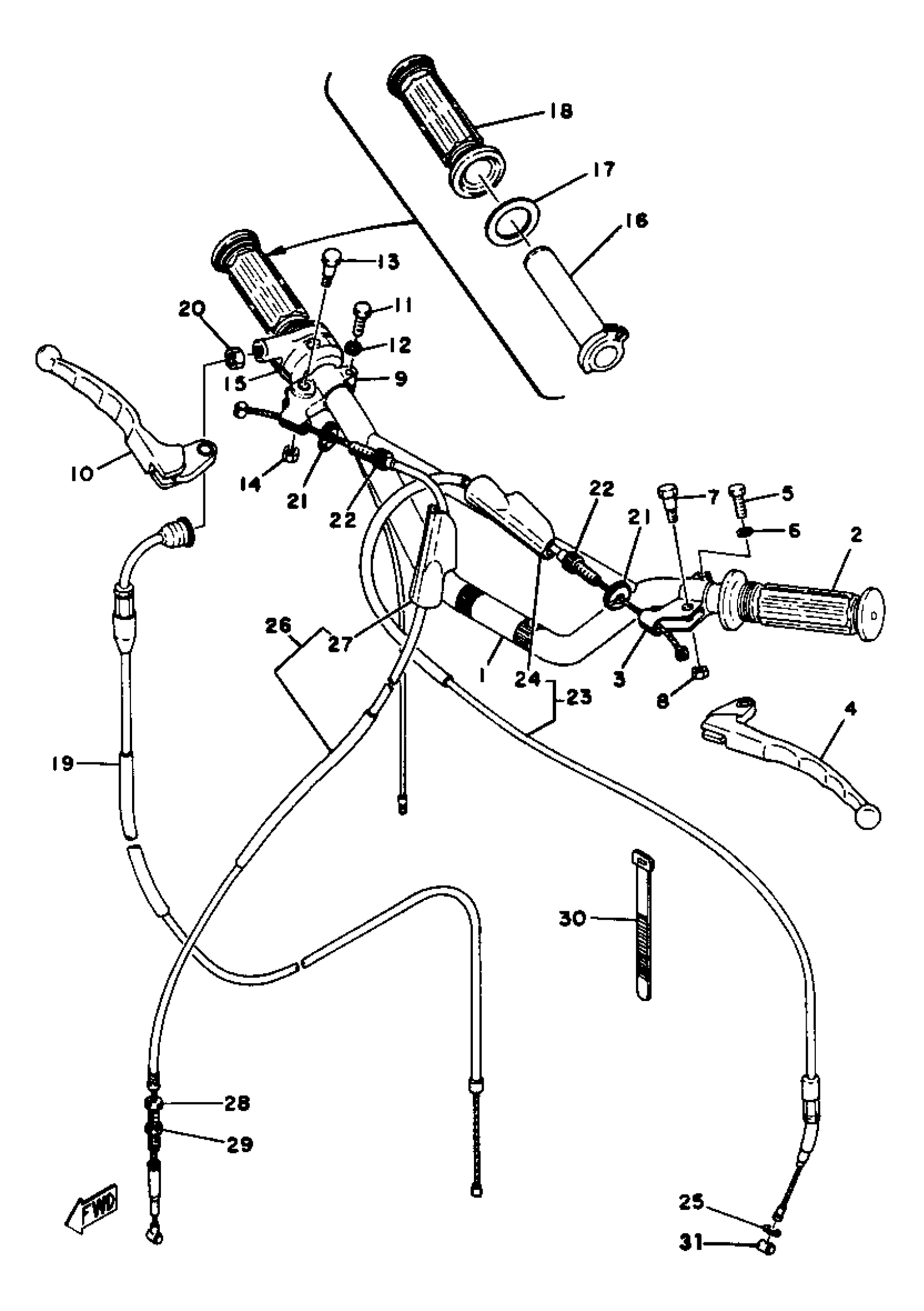

Yamaha YZ80D (YZ80D_E_F) 1977 HANDLE WIRE YZ80F Diagram

HANDLEBAR

GRIP, HANDLE (L.H)

HOLDER, LEVER (L.H)

LEVER 1

BOLT, HEXAGON

WASHER, SPRING

BOLT(3GB)

NUT, SELF-LOCKING

HOLDER, LEVER (R.H)

LEVER R

BOLT, HEXAGON

WASHER, SPRING

BOLT(3GB)

NUT, SELF-LOCKING

IGNITION COIL ASSEMBLY

TUBE, GUIDE.

RING, LEAF

GRIP (R.H)

CABLE, THROTTLE 1

NUT, HEXAGON

CABLE, BRAKE

BOLT

CABLE, CLUTCH

COVER, LEVER

WASHER, PLATE (4H7)

CABLE, BRAKE

COVER, LEVER

BOLT (109-26345-00)

NUT (109-26344-00)

BAND, SWITCH CORD

END, WIRE
