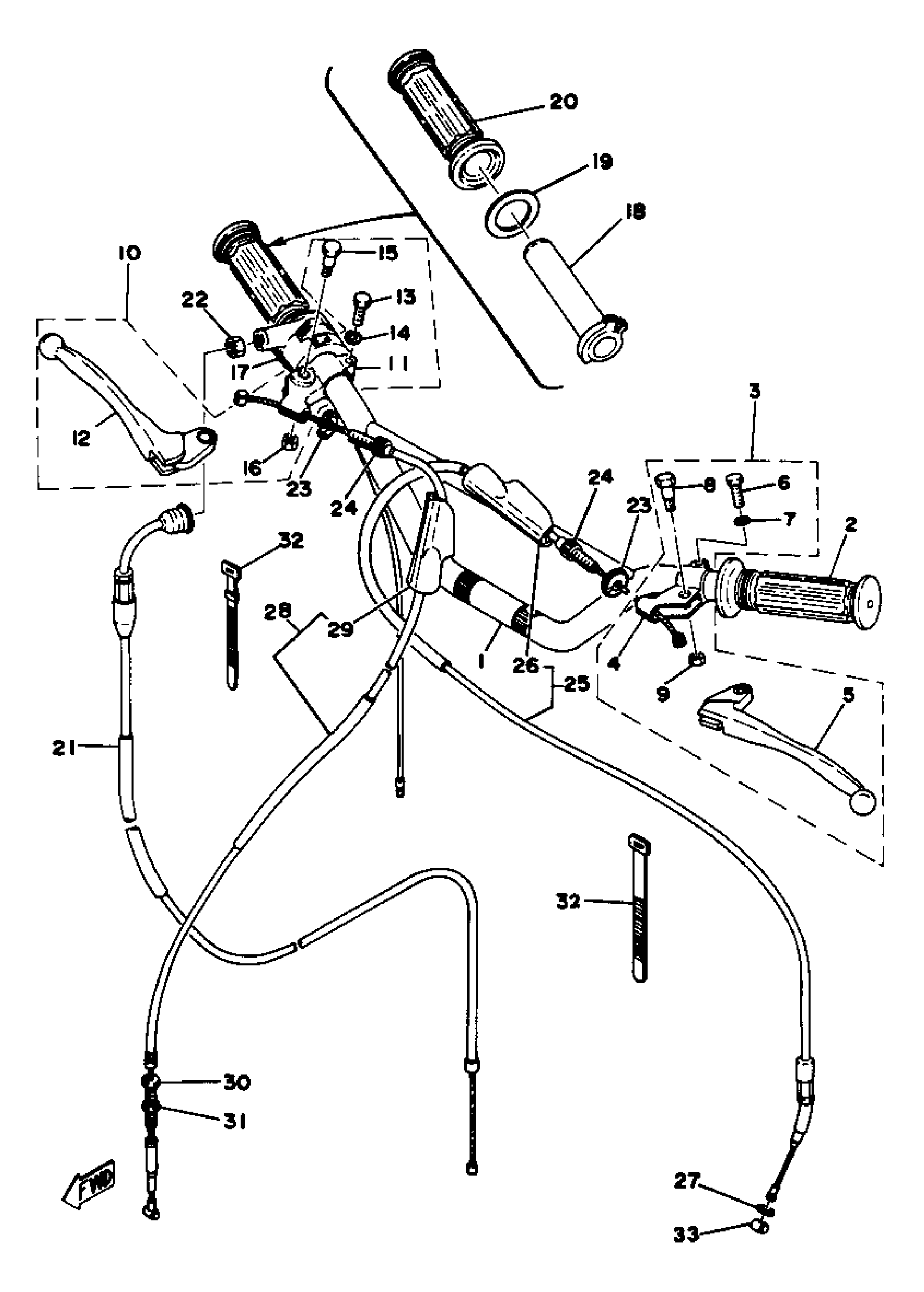

Yamaha YZ80D (YZ80D_E_F) 1977 HANDLE WIRE YZ80E Diagram

#

Description
Price

1

HANDLEBAR

(598-26111-00-00)

Unavailable

2

GRIP, HANDLE (L.H)

1E6-26241-00-00

$28.87

3

LEVER HOLDER ASSEMBLY 1

214-82910-06-00

Unavailable

4

HOLDER, LEVER (L.H)

214-82911-01-00

$45.93

5

LEVER(L.H)

214-83912-00-00

$18.18

6

BOLT, HEXAGON

97013-06022-00

$1.12

7

WASHER, SPRING

92995-06100-00

$2.95

8

BOLT(3GB)

90109-061F3-00

$4.51

9

NUT, SELF-LOCKING

95617-06100-00

$2.17

10

LEVER HOLDER ASSEMBLY 2

233-82920-04-00

Unavailable

11

HOLDER, LEVER (R.H)

233-82921-31-00

$55.57

12

LEVER(R.H)

233-83922-30-00

$18.00

13

BOLT, HEXAGON

97013-06022-00

$1.12

14

WASHER, SPRING

92995-06100-00

$2.95

15

BOLT(3GB)

90109-061F3-00

$4.51

16

NUT, SELF-LOCKING

95617-06100-00

$2.17

17

SWITCH, HANDLE 1

1R6-83976-01-00

Unavailable

18

TUBE, GUIDE.

434-26243-00-00

Unavailable

19

RING, LEAF

1M1-26249-01-00

Unavailable

20

GRIP (R.H)

1A0-26242-01-00

Unavailable

21

CABLE, THROTTLE 1

2J5-26311-01-00

Unavailable

22

NUT, HEXAGON

90170-10038-00

Unavailable

23

NUT

90179-08030-00

Unavailable

24

BOLT

90123-08002-00

Unavailable

25

CABLE, CLUTCH

598-26335-01-00

Unavailable

26

COVER, LEVER

498-26372-00-00

Unavailable

27

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

28

CABLE, BRAKE

2J5-26341-00-00

Unavailable

29

COVER, LEVER

498-26372-00-00

Unavailable

30

BOLT (109-26345-00)

90123-06011-00

Unavailable

31

NUT (109-26344-00)

90179-06143-00

Unavailable

32

BAND, SWITCH CORD

437-83936-01-00

Unavailable

33

END, WIRE

164-26363-00-00

Unavailable
