1977 Yamaha YZ80D_E_F (YZ80D) Generator Diagram

← All diagrams

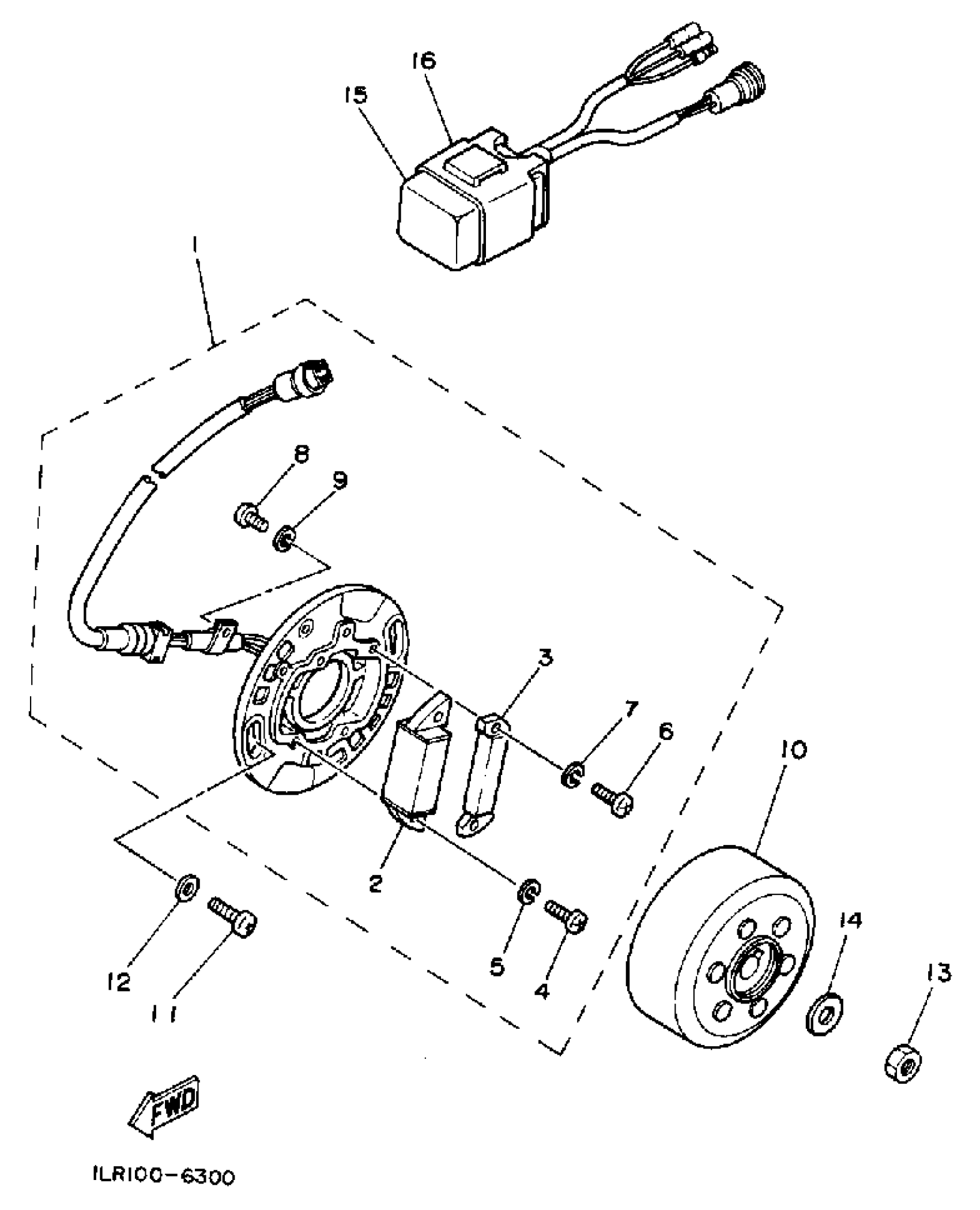

Find the part on the Generator diagram for your 1977 Yamaha YZ80D_E_F (YZ80D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha YZ80D_E_F (YZ80D) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STATOR ASSEMBLY

1LR-85510-20-00

1
Out of stock

2

. COIL SOURCE 2

39K-85512-20-00

1
Out of stock

3

. COIL, PULSER

39K-85580-20-00

1
Out of stock

4

SCREW, PAN HEAD

98517-04025-00

1

$2.94

In stock

5

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

6

SCREW, PAN HEAD(GA5)

98580-04014-00

1

$2.78

In stock

7

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

8

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

9

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

10

ROTOR ASSEMBLY

39K-85550-20-00

1
Out of stock

11

SCREW, PAN HEAD

98580-06016-00

1

$2.90

In stock

12

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

13

NUT(3BM)

95314-10600-00

1

$1.74

In stock

14

WASHER, PLATE (3L6)

90201-10774-00

1

$6.25

In stock

15

CDI UNIT ASSEMBLY

1LR-85540-20-00

1
Out of stock

16

BAND

2A7-85546-00-00

—

$20.40

In stock
