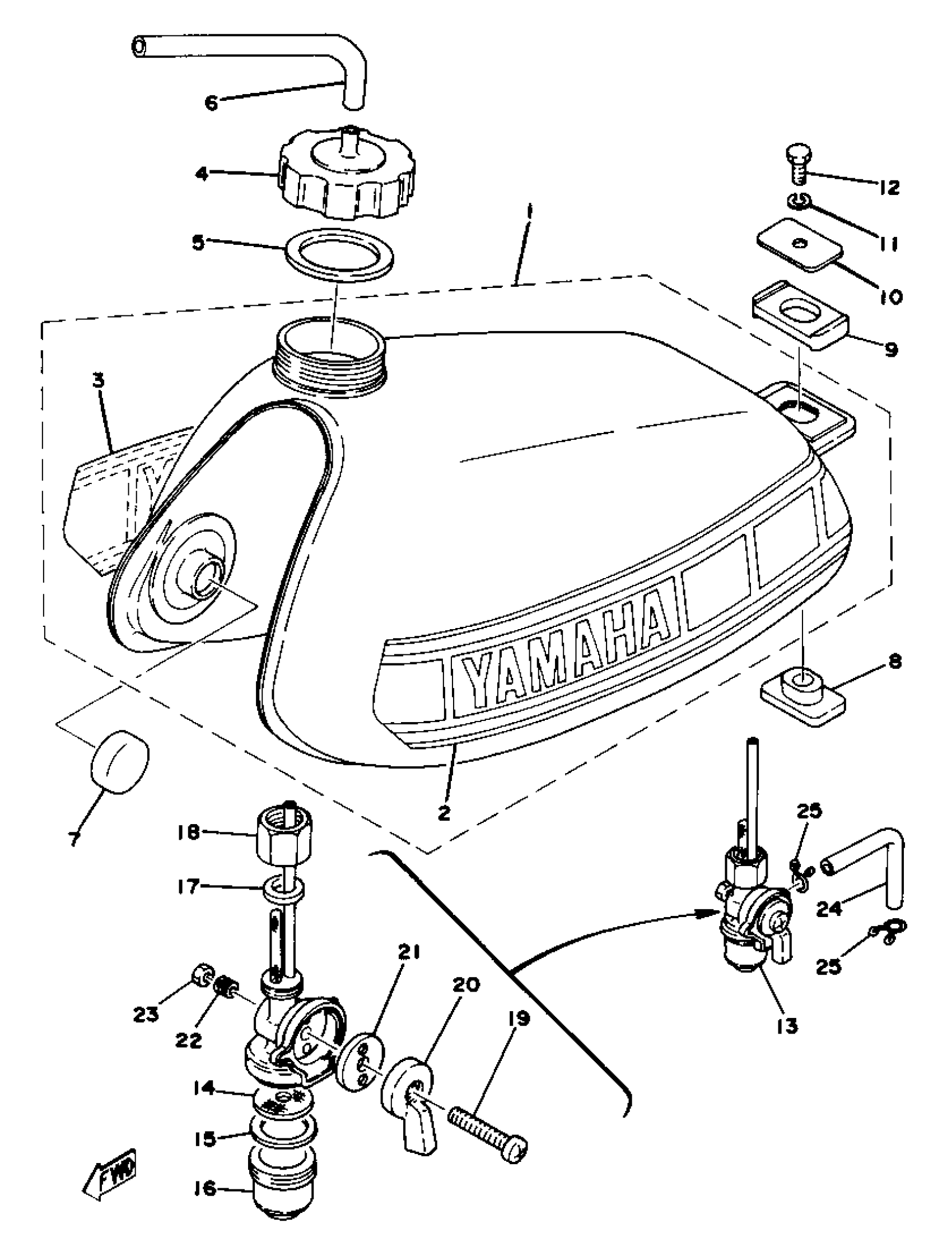

Yamaha YZ80D (YZ80D_E_F) 1977 FUEL TANK YZ80E F Diagram

FUEL TANK

(2J5-24110-00-01)

Unavailable

FUEL TANK

(2X6-24110-00-01)

Unavailable

. GRAPHIC, FUEL TNK 1

2J5-24244-00-00

Unavailable

. GRAPHIC, FUEL TNK 2

2J5-24245-00-00

Unavailable

BODY, CAP

2A6-24611-00-00

Unavailable

PACKING, CAP

1W1-24612-00-00

$9.99

HOSE (L420)

90445-092K1-00

$12.49

DAMPER, LOCATING(1)

122-24181-00-00

$7.99

DAMPER, LOCATING 1

1K8-24181-00-00

Unavailable

DAMPER, LOCATING

1A0-24181-00-00

$6.99

WASHER, SPECIAL

1A0-24186-00-00

$5.49

WASHER, SPECIAL SHAPE

90209-06139-00

Unavailable

WASHER, SPRING

92995-06100-00

Unavailable

BOLT (661)

97013-06012-00

$5.60

FUEL COCK ASSY

367-24500-04-00

Unavailable

. NET, FILTER 2

355-24515-00-00

Unavailable

GASKET

102-24522-02-00

Unavailable

. CUP, FILTER

122-24521-00-00

Unavailable

GASKET, NUT

122-24532-00-00

Unavailable

. NUT

603-24531-01-00

Unavailable

SCREW, PAN HEAD

98517-05030-00

Unavailable

LEVER, COCK

(355-24524-01-00)

Unavailable

VALVE

355-24523-00-00

Unavailable

WASHER, WAVE

(355-24518-00-00)

Unavailable

NUT, HEXAGON (663)

95380-05600-00

Unavailable

HOSE (L420)

90445-092K1-00

$12.49

HOSE (L420)

90445-092K1-00

$12.49

CLIP 101235600

90467-08003-00

Unavailable
