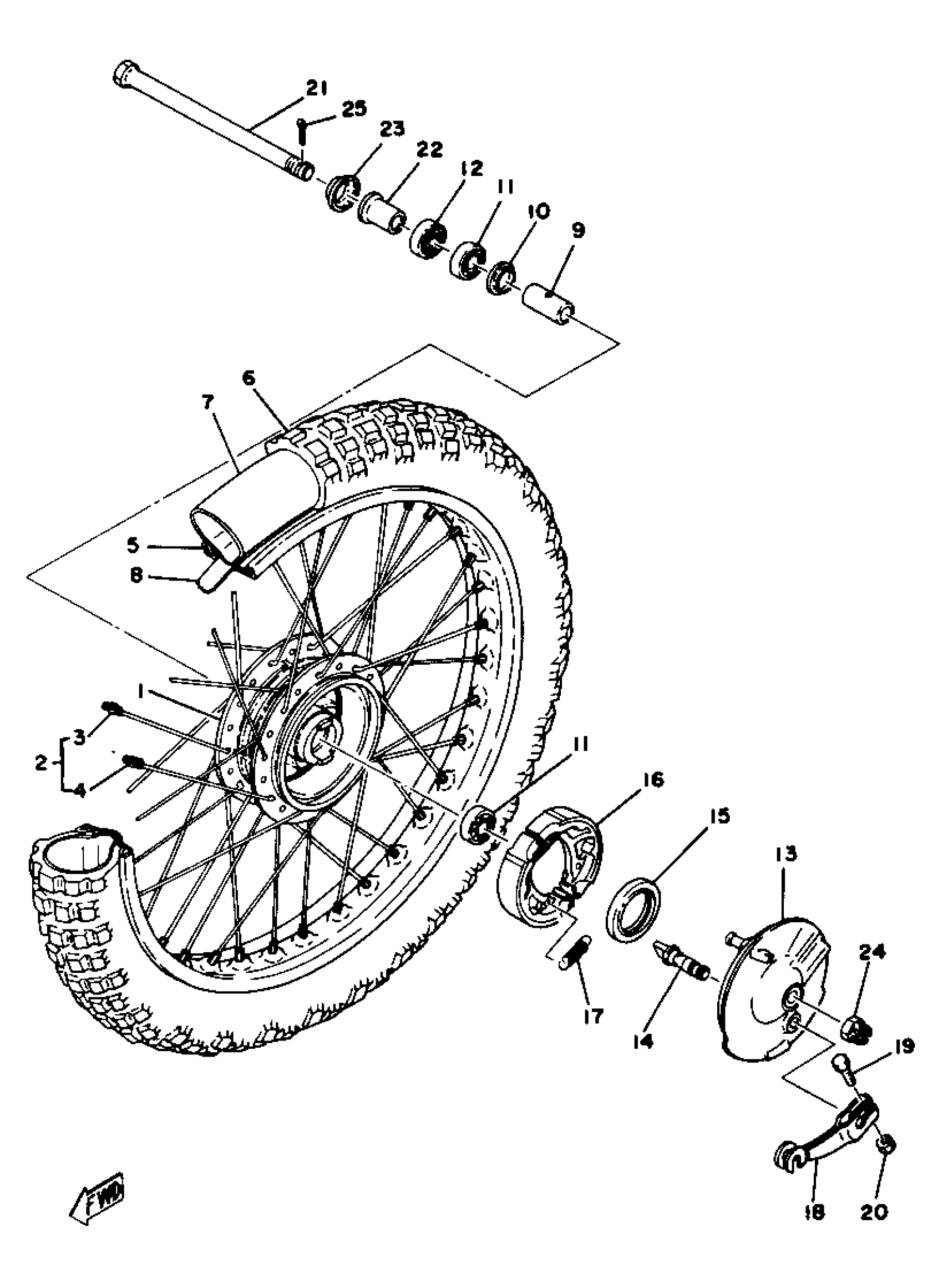

Yamaha YZ80D (YZ80D_E_F) 1977 FRONT WHEEL YZ80E F Diagram

#

Description
Price

1

HUB, FRONT

462-25111-01-98

Unavailable

2

SPOKE SET, FRONT

462-25104-00-00

Unavailable

3

SPOKE SET, INNER 1

(462-25196-90-00)

Unavailable

4

SPOKE SET, OUTER 1

(462-25197-90-00)

Unavailable

5

RIM 1.40X16

(94414-16125-00)

Unavailable

5

RIM 1.40X16

(94414-16219-00)

Unavailable

6

250X16 IRC MXGS45F

(94125-16293-00)

Unavailable

7

TUBE 250X16

94225-16048-00

Unavailable

8

BAND, RIM

94330-16058-00

$20.99

9

SPACER

90560-12138-00

Unavailable

10

FLANGE, SPACER 1

462-25115-00-00

Unavailable

11

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$30.99

12

OIL SEAL (18X28X8-462)

93106-18013-00

$11.49

13

PLATE, BRAKE SHOE

2J5-25121-00-98

Unavailable

14

CAMSHAFT

1YT-25351-00-00

Unavailable

15

OIL SEAL

93106-40001-00

Unavailable

16

BRAKESHOE SET-2PCS

451-W2535-00-00

Unavailable

17

SPRING TENSION 451251330000

90506-14081-00

Unavailable

18

LEVER, CAM SHAFT

451-25155-00-00

Unavailable

19

BOLT, HEXAGON (462)

90101-06291-00

Unavailable

20

NUT, HEXAGON

95380-06600-00

Unavailable

21

SHAFT, WHEEL (462)

90102-12015-00

Unavailable

22

COLLAR (12T)

90387-126F8-00

Unavailable

23

COVER, HUB DUST

462-25118-00-00

Unavailable

24

NUT CASTLE(481)

90171-12005-00

Unavailable

25

PIN, COTTER

91490-30030-00

Unavailable
