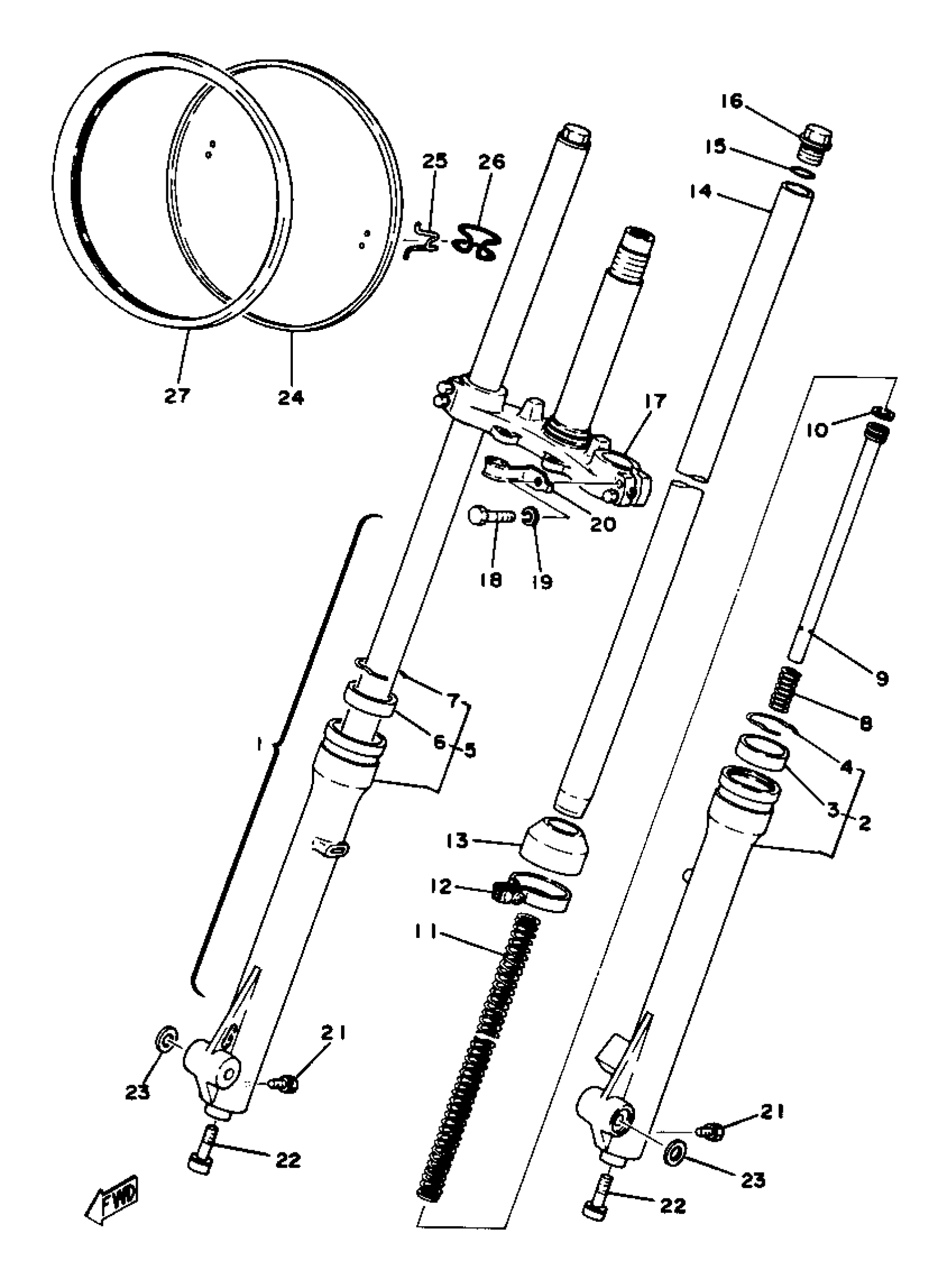

Yamaha YZ80D (YZ80D_E_F) 1977 FRONT FORK YZ80E Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY

(2J5-23101-00-00)

Unavailable

1

SPRING, FRONT FORK

(2J5-23141-70-00)

Unavailable

2

FORK UNIT ASSEMBLY

(2J5-23130-00-38)

Unavailable

3

OIL SEAL (5R6)

93110-27010-00

Unavailable

4

CLIP, OIL SEAL

(2J5-23156-00-00)

Unavailable

5

FORK UNIT ASSEMBLY 2

(2J5-23140-00-38)

Unavailable

6

OIL SEAL (5R6)

93110-27010-00

Unavailable

7

CLIP, OIL SEAL

(2J5-23156-00-00)

Unavailable

8

SPRING, REBOUND

2J5-23151-00-00

$7.99

9

SEAT, SPRING LOWER

(2J5-23143-00-00)

Unavailable

10

RING, PISTON

2J5-23157-00-00

$7.99

11

SPRING, FRONT FORK

(2J5-23141-00-00)

Unavailable

12

HOLDER, CABLE 1

(2J5-23318-00-00)

Unavailable

13

SEAL,DUST

462-23144-02-00

Unavailable

14

INNER TUBE 1

(2J5-23110-00-00)

Unavailable

15

O-RING(36Y)

93210-17570-00

Unavailable

16

BOLT, CAP

(2J5-23111-00-00)

Unavailable

17

UNDER BRACKET

(2J5-23340-60-33)

Unavailable

18

BOLT(3JP)

97024-08035-00

Unavailable

19

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

20

. HOLDER, CABLE

2J5-23317-01-00

Unavailable

21

PLUG, DRAIN

2A6-23119-00-00

Unavailable

22

BOLT

3M7-23181-00-00

Unavailable

23

. WASHER, SPECIAL

462-23392-02-00

Unavailable

24

PLATE, NUMBER

2J5-23485-00-00

Unavailable

25

STAY, PLATE

431-23486-02-00

Unavailable

26

BAND

2J5-23489-00-00

Unavailable

27

MOLD, NUMBER PLATE

(2J5-23498-00-00)

Unavailable
