Description

Price

1

FRAME

(2J5-21110-70-33)

Unavailable

2

BOLT, FLANGE(8BT)

95817-08095-00

$4.24

3

BOLT, FLANGE

95817-08125-00

$9.49

4

BOLT

90109-08387-00

Unavailable

5

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

6

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

7

COVER, SIDE 1 (2J5-21711-00)

2J5-21711-00-98

Unavailable

8

SCREW, PAN

98507-06014-00

$8.49

9

WASHER, PLATE

90201-06380-00

$0.60

10

SEAL, RIGHT SIDE COVER

2J5-21732-00-00

$5.49

11

DAMPER, SIDE COVER (437)

90480-12053-00

$7.49

12

COVER, SIDE 2 (2J5-21721-00)

2J5-21721-00-98

Unavailable

13

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

14

WASHER, SPRING

92995-06100-00

Unavailable

15

WASHER, PLATE

90201-06380-00

$0.60

16

TOOL KIT

(2J5-28100-00-00)

Unavailable

17

SPRING SEAT WRENCH

(1M1-28137-00-00)

Unavailable

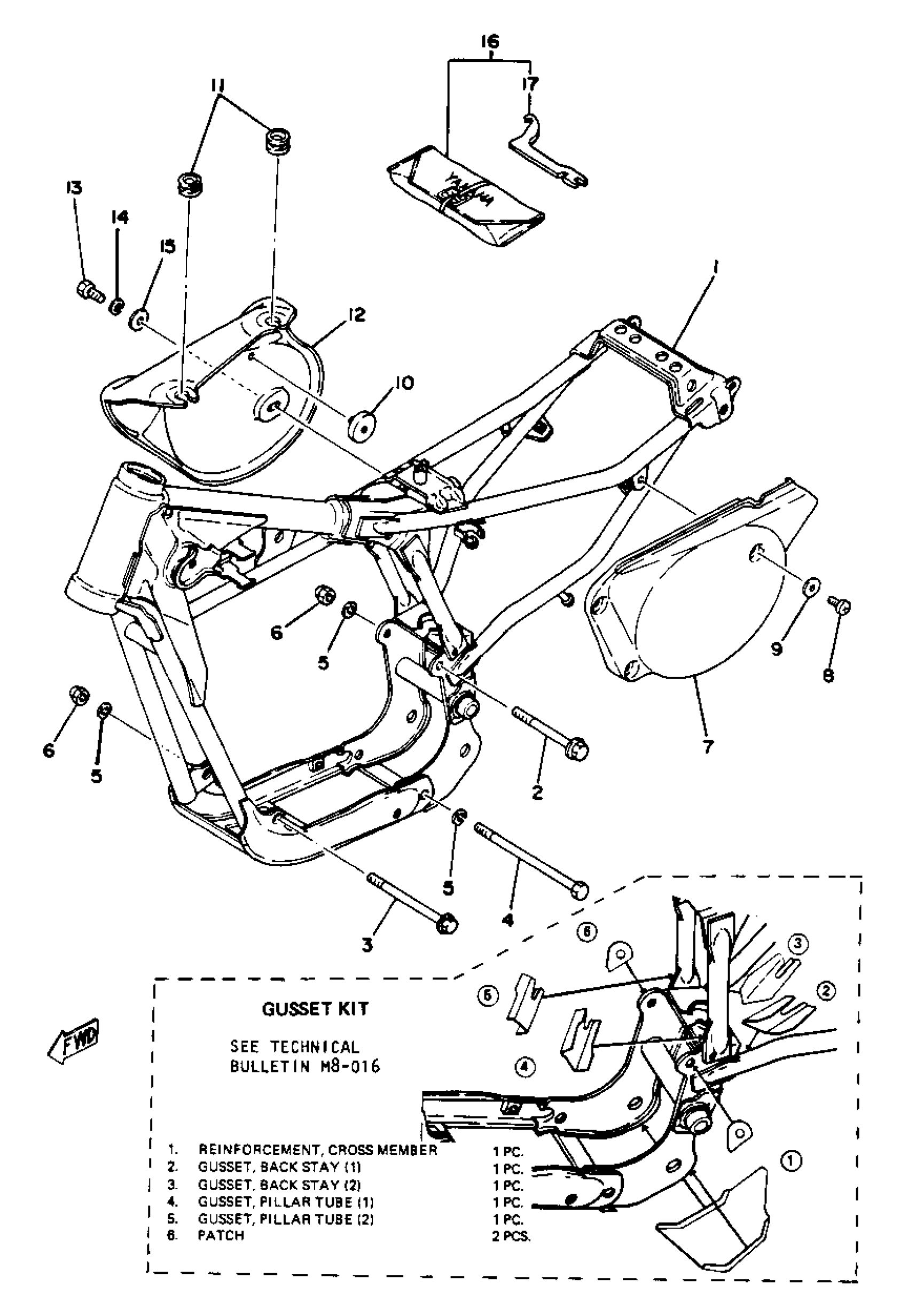

Yamaha YZ80D (YZ80D_E_F) 1977 FRAME SIDE COVER YZ80E Diagram

FRAME

BOLT, FLANGE(8BT)

BOLT, FLANGE

BOLT

YBS67-8 WASHER, SPRING

NUT, SELF-LOCKING (3Y2)

COVER, SIDE 1 (2J5-21711-00)

SCREW, PAN

WASHER, PLATE

SEAL, RIGHT SIDE COVER

DAMPER, SIDE COVER (437)

COVER, SIDE 2 (2J5-21721-00)

BOLT, HEXAGON DEEP RECESS

WASHER, SPRING

WASHER, PLATE

TOOL KIT

SPRING SEAT WRENCH
