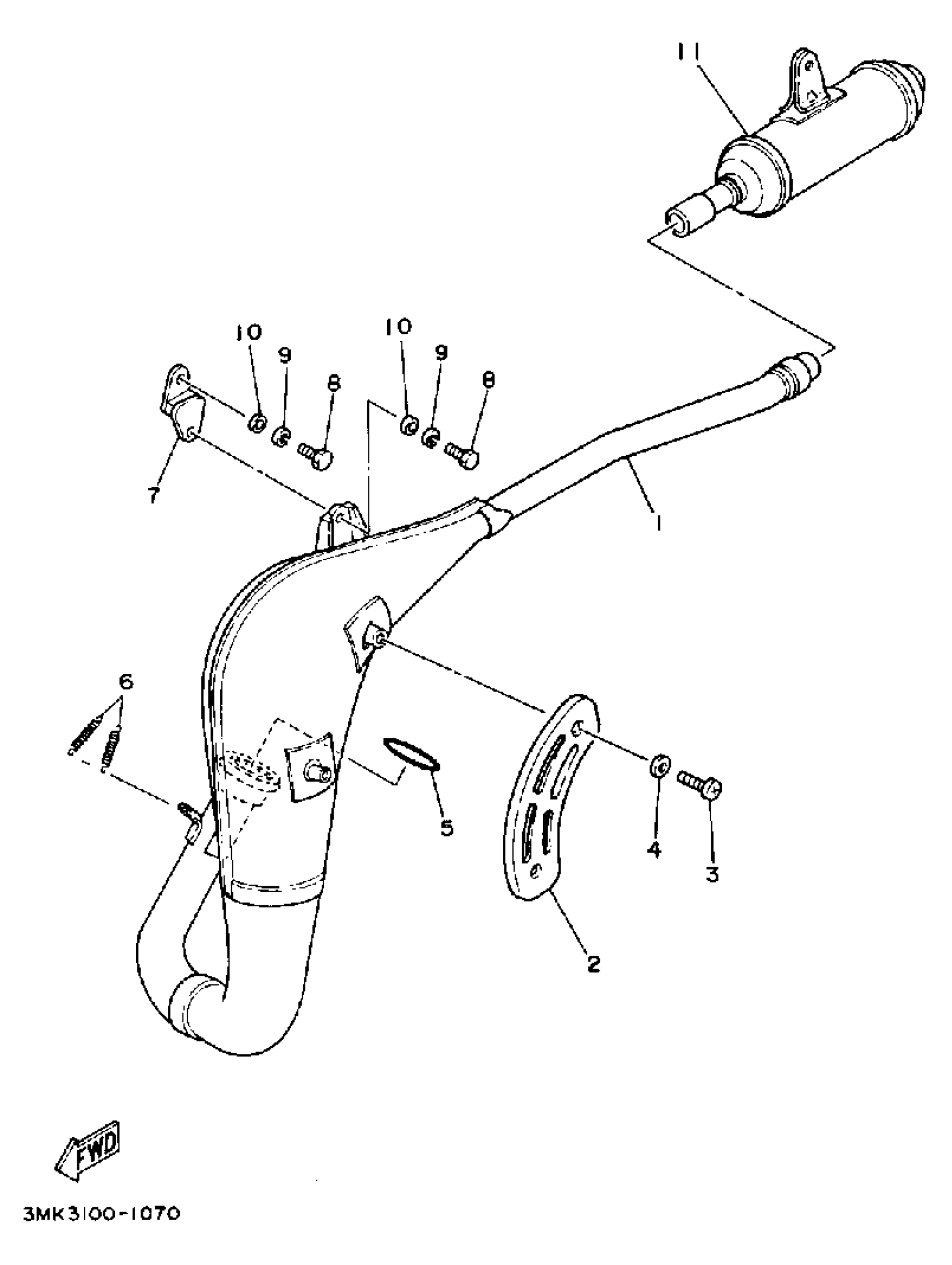

Yamaha YZ80D (YZ80D_E_F) 1977 EXHAUST Diagram

EXHAUST PIPE ASSEMBLY LASSEMBLY 1

2HF-14610-01-00

Unavailable

PROTECTOR, MUFF 1

39K-14718-00-00

Unavailable

SCREW, BINDING

98907-06008-00

$6.35

WASHER, PLATE(3MB)

90202-05187-00

$1.49

O-RING(2HF)

93210-40745-00

$11.32

SPRING, TENSION (1W4)

90507-20030-00

$11.98

STAY, MUFFLER 1

565-14771-01-00

$15.90

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.81

WASHER, SPRING

92995-06100-00

$2.83

WASHER, PLAIN (646)

92990-06600-00

$2.43

SILENCER, EXHAUST

1LR-14753-00-00

Unavailable
