1977 Yamaha YZ80D_E_F (YZ80D) Crankcase Diagram

← All diagrams

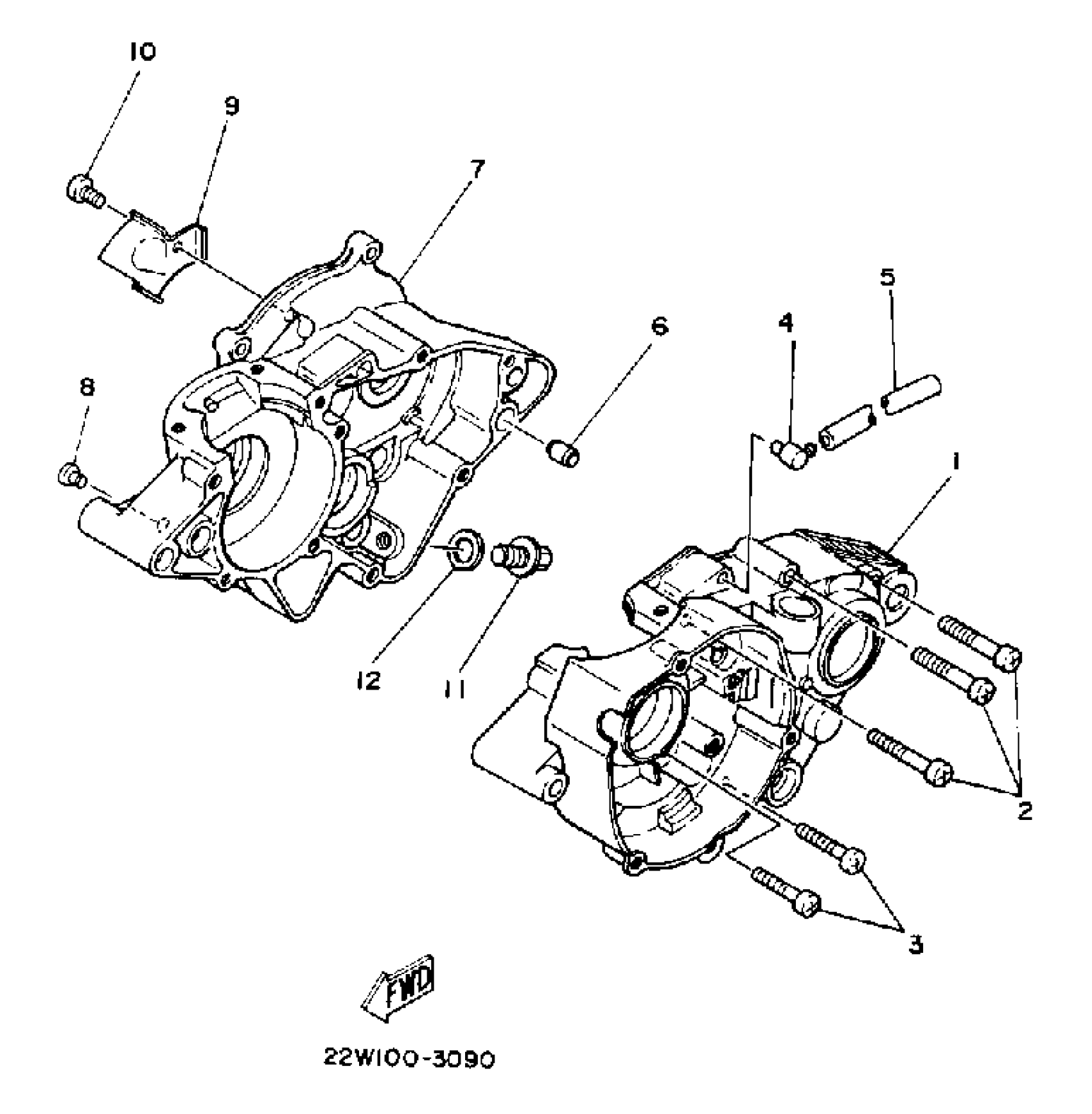

Find the part on the Crankcase diagram for your 1977 Yamaha YZ80D_E_F (YZ80D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha YZ80D_E_F (YZ80D) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE 1

2VE-15111-00-00

1
Out of stock

2

SCREW PAN HEAD

98580-06545-00

1

$5.78

In stock

3

SCREW, PAN HEAD(6H4)

97885-06035-00

1

$6.38

In stock

4

CONNECTOR, SUCTION PIPE

353-13115-01-00

1

$5.26

In stock

5

HOSE (L340)

90445-08684-00

1

$3.37

In stock

6

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

7

CRANKCASE 2

2VE-15121-00-00

1
Out of stock

8

PLUG (17J)

90338-07124-00

1

$8.55

In stock

9

PLATE

5X2-15113-01-00

1
Out of stock

10

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

11

1

$2.82

In stock

12

GASKET (3JD1)

90430-12207-00

1

$6.77

In stock
Crankcase Cover 1 →
