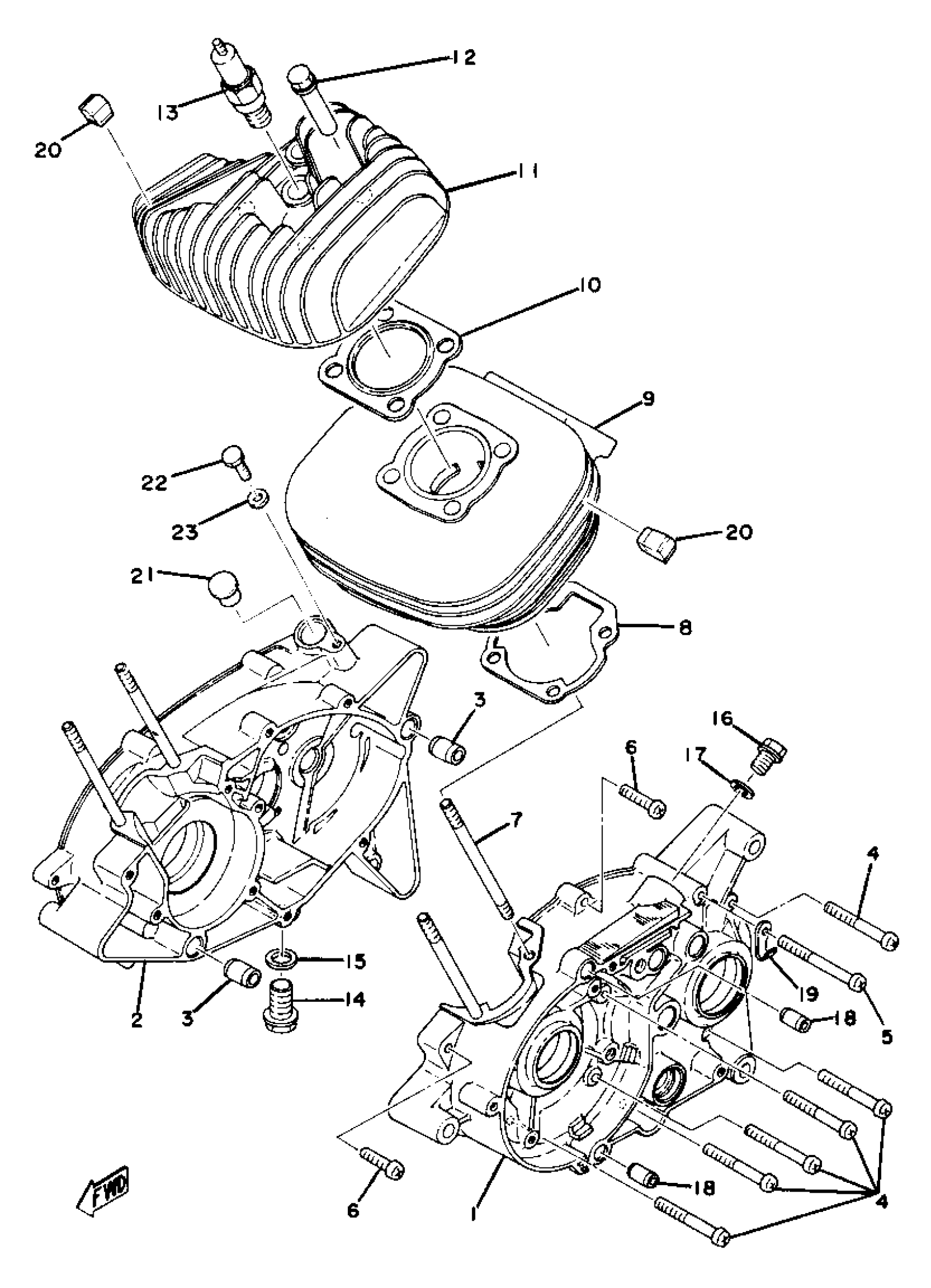

Yamaha YZ80D (YZ80D_E_F) 1977 CYLINDER CRANKCASE YZ80D Diagram

#

Description
Price

1

CRANKCASE 1

(598-15111-00-98)

Unavailable

2

CRANKCASE 2

(598-15121-01-98)

Unavailable

3

PIN, DOWEL

99530-12016-00

$4.89

4

SCREW PAN HEAD

98580-06550-00

$8.49

5

SCREW, PANHED (GC2)

98580-06555-00

Unavailable

6

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

7

BOLT, STUD

90116-07031-00

Unavailable

8

GASKET, CYLINDER

367-11351-01-00

$6.99

9

CYLINDER 1

(1T0-11311-00-00)

Unavailable

10

GASKET, CYLINDER HEAD 1

598-11181-00-00

Unavailable

11

HEAD, CYLINDER 1

(1T0-11111-00-00)

Unavailable

12

NUT, SPEC''L SHAPE

90179-07203-00

Unavailable

13

BR8ES NGK SCREW TOP 4PK

BR8-ES000-00-00

Unavailable

14

PLUG STRAIGTSCREW 132153510000

90340-12005-00

$8.49

15

GASKET (3JD1)

90430-12207-00

$7.99

16

PLUG STRAIGTSCREW 367185880000

90340-10003-00

Unavailable

17

GASKET (5R6)

90430-10171-00

Unavailable

18

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

19

CLAMP

(90465-06278-00)

Unavailable

20

ABSORBER

434-11161-00-00

Unavailable

21

PLUG(12Y)

90338-16029-00

Unavailable

22

BOLT(3JP)

97017-06010-00

Unavailable

23

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable
