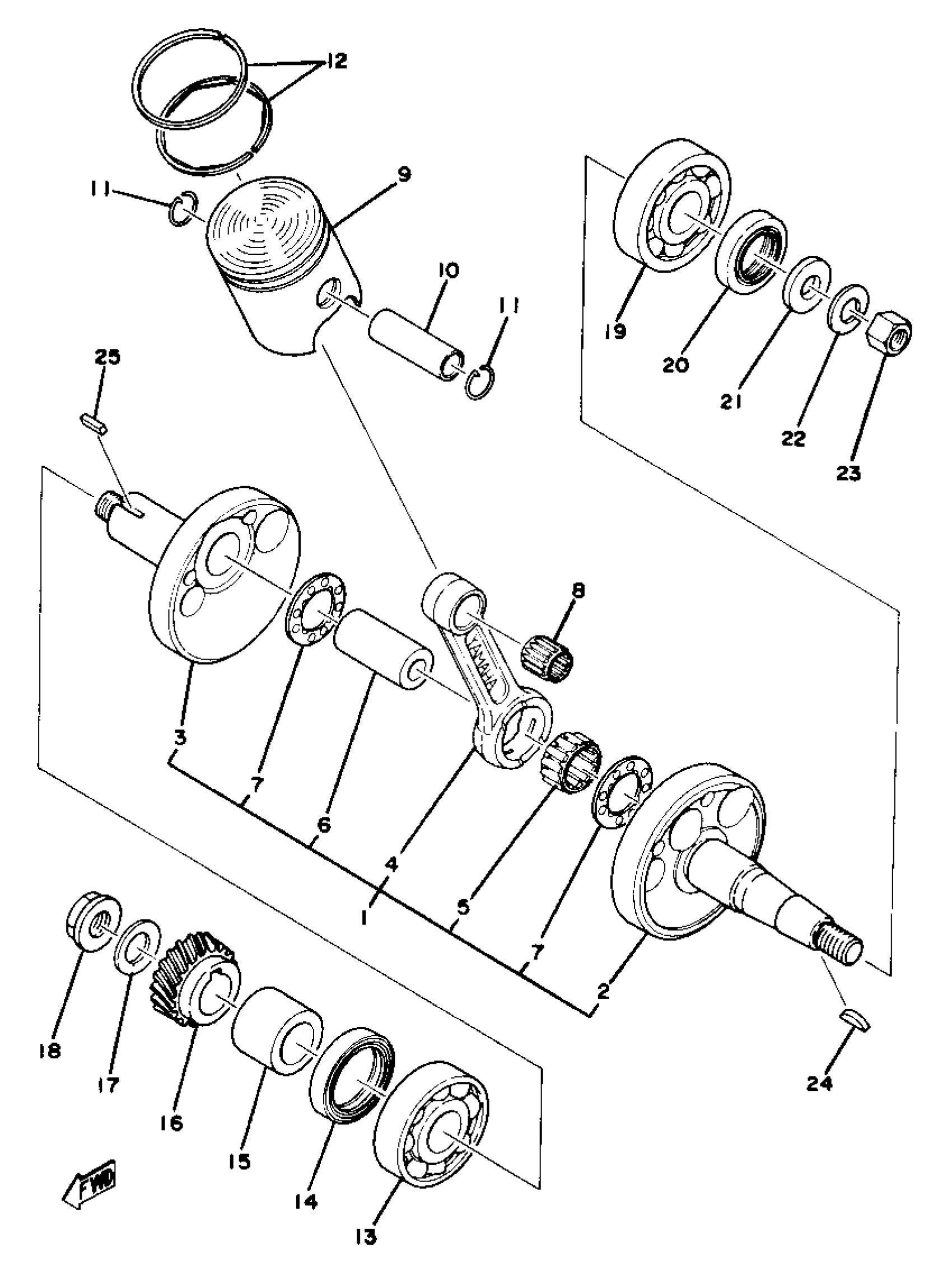

Yamaha YZ80D (YZ80D_E_F) 1977 CRANKSHAFT PISTON YZ80E Diagram

#

Description
Price

1

CRANKSHAFT ASSEMBLY

2J5-11400-00-00

Unavailable

1

. CONNECTING ROD ASSEMBLY

2J5-11650-00-00

Unavailable

2

CRANK 1

(2J5-11412-00-00)

Unavailable

3

CRANK 2

(2J5-11422-00-00)

Unavailable

4

ROD, CONNECTING

3R1-11651-01-00

$125.99

5

BEARING, CYLINDRICAL(3TU)

93310-418C4-00

$48.99

6

. PIN, CRANK 1

3R1-11681-00-00

Unavailable

7

WASHER 132116850000

90209-18112-00

$10.49

8

BRG,CYL-CAL ROLLER 5G TM

93310-11268-00

$35.99

9

PISTON KIT STD

2J5-11630-00-00

Unavailable

9

PISTON KIT 1ST

2J5-11630-10-00

Unavailable

9

PISTON KIT 2ND

2J5-11630-20-00

Unavailable

9

PISTON KIT 3RD

(2J5-11630-30-00)

Unavailable

9

PISTON KIT 4TH

2J5-11630-40-00

Unavailable

9

PISTON STD

2J5-11631-00-97

Unavailable

9

PISTON 1 O/S 0.25

2J5-11635-00-00

Unavailable

9

PISTON 2 O/S 0.50

2J5-11636-00-00

Unavailable

9

PISTON 3 O/S 0.75

2J5-11637-00-00

Unavailable

9

PISTON 4 O/S 1.00

2J5-11638-00-00

Unavailable

10

PIN, PISTON

527-11633-00-00

Unavailable

11

CIRCLIP 132116340000

93450-13022-00

Unavailable

12

PISTON RINGSET STD

5T8-11603-00-00

Unavailable

12

PISTON,RINGSET 1ST

5T8-11604-00-00

Unavailable

12

PISTON RINGSET 2ND

5T8-11605-00-00

Unavailable

12

PISTON RINGSET 3RD

5T8-11606-00-00

Unavailable

12

PISTON RINGSET 4TH

5T8-11607-00-00

Unavailable

13

BEARING(1GJ)

93306-20458-00

Unavailable

14

OIL SEAL (28X40X8-132)

93103-28011-00

Unavailable

15

COLLAR

(90387-20669-00)

Unavailable

16

GEAR, PRI DRIVE

2J5-16111-00-00

Unavailable

17

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

18

NUT(1EE)

90179-12659-00

Unavailable

19

BEARING (30X)

93306-20447-00

Unavailable

20

OIL SEAL, SD-TYPE

93102-22182-00

Unavailable

21

WASHER (492)

90201-12535-00

Unavailable

21

WASHER, PLATE (583)

90201-12593-00

Unavailable

22

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

23

NUT, HEXAGON (525)

90170-12181-00

Unavailable

24

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable

25

KEY, STRAIGHT 3531154600

90282-05005-00

Unavailable
