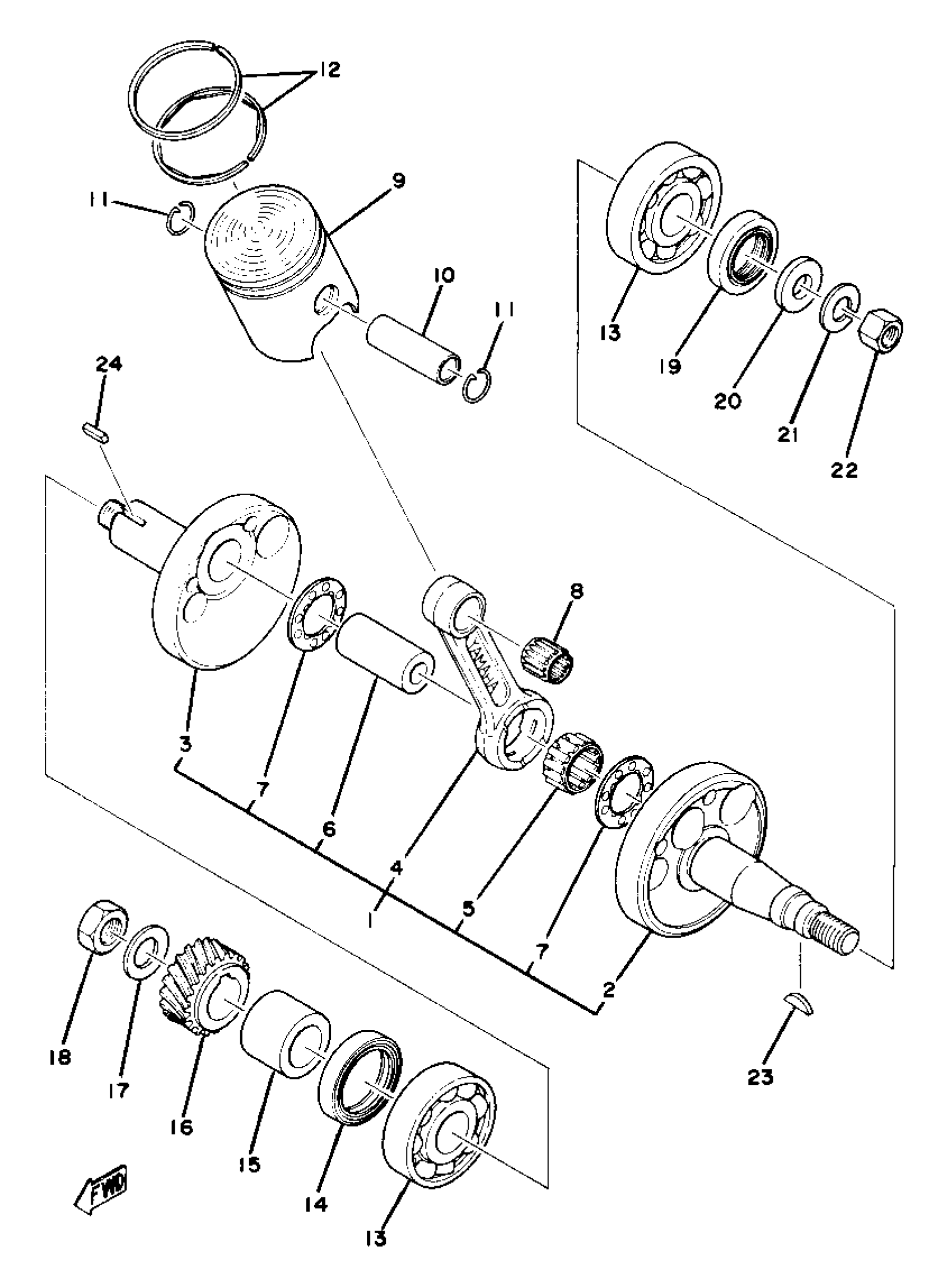

Yamaha YZ80D (YZ80D_E_F) 1977 CRANKSHAFT PISTON YZ80D Diagram

CRANKSHAFT ASSEMBLY

(598-11400-00-00)

Unavailable

. CRANK 1

598-11412-00-00

Unavailable

CRANK 2

(598-11422-00-00)

Unavailable

ROD, CONNECTING

3R1-11651-01-00

$125.99

BEARING, CYLINDRICAL(3TU)

93310-418C4-00

$48.99

PIN, CRANK 1

257-11681-10-00

$29.99

WASHER 132116850000

90209-18112-00

$10.49

BRG,CYL-CAL ROLLER 5G TM

93310-11268-00

$35.99

PISTON KIT STD

(1T0-11630-00-00)

Unavailable

PISTON KIT 1ST

(1T0-11630-10-00)

Unavailable

PISTON KIT 4TH

(1T0-11630-40-00)

Unavailable

PISTON STD

2J5-11631-00-97

Unavailable

PISTON 1 O/S 0.25

2J5-11635-00-00

Unavailable

PISTON 3 O/S 0.75

1T0-11637-00-00

Unavailable

PISTON 4 O/S 1.00

(1T0-11638-00-00)

Unavailable

PISTON 2 O/S 0.50

2J5-11636-00-00

Unavailable

PISTON 2 O/S 0.50

2J5-11636-00-00

Unavailable

PIN, PISTON

527-11633-00-00

Unavailable

CIRCLIP 132116340000

93450-13022-00

Unavailable

PISTON RINGSET STD

5T8-11603-00-00

Unavailable

PISTON,RINGSET 1ST

5T8-11604-00-00

Unavailable

PISTON RINGSET 2ND

5T8-11605-00-00

Unavailable

PISTON RINGSET 3RD

5T8-11606-00-00

Unavailable

PISTON RINGSET 4TH

5T8-11607-00-00

Unavailable

BEARING(1GJ)

93306-20458-00

Unavailable

OIL SEAL (28X40X8-132)

93103-28011-00

Unavailable

COLLAR (4Y2)

90387-205E9-00

Unavailable

GEAR, PRI DRIVE

353-16111-01-00

Unavailable

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

NUT(1EE)

90179-12659-00

Unavailable

OIL SEAL (20X35X7-136)

93102-20009-00

Unavailable

WASHER (492)

90201-12535-00

Unavailable

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

NUT, HEXAGON 98801-12200

90170-12175-00

Unavailable

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable

KEY, STRAIGHT 3531154600

90282-05005-00

Unavailable
