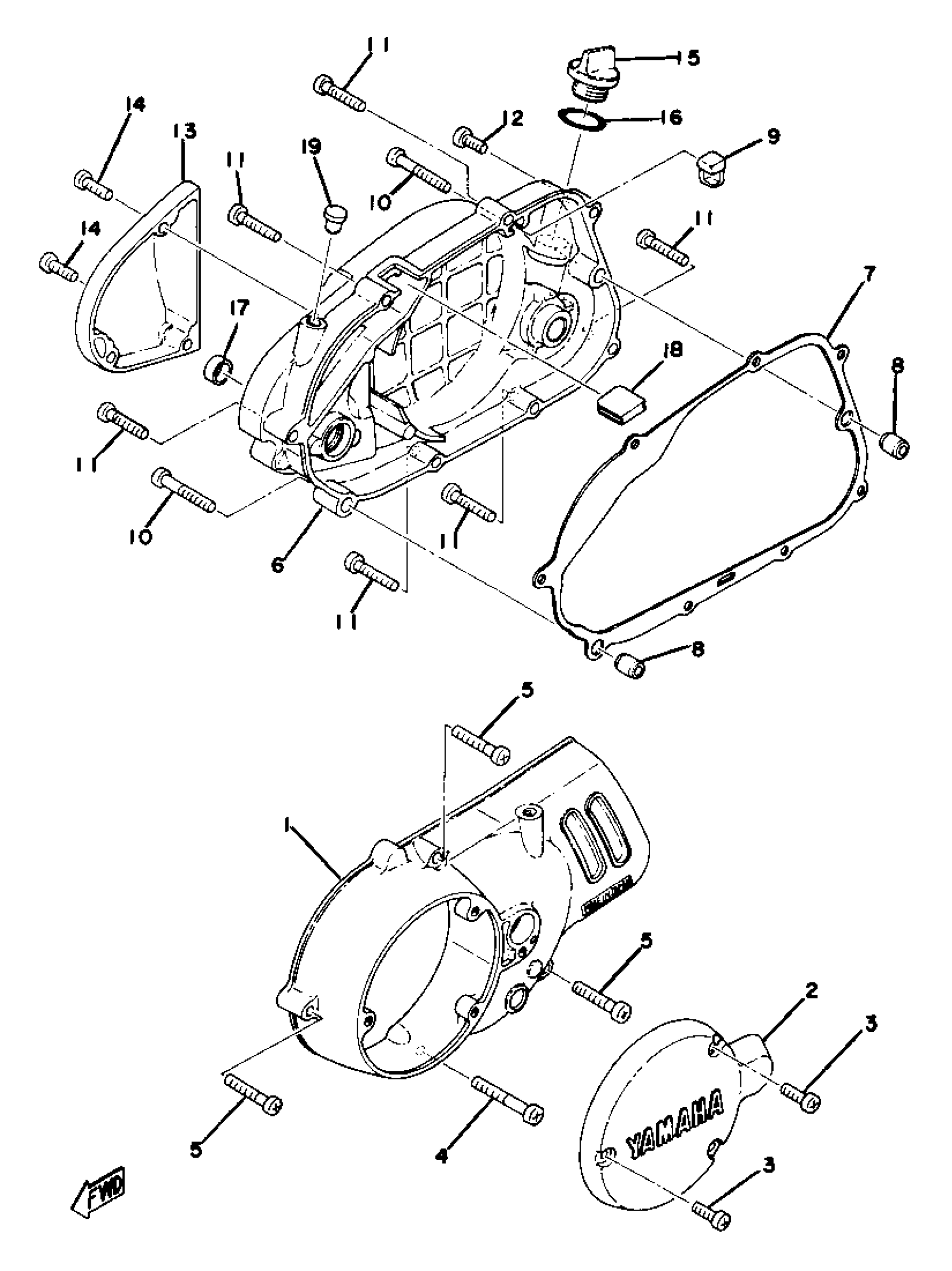

Yamaha YZ80D (YZ80D_E_F) 1977 CRANKCASE COVER YZ80D Diagram

#

Description
Price

1

COVER, CRANKCASE L

353-15411-00-98

Unavailable

2

COVER, GENERATOR

353-15415-00-98

Unavailable

3

SCREW, PAN

98517-06020-00

$8.49

4

SCREW, PAN

98507-06045-00

$3.14

5

SCREW, PAN

98517-06030-00

Unavailable

6

COVER, CRANKCASE R

462-15421-01-98

Unavailable

7

GASKET, CRANKCASE COVER 1

3MT-15451-00-00

$25.99

8

PIN, DOWEL(3VD)

99530-10114-00

$2.55

9

SCRAPER, OIL

353-15437-02-00

Unavailable

10

SCREW, PAN

98507-06040-00

$3.22

11

SCREW, PAN

98517-06030-00

Unavailable

12

SCREW, PAN

98507-06014-00

$8.49

13

COVER, OIL PUMP

462-15416-01-98

Unavailable

14

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

15

PLUG, OIL

3Y1-15363-10-00

$18.49

16

O-RING

93210-21190-00

Unavailable

17

PLUG(12Y)

90338-16029-00

Unavailable

18

PLUG, SPEC''L SHAPE

(90338-15045-00)

Unavailable

19

PLUG (17J)

90338-07124-00

Unavailable
