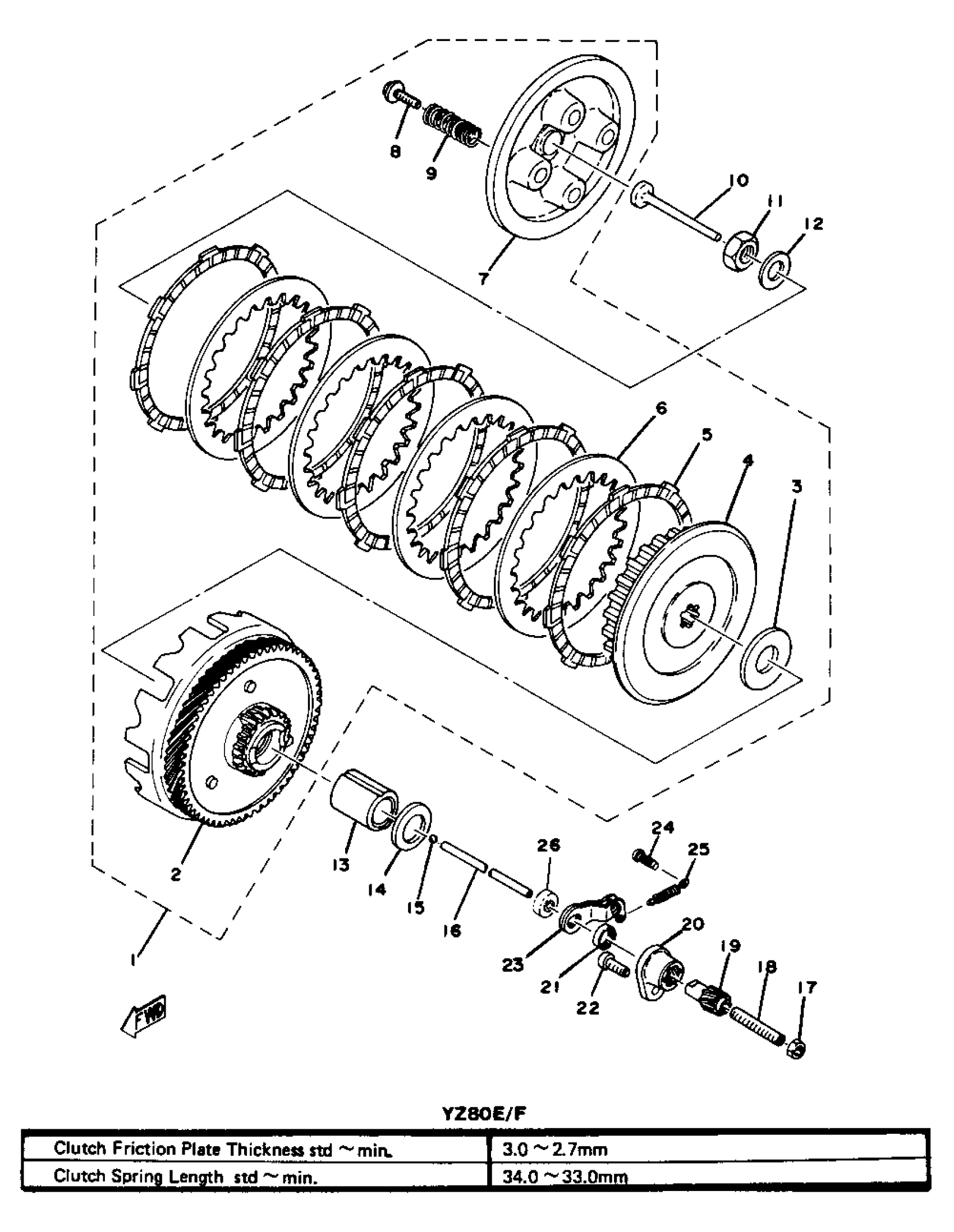

Yamaha YZ80D (YZ80D_E_F) 1977 CLUTCH YZ80E F Diagram

#

Description
Price

1

CLUTCH ASSEMBLY

(2J5-16301-00-00)

Unavailable

2

PRI DRVN GEAR

3R1-16150-00-00

Unavailable

3

PLATE, THRUST

131-16154-00-00

Unavailable

4

BOSS, CLUTCH

1V1-16371-02-00

Unavailable

5

PLATE, FRICTION

598-16321-01-00

$17.49

6

PLATE, CLUTCH 1

1V1-16324-10-00

$22.99

7

PLATE, PRESSURE

598-16351-00-00

Unavailable

8

BOLT, HEXAGON WITH WASHER(353)

90119-05001-00

$8.49

9

SPRING (137-16333-00)

90501-20122-00

$4.99

10

ROD,PUSH (1)

137-16356-00-00

$31.99

11

NUT, HEXAGON 1371637700

90170-12060-00

$9.49

12

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

13

SPACER

90560-17123-00

Unavailable

14

PLATE, THRUST

122-16164-00-00

$7.99

15

BALL

93503-16003-00

$2.72

16

ROD, PUSH

2J5-16357-00-00

Unavailable

16

ROD, PUSH 2

2X6-16357-00-00

Unavailable

17

NUT(650)

95380-06700-00

Unavailable

18

BOLT SET 241163430000

90113-06013-00

Unavailable

19

SCREW, PUSH

241-16341-01-00

Unavailable

20

HOUSING, PUSH SCREW

353-16396-00-00

Unavailable

21

SEAL 0IL (2V7)

93104-10085-00

Unavailable

22

SCREW, PAN

98507-06014-00

Unavailable

23

LEVER, PUSH

451-16342-00-00

Unavailable

24

HOOK, SPRING

132-16346-00-00

Unavailable

25

SPRING TENSION 257163450000

90506-07066-00

Unavailable

26

OIL SEAL(1JY)

93102-04382-00

Unavailable
