Description

Price

1

CLUTCH ASSEMBLY

(1T0-16301-01-00)

Unavailable

2

. PRIMARY DRIVEN GEAR COMP (68T) (2A3-16150-00)

1T0-16150-01-00

Unavailable

3

O-RING (353)

93210-98202-00

$12.49

4

WASHER, PLATE

90201-23315-00

Unavailable

5

PLATE, THRUST

122-16164-00-00

$7.99

6

. BOSS, CLUTCH

353-16371-00-00

Unavailable

7

PLATE, FRICTION

598-16321-01-00

$17.49

8

PLATE, CLUTCH 1

1V1-16324-10-00

$22.99

9

PLATE, PRESSURE

598-16351-00-00

Unavailable

10

BOLT, HEXAGON WITH WASHER(353)

90119-05001-00

$8.49

11

SPRING (137-16333-00)

90501-20122-00

$4.99

12

ROD,PUSH (1)

137-16356-00-00

$31.99

13

NUT, HEXAGON 1371637700

90170-12060-00

$9.49

14

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

15

SPACER

90560-17123-00

Unavailable

16

PLATE, THRUST

122-16164-00-00

$7.99

17

BALL

93503-16003-00

Unavailable

18

ROD, PUSH (2)

353-16357-00-00

Unavailable

19

NUT(650)

95380-06700-00

Unavailable

20

BOLT SET 241163430000

90113-06013-00

Unavailable

21

SCREW, PUSH

241-16341-01-00

Unavailable

22

HOUSING, PUSH SCREW

353-16396-00-00

Unavailable

23

SEAL 0IL (2V7)

93104-10085-00

Unavailable

24

SCREW, PAN

98507-06014-00

Unavailable

25

LEVER, PUSH

451-16342-00-00

Unavailable

26

HOOK, SPRING

132-16346-00-00

Unavailable

27

SPRING TENSION 257163450000

90506-07066-00

Unavailable

28

OIL SEAL(1JY)

93102-04382-00

Unavailable

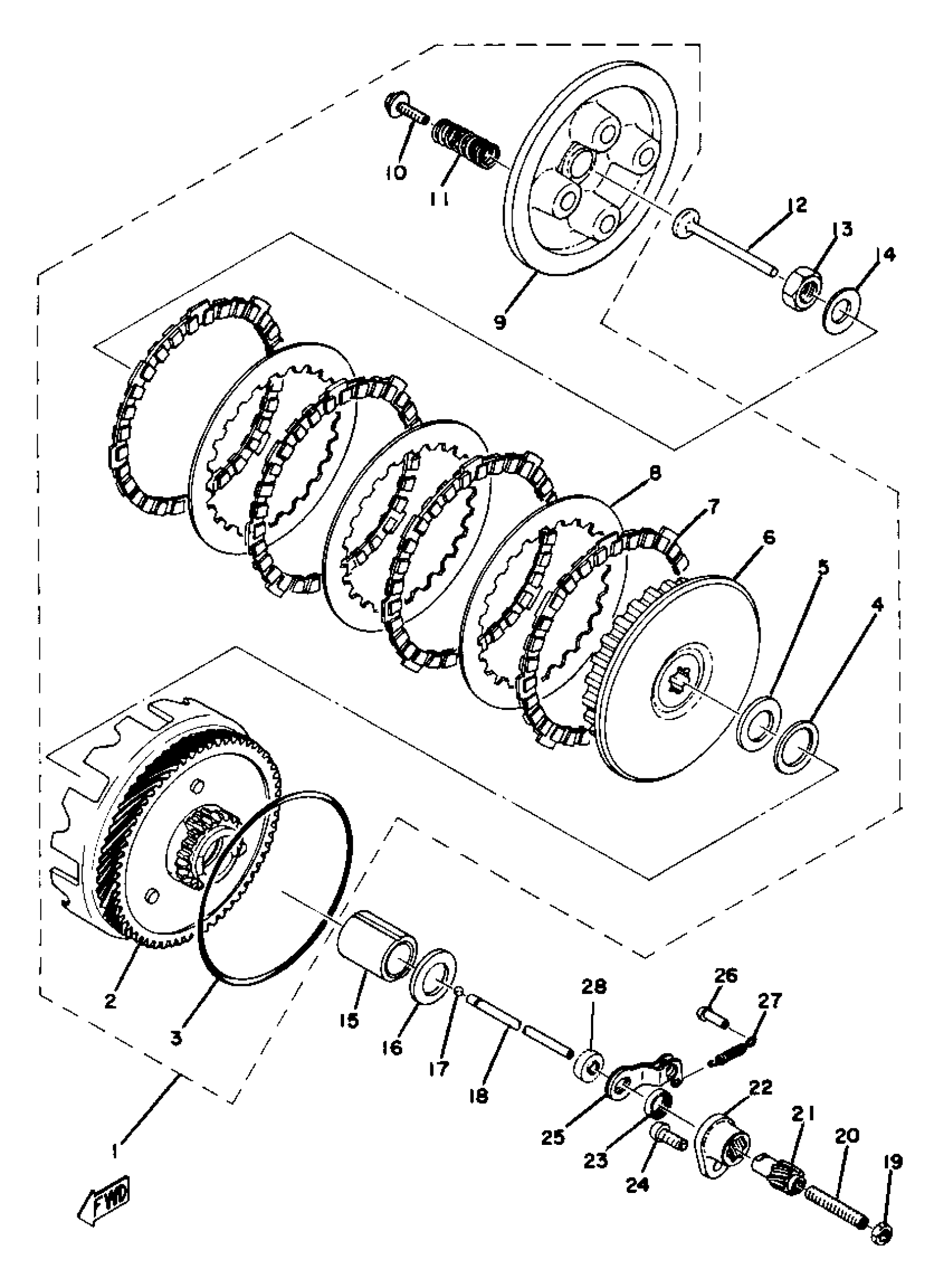

Yamaha YZ80D (YZ80D_E_F) 1977 CLUTCH YZ80D Diagram

CLUTCH ASSEMBLY

. PRIMARY DRIVEN GEAR COMP (68T) (2A3-16150-00)

O-RING (353)

WASHER, PLATE

PLATE, THRUST

. BOSS, CLUTCH

PLATE, FRICTION

PLATE, CLUTCH 1

PLATE, PRESSURE

BOLT, HEXAGON WITH WASHER(353)

SPRING (137-16333-00)

ROD,PUSH (1)

NUT, HEXAGON 1371637700

WASHER, CONICAL SPRING 12,2 X

SPACER

PLATE, THRUST

BALL

ROD, PUSH (2)

NUT(650)

BOLT SET 241163430000

SCREW, PUSH

HOUSING, PUSH SCREW

SEAL 0IL (2V7)

SCREW, PAN

LEVER, PUSH

HOOK, SPRING

SPRING TENSION 257163450000

OIL SEAL(1JY)
