1975 Yamaha YZ80B (YZ80B) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1975 Yamaha YZ80B (YZ80B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

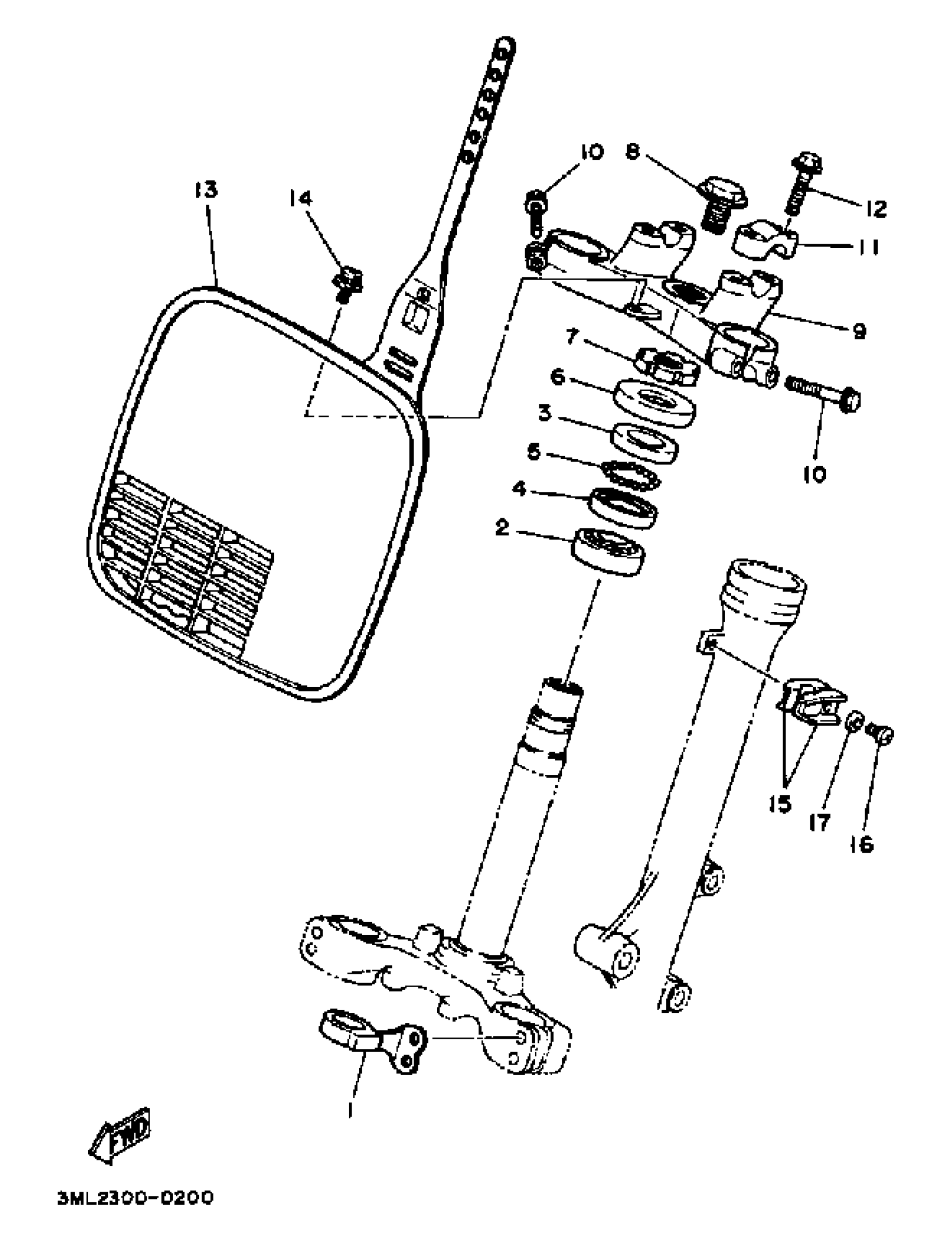

1975 Yamaha YZ80B (YZ80B) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GUIDE, WIRE

3R4-23389-00-00

1
Out of stock

2

BEARING(4ES)

93332-00079-00

1

$61.86

In stock

3

RACE, BALL 1

BP2-23411-00-00

1

$8.40

In stock

4

RACE, BALL 2

BP2-23412-00-00

1

$5.71

In stock

5

BALL

93503-16003-00

1

$2.14

In stock

6

COVER BALL RACE

10V-23416-01-00

—
Out of stock

7

NUT

90179-25004-00

1

$20.78

In stock

8

BOLT (2A2)

90105-14102-00

1

$5.14

In stock

9

CROWN, HANDLE

22W-23435-00-35

1
Out of stock

10

BOLT, FLANGE

95817-08035-00

1

$6.68

In stock

11

HOLDER, HANDLE UPPER

3SP-23441-00-00

1
Out of stock

12

BOLT, FLANGE(6TA)

95817-08030-00

1

$6.17

In stock

13

PLATE, NUMBER

3MK-23485-00-00

1
Out of stock

14

SCREW, W/WASHER (4L0)

90159-06060-00

1

$6.17

In stock

15

CLAMP (39E)

90465-14242-00

1

$31.72

In stock

16

BOLT, SOCKET

91314-06016-00

—

$6.17

In stock

17

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock
