1975 Yamaha YZ80B (YZ80B) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1975 Yamaha YZ80B (YZ80B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

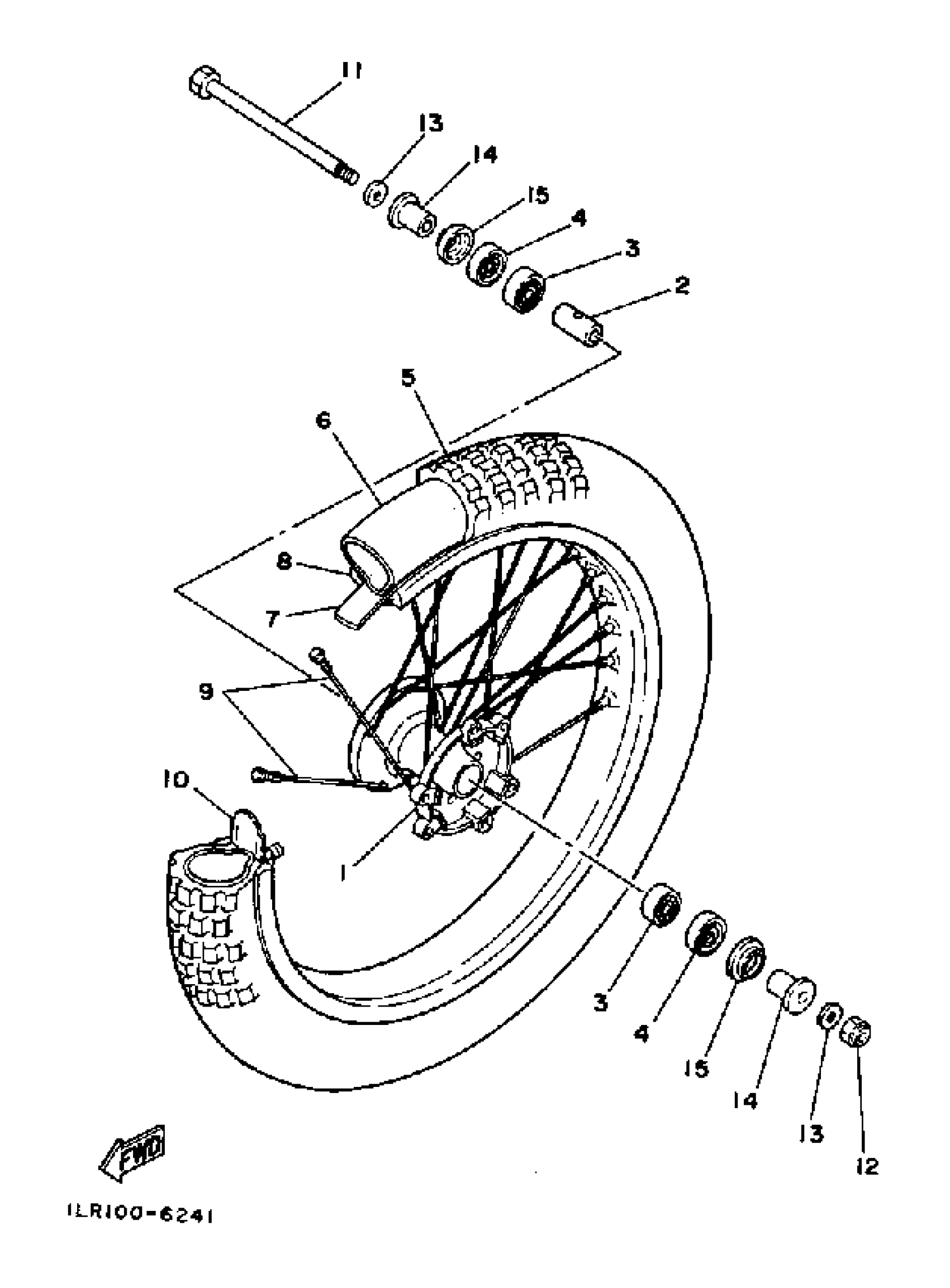

1975 Yamaha YZ80B (YZ80B) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

1LR-25111-00-98

1
Out of stock

2

SPACER(39K)

90560-12257-00

1
Out of stock

3

BRG,R-B 6001 28MM 28G KY

93306-00105-00

1

$25.40

In stock

4

OIL SEAL (18X28X8-462)

93106-18013-00

1

$9.22

In stock

5

70/100-17 M6A IRC (70/100-17)

94107-177R6-00

1
Out of stock

6

TUBE 80/80-17 (80/80-17)

94208-17255-00

1
Out of stock

7

BAND, RIM (3.25-17) (3Y0)

94332-17112-00

1
Out of stock

8

RIM 1.4 (1.40-17)

94414-17428-00

1
Out of stock

9

SPOKE SET, FRONT

1LR-25104-00-00

1
Out of stock

10

SPACER, BEAD

1T1-25194-00-00

—

$53.98

In stock

11

AXLE, WHEEL

22W-25181-01-00

1

$29.29

In stock

12

NUT, SELF-LOCKING(1KH)

90185-12134-00

1

$10.11

In stock

13

WASHER, PLATE

90201-12047-00

1

$7.54

In stock

14

COLLAR (12T)

90387-126F8-00

1

$19.00

In stock

15

COVER, HUB DUST

462-25118-00-00

1
Out of stock
