1975 Yamaha YZ80B (YZ80B) Side Cover Diagram

← All diagrams

Find the part on the Side Cover diagram for your 1975 Yamaha YZ80B (YZ80B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

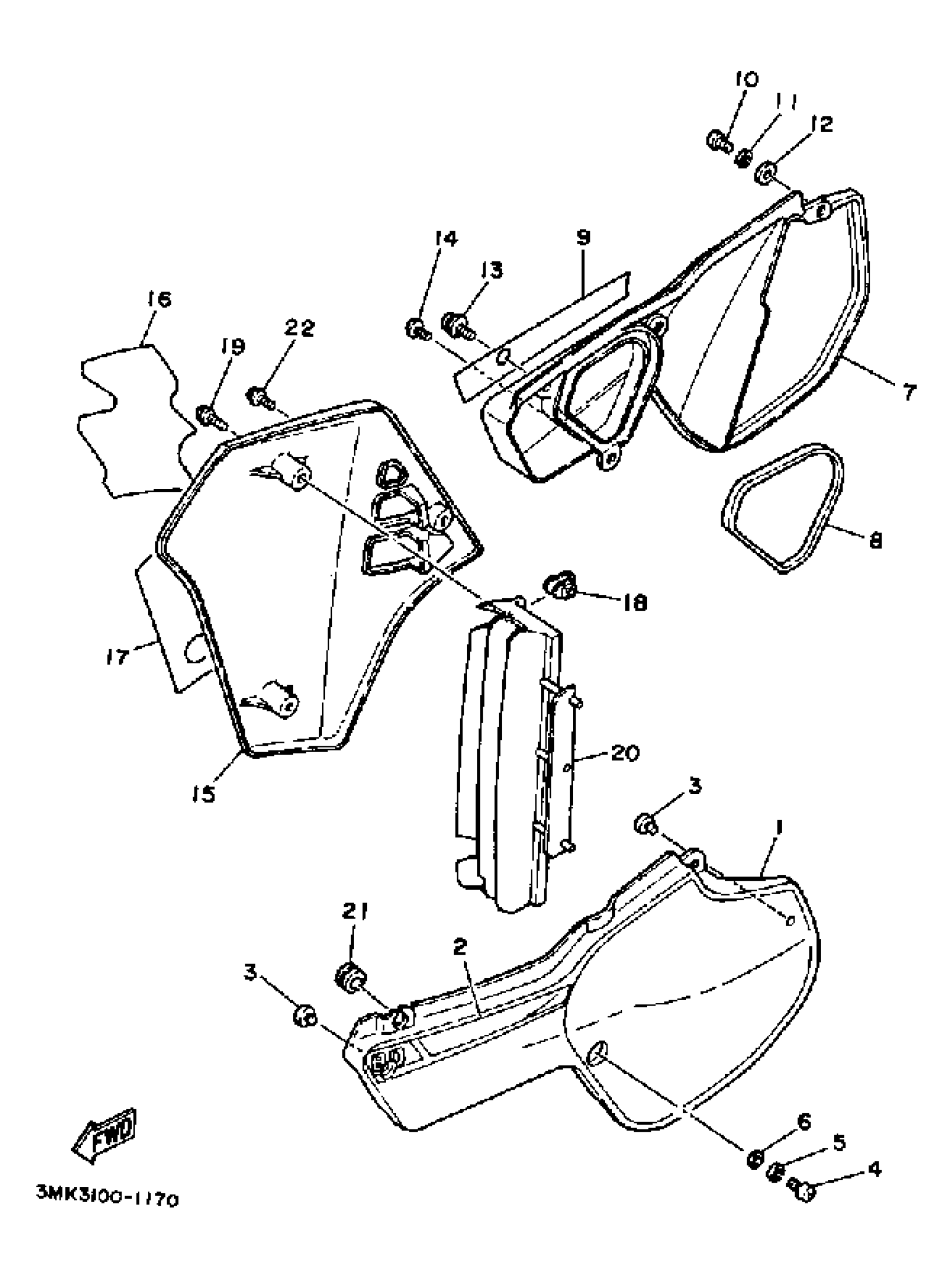

1975 Yamaha YZ80B (YZ80B) Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE 1

3MK-21711-00-00

1
Out of stock

2

GRAPHIC

3MK-2173E-00-00

1
Out of stock

3

DAMPER, LOCATING 1

22W-24181-00-00

1
Out of stock

4

SCREW, PAN

98507-06014-00

1

$6.18

In stock

5

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

6

1

$6.42

In stock

7

COVER, SIDE 2

3MK-21721-00-98

1
Out of stock

8

SEAL

39W-14452-00-00

1
Out of stock

9

GRAPHIC

3MK-2173F-00-00

1
Out of stock

10

SCREW, PAN

98507-06014-00

1

$6.18

In stock

11

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

12

1

$6.42

In stock

13

SCREW, W/WASHER

90159-06032-00

—
Out of stock

14

SCREW, BIND(1JK)

98980-06010-00

1
Out of stock

15

COVER, SIDE 4

3MK-21741-00-00

1
Out of stock

16

GRAPHIC, FUEL TNK 5

3MK-24248-00-00

1
Out of stock

17

GRAPHIC, FUEL TNK 3

3MK-24246-00-00

1
Out of stock

18

NUT

22W-21791-00-00

—

$7.83

In stock

19

SCREW, WITH WASHER

90159-05101-00

1
Out of stock

20

PANEL 1

1LR-2172A-00-00

1
Out of stock

21

DAMPER, SIDE COVER (437)

90480-12053-00

—

$5.78

In stock

22

SCREW, WITH WASHER (517).

90159-06013-00

—

$6.29

In stock
