1975 Yamaha YZ80B (YZ80B) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1975 Yamaha YZ80B (YZ80B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

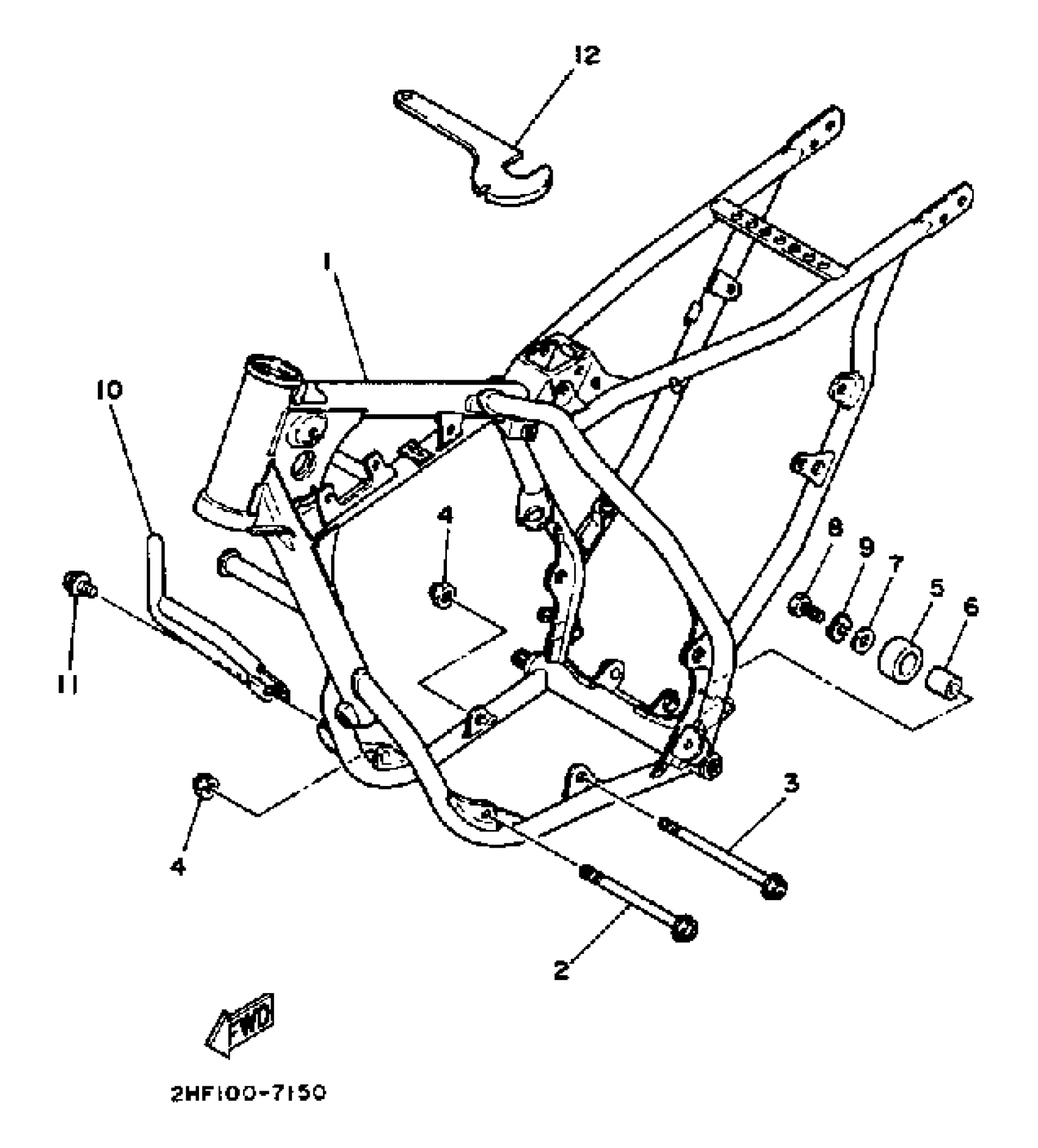

1975 Yamaha YZ80B (YZ80B) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

2HF-21110-00-UJ

1
Out of stock

2

BOLT, FLANGE

95817-08125-00

1
Out of stock

3

BOLT,FLANGE

95817-08135-00

1
Out of stock

4

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

5

TENSIONER

30X-22178-00-00

1
Out of stock

6

BUSH

4V4-22184-00-00

1

$3.57

In stock

7

WASHER, PLATE (4X4)

90201-067A0-00

1
Out of stock

8

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

9

WASHER(6TA)

92907-06700-00

1

$1.32

In stock

10

GUARD, RADIATOR

1LR-2174F-00-00

1
Out of stock

11

BOLT, FLANGE(2UJ)

95024-08012-00

1

$6.17

In stock

12

SPANNER, SPECIAL

10V-28135-00-00

1
Out of stock
