1975 Yamaha YZ80B (YZ80B) Shift CAM - Fork Diagram

← All diagrams

Find the part on the Shift CAM - Fork diagram for your 1975 Yamaha YZ80B (YZ80B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

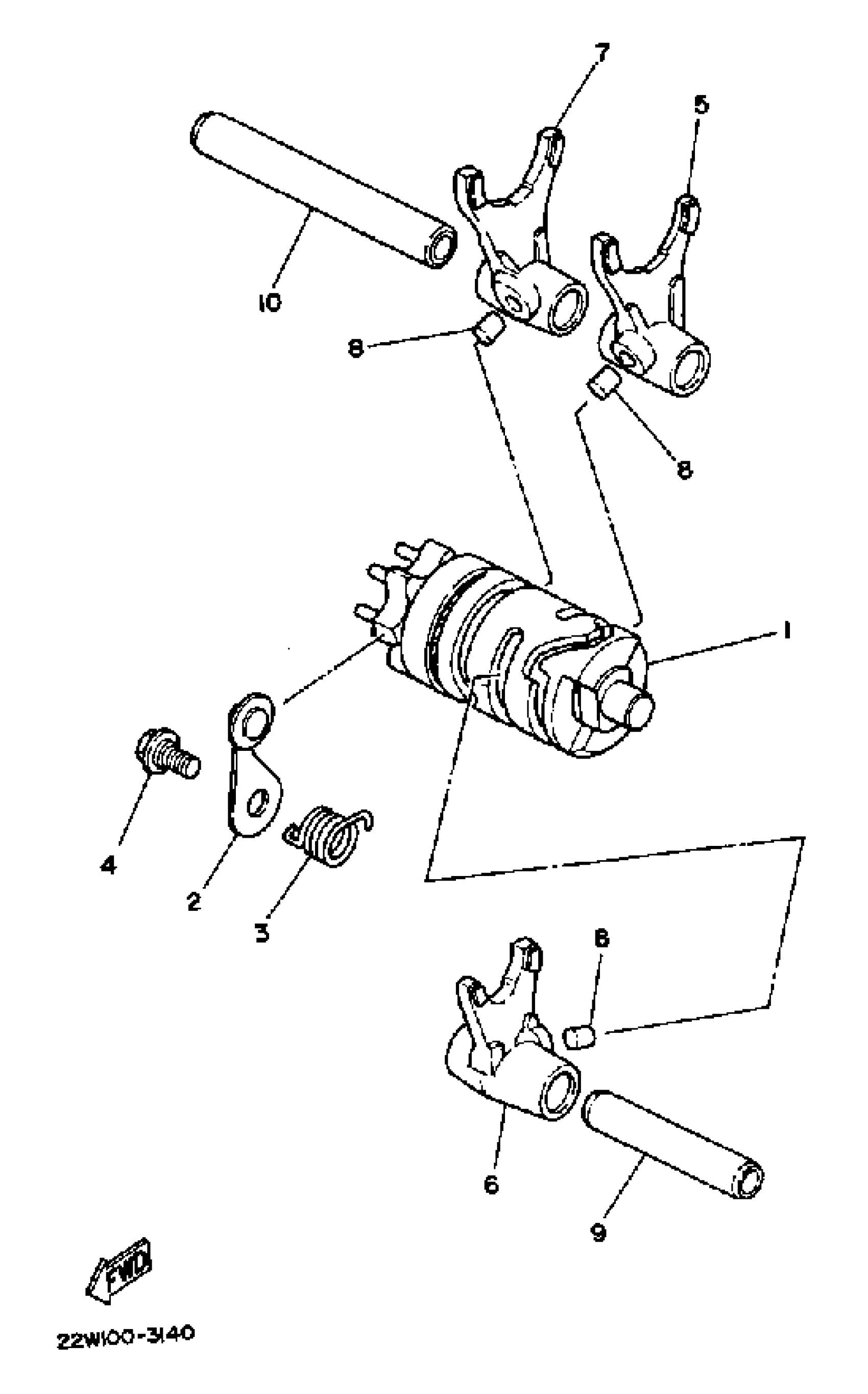

1975 Yamaha YZ80B (YZ80B) Shift CAM - Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSEMBLY

22W-18540-00-00

1
Out of stock

2

STOPPER LEVER ASSEMBLY

22W-18140-00-00

1
Out of stock

3

SPRING, TORSION (17W)

90508-26561-00

1

$8.28

In stock

4

BOLT

90109-06190-00

1

$3.49

In stock

5

FORK, SHIFT 1

5R2-18511-00-00

—
Out of stock

6

FORK, SHIFT 2

5R2-18512-00-00

1

$80.60

In stock

7

FORK, SHIFT 3

5R2-18513-00-00

—
Out of stock

8

PIN STRAIGHT 257185520000

90250-06013-00

1
Out of stock

9

BAR, SHIFT FORK GUIDE 1

4BA-18531-00-00

—
Out of stock

10

BAR, SHIFT FORK GUIDE 2

5X5-18535-01-00

1
Out of stock
