1975 Yamaha YZ80B (YZ80B) Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1975 Yamaha YZ80B (YZ80B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

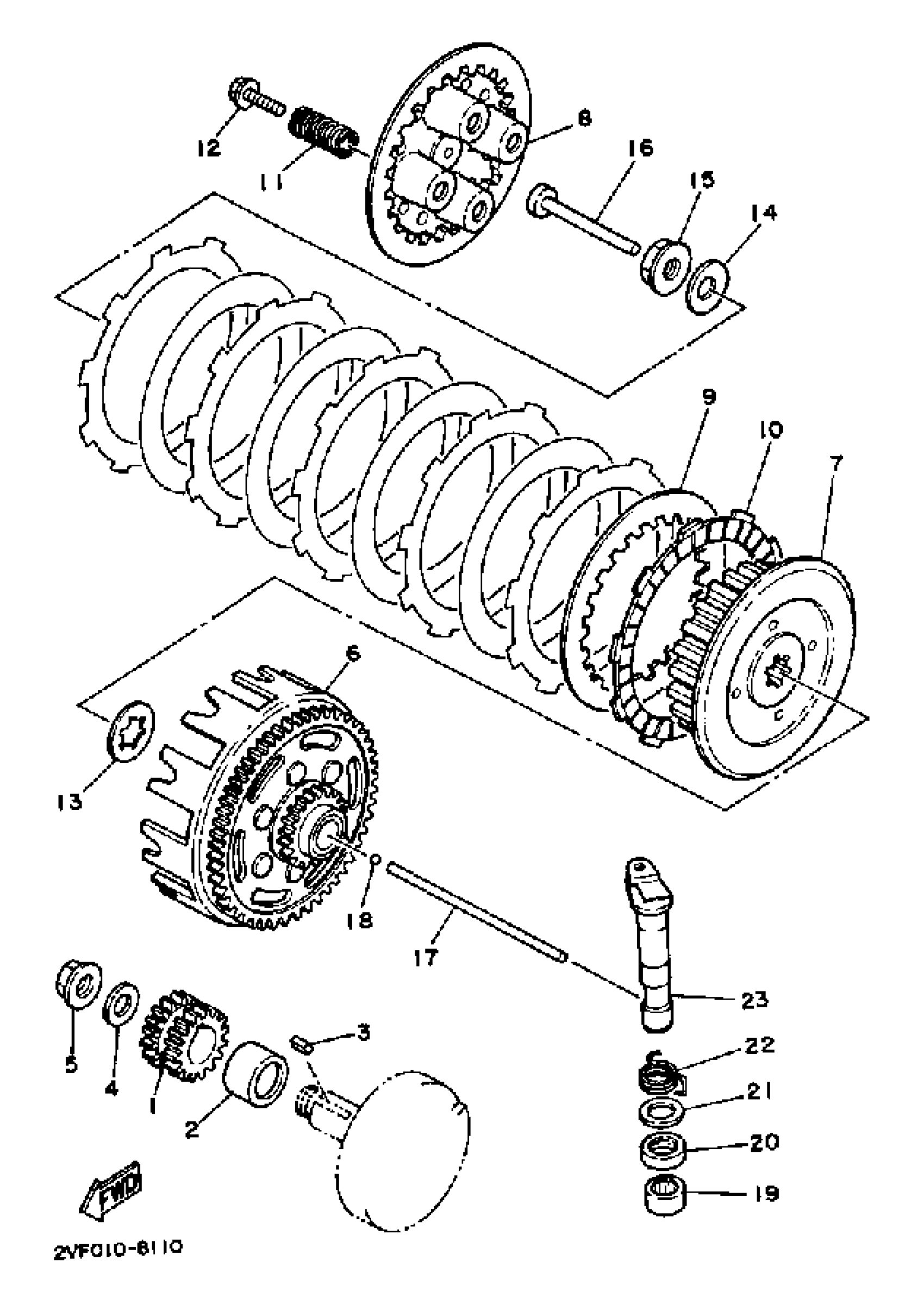

1975 Yamaha YZ80B (YZ80B) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, PRI DRIVE

1LR-16111-00-00

1
Out of stock

2

COLLAR

90387-202F0-00

1
Out of stock

3

KEY, STRAIGHT

90282-05001-00

1
Out of stock

4

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

—
Out of stock

5

NUT (4V2)

90179-12335-00

—
Out of stock

6

PRIMARY DRIVEN GEAR COMP.

1LR-16150-01-00

1
Out of stock

7

BOSS, CLUTCH

1LR-16371-00-00

1
Out of stock

8

PLATE, PRESSURE 1

1LR-16351-00-00

1
Out of stock

9

PLATE, CLUTCH 1

257-16324-10-00

—
Out of stock

10

PLATE, FRICTION

3XP-16321-00-00

1
Out of stock

11

SPRING, COMPRESSION(58T)

90501-204A0-00

1
Out of stock

12

SCREW, WITH WASHER (537)

90159-05011-00

1
Out of stock

13

PLATE, THRUST 1

4V0-16154-00-00

1
Out of stock

14

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

—
Out of stock

15

NUT(1EE)

90179-12659-00

1
Out of stock

16

ROD,PUSH (1)

137-16356-00-00

—
Out of stock

17

ROD, PUSH 2

2X3-16357-00-00

—
Out of stock

18

BALL

93503-16003-00

—
Out of stock

19

BEARING, CYLINDRICAL (3R3)

93315-21429-00

—
Out of stock

20

OIL SEAL (2K8)

93109-14021-00

—
Out of stock

21

WASHER, PLAIN (434)

90201-14411-00

—
Out of stock

22

SPRING, TORSION

90508-18463-00

1
Out of stock

23

AXLE, PUSH LEVER

58T-16382-00-00

1
Out of stock
