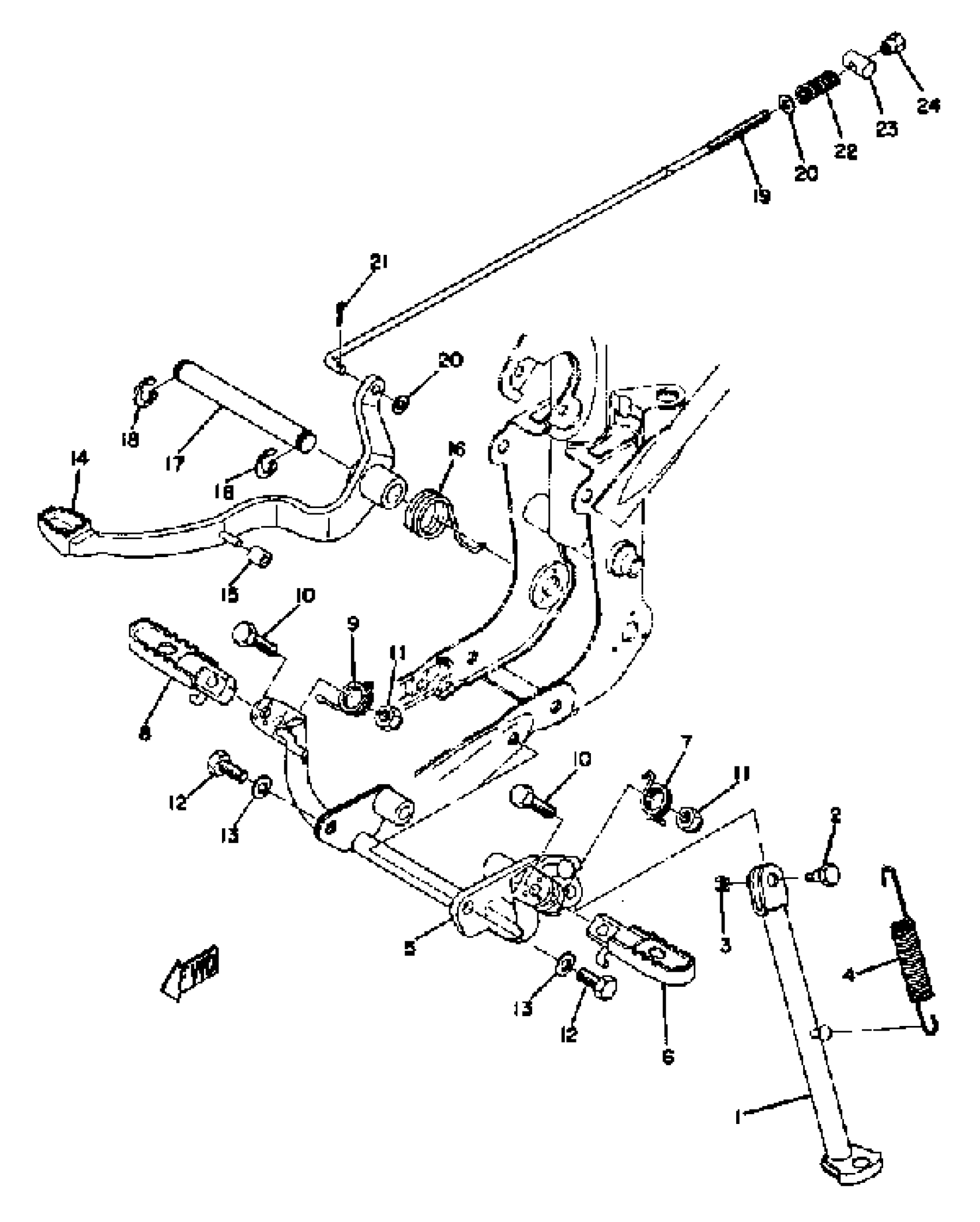

Yamaha YZ80A (YZ80A_B_C) 1974 STAND - FOOTREST - BRAKE PEDAL YZ80B - YZ80C Diagram

#

Description
Price

1

STAND, SIDE

462-27311-02-00

Unavailable

2

BOLT 1092537300

90109-08063-00

$10.49

3

. NUT

95380-08700-00

Unavailable

4

SPRING, TENSION (1L9)

90506-26270-00

$15.99

5

FOOTREST

(462-27451-01-00)

Unavailable

6

FOOTREST 1

(462-27411-00-33)

Unavailable

7

SPRING, TORSION

(90508-26173-00)

Unavailable

8

FOOTREST 2

462-27421-00-33

Unavailable

9

SPRING, TORSION

90508-26174-00

Unavailable

10

BOLT

97013-08035-00

$5.60

11

NUT, U

95617-08100-00

$9.49

12

BOLT, HEXAGON

97013-08020-00

$1.16

13

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

14

PEDAL, BRAKE

(462-27211-00-33)

Unavailable

15

DAMPER

462-28371-00-00

Unavailable

16

SPRING, TORSION

(90508-32218-00)

Unavailable

17

SHAFT, BRAKE PEDAL

2A3-27212-00-00

Unavailable

18

CIRCLIP (122)

93430-12008-00

Unavailable

19

ROD, BRAKE

462-27231-00-00

Unavailable

20

WASHER, PLAIN (646)

92990-06600-00

Unavailable

20

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

21

PIN, COTTER

91490-20025-00

Unavailable

22

SPRING, (180-27236-00)

90501-10245-00

Unavailable

23

PIN 1562723700

90249-12008-00

Unavailable

24

NUT (25K)

90179-06411-00

Unavailable
