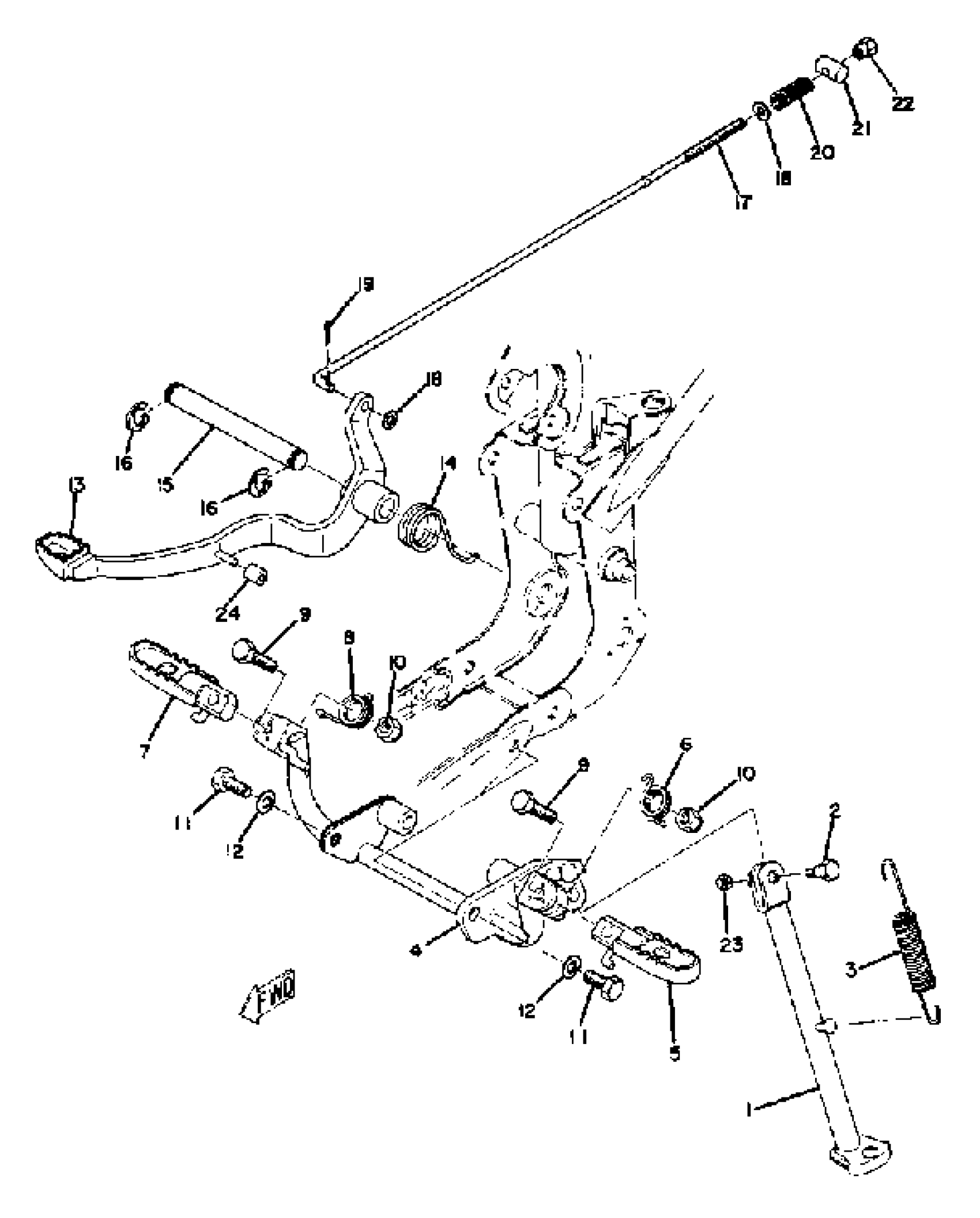

Yamaha YZ80A (YZ80A_B_C) 1974 STAND - FOOTREST - BRAKE PEDAL YZ80A Diagram

#

Description
Price

1

STAND, SIDE

462-27311-02-00

Unavailable

2

BOLT 1092537300

90109-08063-00

$10.49

3

SPRING, TENSION (1L9)

90506-26270-00

$15.99

4

FOOTREST

(462-27451-01-00)

Unavailable

5

FOOTREST 1

(462-27411-00-33)

Unavailable

6

SPRING, RETURN

(462-27426-01-00)

Unavailable

7

FOOTREST 2

462-27421-00-33

Unavailable

8

SPRING, RETURN

462-27456-01-00

Unavailable

9

BOLT

97013-08035-00

$5.60

10

NUT, U

95617-08100-00

$9.49

11

BOLT, HEXAGON

97013-08020-00

$1.16

12

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

13

PEDAL, BRAKE

(462-27211-00-33)

Unavailable

14

SPRING, TORSION

(90508-32218-00)

Unavailable

15

SHAFT, BRAKE PEDAL

2A3-27212-00-00

Unavailable

16

CIRCLIP (122)

93430-12008-00

Unavailable

17

ROD, BRAKE

462-27231-00-00

Unavailable

18

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

19

PIN, COTTER

91490-20025-00

Unavailable

20

SPRING, (180-27236-00)

90501-10245-00

Unavailable

21

PIN 1562723700

90249-12008-00

Unavailable

22

NUT (25K)

90179-06411-00

Unavailable

23

. NUT

95380-08700-00

Unavailable

24

DAMPER

462-28371-00-00

Unavailable
