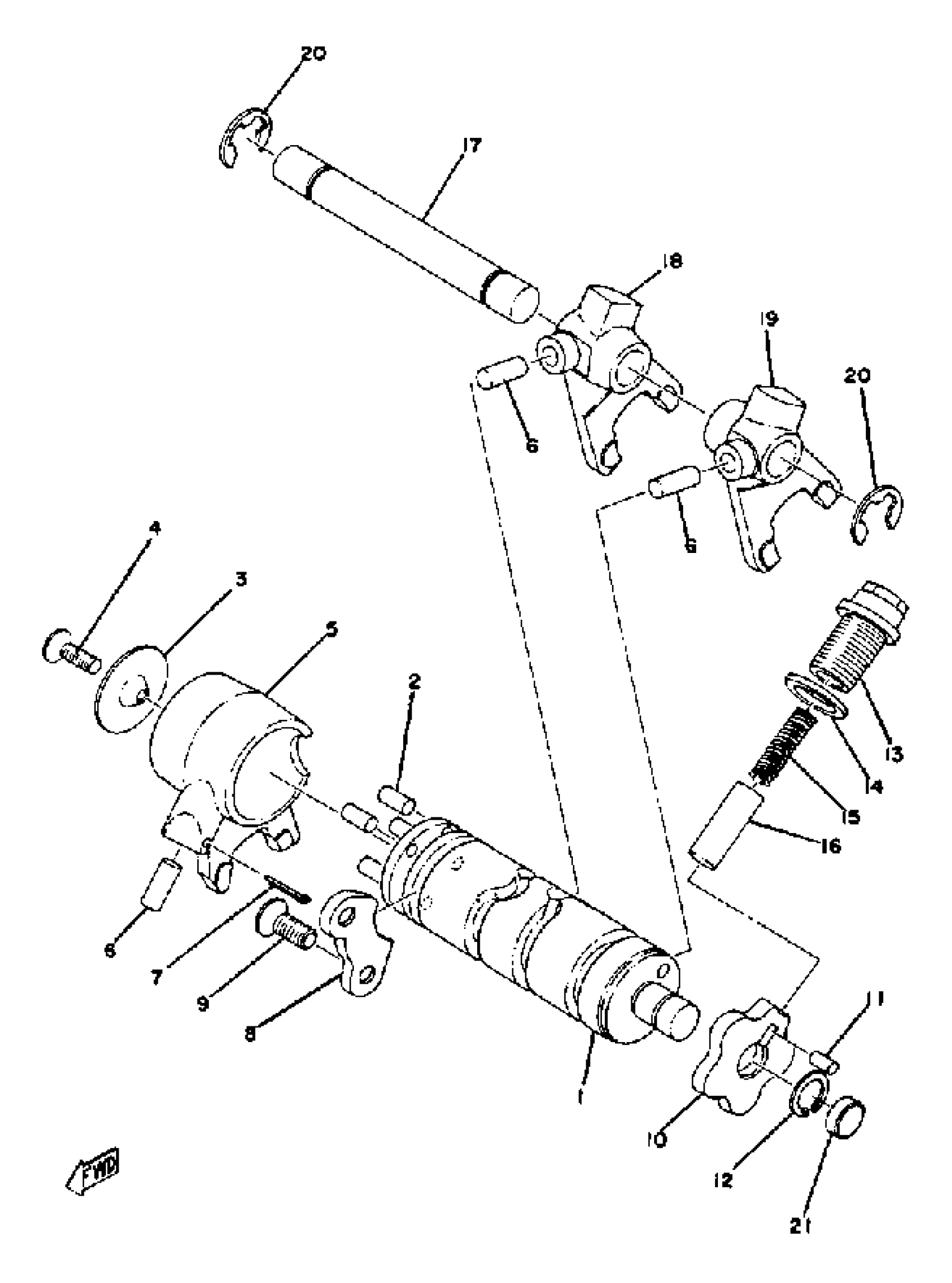

Yamaha YZ80A (YZ80A_B_C) 1974 SHIFTER 1 YZ80 A - B - C Diagram

#

Description
Price

1

SHIFT CAM ASSEMBLY

4U5-18540-00-00

Unavailable

2

PIN,DOWEL (603)

93604-10011-00

$8.49

3

PLATE, SIDE 1

214-18561-00-00

Unavailable

4

SCREW, FLAT

98707-05012-00

$1.71

5

FORK, SHIFT 1

353-18511-01-00

Unavailable

6

PIN,DOWEL(296)

93606-14081-00

$4.24

7

PIN, COTTER

91490-25020-00

$3.19

8

PLATE, STOPPER 2

353-18562-00-00

Unavailable

9

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

Unavailable

10

PLATE, STOPPER

353-18141-01-00

Unavailable

11

PIN, DOWEL (278)

93604-08071-00

$8.49

12

CIRCLIP, OUTER

93440-12026-00

Unavailable

13

BOLT (1K8)

90109-14485-00

$7.49

14

WASHER, PROTECTOR

4F4-14766-00-00

$6.99

15

SPRING, COMPRESSION

90501-09292-00

Unavailable

16

STOPPER, CAM

278-18547-02-00

Unavailable

17

BAR, SHIFT FORK GUIDE 1

214-18531-00-00

Unavailable

18

FORK, SHIFT 2

353-18512-01-00

Unavailable

19

FORK, SHIFT 3

353-18513-01-00

Unavailable

20

CIRCLIP

99006-10600-00

Unavailable

21

PLUG, STRAIGHT

90334-12009-00

Unavailable
