REAR WHEEL YZ80C

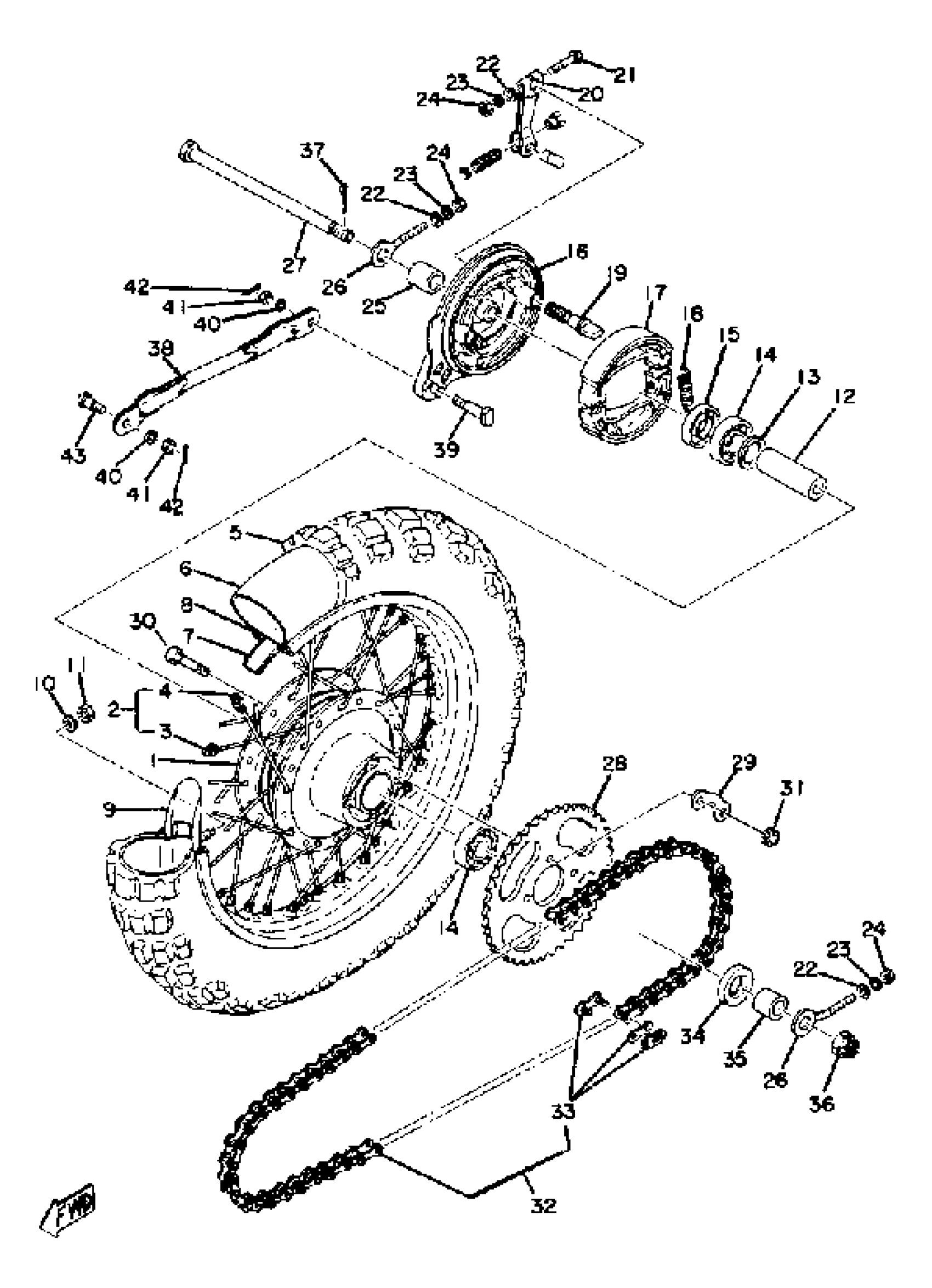

Yamaha YZ80A (YZ80A_B_C) 1974 REAR WHEEL YZ80C Diagram
#
1
HUB, REAR
(462-25311-00-98)
Unavailable
2
SPOKE SET, REAR
462-25304-00-00
Unavailable
3
SPOKE SET, INNER 2
(462-25396-90-00)
Unavailable
4
SPOKE SET, OUTER 2
(462-25397-90-00)
Unavailable
5
IRC 360X14MXGS45Z2
(94136-14560-00)
Unavailable
8
RIM 1.40X14
(94414-14122-00)
Unavailable
9
SPACER, BEAD
462-25394-00-00
Unavailable
10
.. WASHER, PLATE
92990-08600-00
Unavailable
12
SPACER
90560-12139-00
Unavailable
15
OIL SEAL, SO-TYPE
93104-18006-00
Unavailable
16
PLATE, BRAKE SHOE
(462-25321-00-98)
Unavailable
17
BRAKE SHOE KIT
4KN-W253E-11-00
Unavailable
18
SPRING, TENSION (566).
90506-16150-00
Unavailable
19
CAM SHAFT
122-25351-02-00
Unavailable
20
LEVER, CAM SHAFT
122-25355-00-00
Unavailable
21
BOLT, HEXAGON (538)
90101-06278-00
Unavailable
22
WASHER, PLAIN (646)
92990-06600-00
Unavailable
23
WASHER, SPRING
92995-06100-00
Unavailable
24
NUT, HEXAGON
95380-06600-00
Unavailable
25
COLLAR 102253830000
90387-12412-00
Unavailable
26
PULLER, CHAIN
3AC-2538G-10-00
Unavailable
27
AXLE, WHEEL
367-25381-01-00
Unavailable
28
SPROCKET, DRVN 49T
13N-25449-20-00
Unavailable
28
SPROCKET, DRIVEN (48T)
492-25448-11-00
Unavailable
28
SPROCKET, DRIVEN
4U6-25447-11-00
Unavailable
29
WASHER
2AL-25412-00-00
Unavailable
30
BOLT 109254110000
90109-08319-00
Unavailable
31
NUT, HEXAGON (509)
90170-08158-00
Unavailable
32
420-106L
94580-52106-00
Unavailable
33
JOINT, CHAIN (29A)
94680-52001-00
Unavailable
34
OIL SEAL(3TU)
93106-20033-00
Unavailable
35
COLLAR (40E)
90387-120F9-00
Unavailable
36
NUT CASTLE(481)
90171-12005-00
Unavailable
37
PIN, COTTER
91490-30030-00
Unavailable
38
BAR, TENSION
(462-25371-00-00)
Unavailable
39
BOLT 1092537300
90109-08063-00
Unavailable
40
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
41
. NUT
95380-08700-00
Unavailable
42
PIN, COTTER
91490-20025-00
Unavailable
43
BOLT (183-25378-00)
90109-08368-00
Unavailable
