Description

Price

1

KICK CRANK ASSEMBLY

3AY-15620-00-00

Unavailable

2

LEVER, KICK

(214-15612-09-00)

Unavailable

3

SPRING, COMPRESSION (5L1)

90504-18031-00

$9.49

4

WASHER,SPEC'L SHAPE

90209-10210-00

Unavailable

5

. CIRCLIP, OUTER

93440-10028-00

Unavailable

6

COVER, KICK LEVER

156-15618-01-00

$7.99

7

BOLT, HEXAGON

97017-06025-00

$4.24

8

KICK AXLE ASSEMBLY

462-15660-00-00

Unavailable

9

OIL SEAL (15X26X6-102)

93109-15001-00

$8.49

10

CIRCLIP(1AR)

99009-15400-00

$8.49

11

COVER, SPRING

462-15676-00-00

Unavailable

12

SPRING, TORSION (451-15665-00)

90508-26196-00

Unavailable

13

STOPPER, KICK SPRING

248-15668-00-00

$7.99

14

SPACER

462-15666-00-00

Unavailable

15

CIRCLIP (256)

93410-25017-00

$3.76

16

WASHER, PLATE(59W)

90201-253K0-00

Unavailable

17

CLIP

90468-26038-00

Unavailable

18

GEAR, KICK (24T)

353-15641-00-00

Unavailable

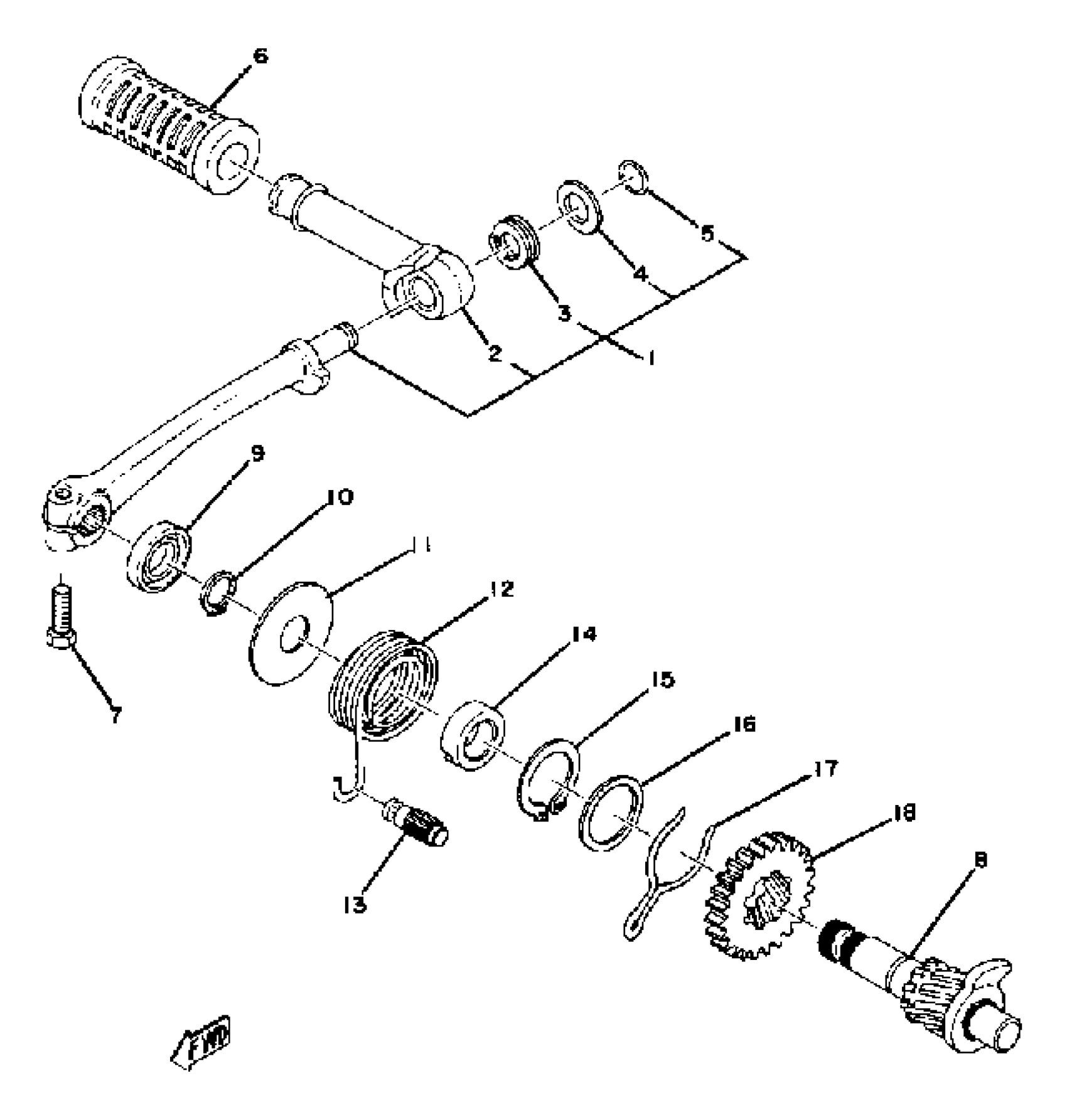

Yamaha YZ80A (YZ80A_B_C) 1974 KICK - STARTER YZ80 A - B - C Diagram

KICK CRANK ASSEMBLY

LEVER, KICK

SPRING, COMPRESSION (5L1)

WASHER,SPEC'L SHAPE

. CIRCLIP, OUTER

COVER, KICK LEVER

BOLT, HEXAGON

KICK AXLE ASSEMBLY

OIL SEAL (15X26X6-102)

CIRCLIP(1AR)

COVER, SPRING

SPRING, TORSION (451-15665-00)

STOPPER, KICK SPRING

SPACER

CIRCLIP (256)

WASHER, PLATE(59W)

CLIP

GEAR, KICK (24T)
