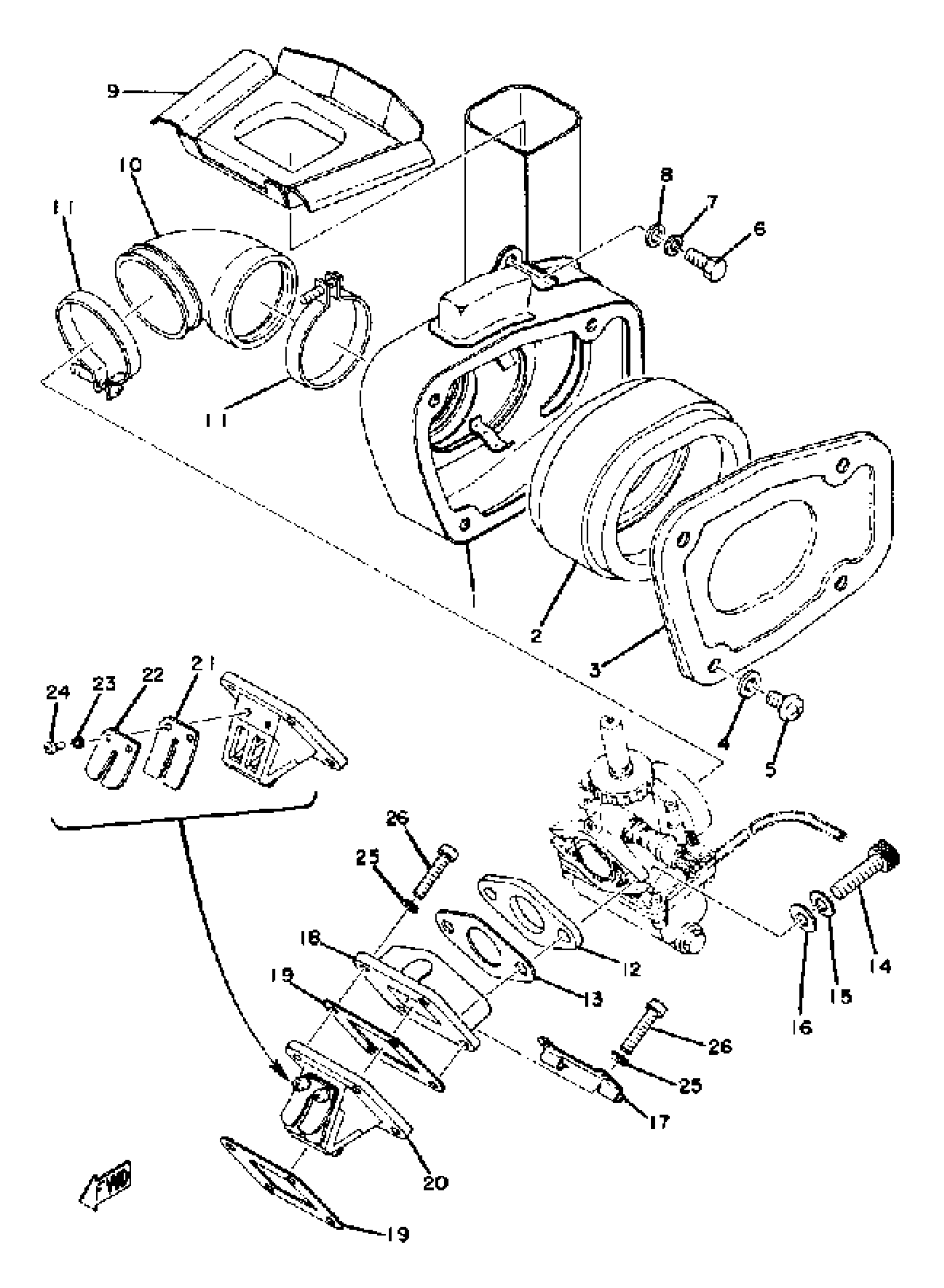

Yamaha YZ80A (YZ80A_B_C) 1974 INTAKE YZ80C Diagram

#

Description
Price

1

CASE, AIR CLEANER 1

(492-14411-02-00)

Unavailable

2

ELEMENT, AIR CLNR

598-14451-00-00

Unavailable

3

CAP, CLEANER CASE 1

(598-14412-00-00)

Unavailable

4

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

5

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

6

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

7

WASHER, SPRING

92995-06100-00

Unavailable

8

WASHER, PLAIN (646)

92990-06600-00

$2.80

9

COVER 2

(598-14418-00-00)

Unavailable

10

JOINT, AIR CLNR 1

598-14453-00-00

Unavailable

11

CLAMP HOSE 304144550000

90460-51059-00

$16.99

12

MANIFOLD, INTAKE

315-13555-00-00

Unavailable

13

GASKET, MANIFOLD

248-13556-71-00

$8.99

14

BOLT, SOCKET

91317-08030-00

$8.49

15

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

16

WASHER, PLAIN

92990-08200-00

Unavailable

17

CLAMP

(90465-08064-00)

Unavailable

18

JOINT, CARBURETOR

(598-13565-00-00)

Unavailable

19

GASKET, VALVE SEAT

87A-13621-00-00

Unavailable

20

REED VALVE ASSY

345-13610-20-00

Unavailable

21

REED, VALVE

345-13613-70-00

Unavailable

22

. STOPPER, REED VALVE

345-13616-70-00

Unavailable

23

WASHER, SPRING

92990-03100-00

Unavailable

24

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

25

WASHER, SPRING

92995-06100-00

Unavailable

26

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable
