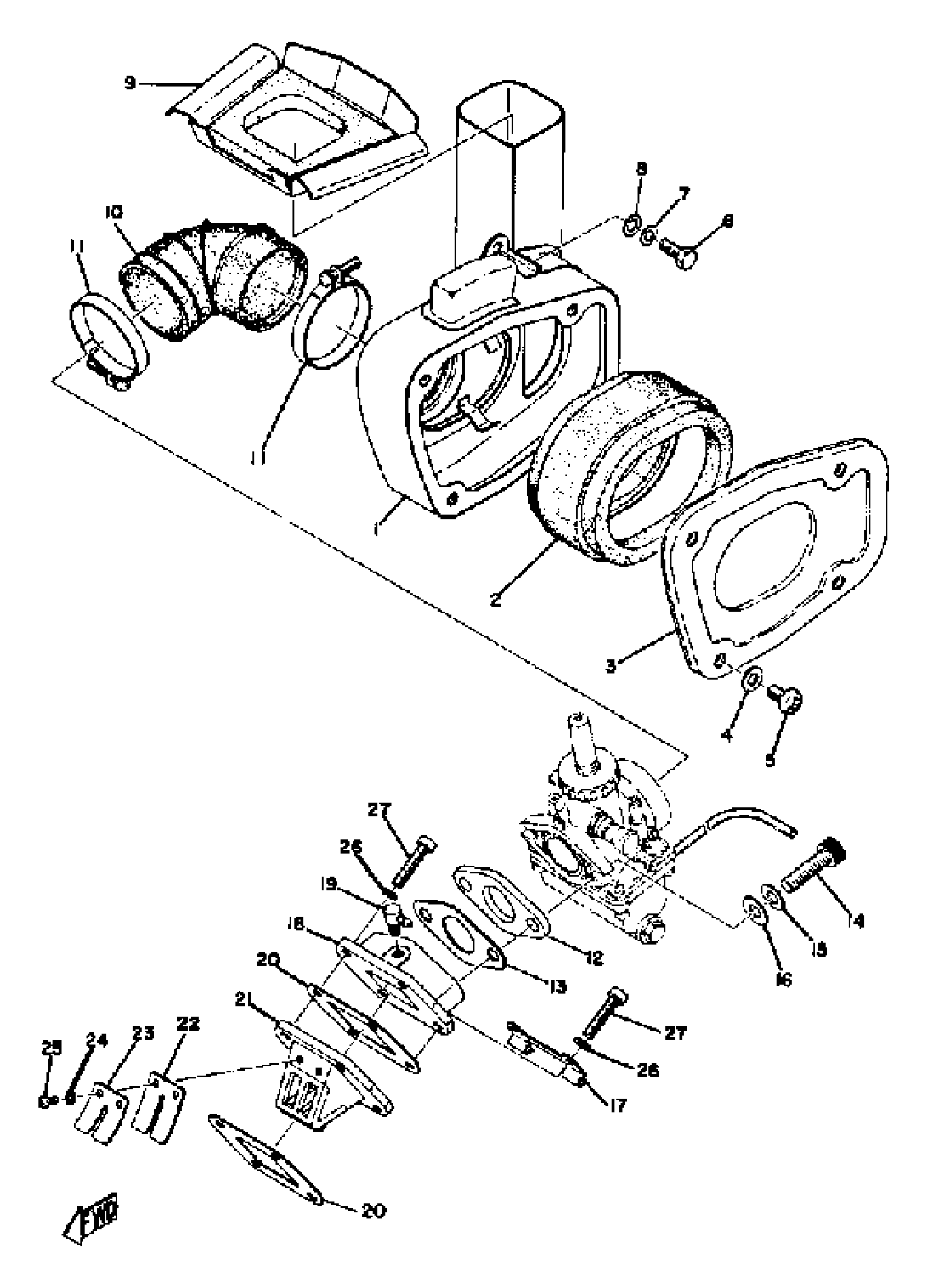

Yamaha YZ80A (YZ80A_B_C) 1974 INTAKE YZ80B Diagram

#

Description
Price

1

CASE, AIR CLEANER 1

(492-14411-01-00)

Unavailable

2

ELEMENT, AIR CLNR

492-14451-00-00

Unavailable

3

CAP, CLEANER CASE 1

(492-14412-01-00)

Unavailable

4

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

5

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

6

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

7

WASHER, SPRING

92995-06100-00

Unavailable

8

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

9

COVER 2

(598-14418-00-00)

Unavailable

10

JOINT, AIR CLNR 1

(492-14453-00-00)

Unavailable

11

CLAMP HOSE 304144550000

90460-51059-00

$16.99

12

MANIFOLD, INTAKE

304-13555-00-00

Unavailable

13

GASKET, MANIFOLD

248-13556-71-00

$8.99

14

BOLT, SOCKET

91317-08030-00

$8.49

15

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

16

WASHER, PLAIN

92990-08200-00

Unavailable

17

CLAMP

(90465-08064-00)

Unavailable

18

JOINT, CARBURETOR

(492-13565-00-98)

Unavailable

19

NOZZLE

3XV-13741-00-00

Unavailable

20

GASKET, VALVE SEAT

3VM-13621-00-00

Unavailable

21

REED VALVE ASSY

304-13610-00-00

Unavailable

22

REED, VALVE

304-13613-01-00

Unavailable

23

STOPPER, REED VALVE

(304-13616-00-00)

Unavailable

24

WASHER, SPRING

92990-03100-00

Unavailable

25

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

26

WASHER, SPRING

92995-06100-00

Unavailable

27

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable
