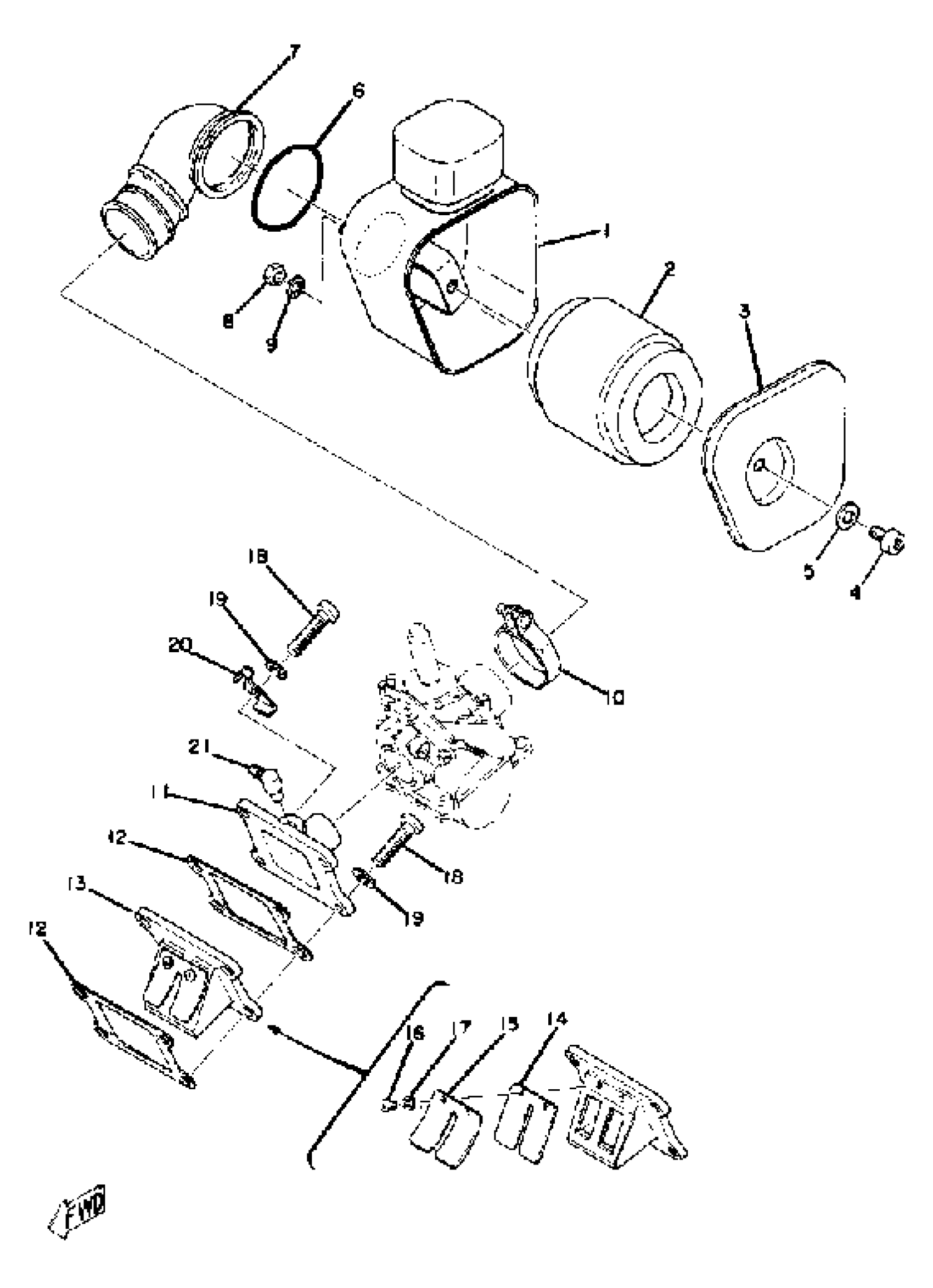

Yamaha YZ80A (YZ80A_B_C) 1974 INTAKE YZ80A Diagram

#

Description
Price

1

CASE, AIR CLEANER 1

(462-14411-01-00)

Unavailable

2

ELEMENT, AIR CLEANER

367-14451-08-00

$15.49

3

CAP, CLEANER CASE 1

2A3-14412-00-00

Unavailable

3

NO LONGER AVAILABLE

367-11412-00-00

Unavailable

4

SCREW PAN HEAD

98580-06010-00

$8.49

5

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

6

BAND 3671445501

90506-06075-00

$8.49

7

JOINT, AIR CLNR 1

(462-14453-01-00)

Unavailable

9

WASHER, SPRING

92995-06100-00

Unavailable

10

CLAMP,HOSE

90460-33013-00

Unavailable

11

JOINT, CARBURETOR (367-13565-00-98)

374-13565-00-00

Unavailable

12

GASKET, VALVE SEAT

3MT-13621-00-00

$8.99

13

REED VALVE ASSEMBLY

353-13610-01-00

Unavailable

14

VALVE, REED

314-13613-01-00

Unavailable

15

. STOPPER, REED VALVE

10X-13616-00-00

Unavailable

16

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

17

WASHER, SPRING

92990-03100-00

Unavailable

18

SCREW PAN HEAD

98580-06020-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

20

HOLDER

(367-15378-00-00)

Unavailable

21

NOZZLE

3XV-13741-00-00

Unavailable
