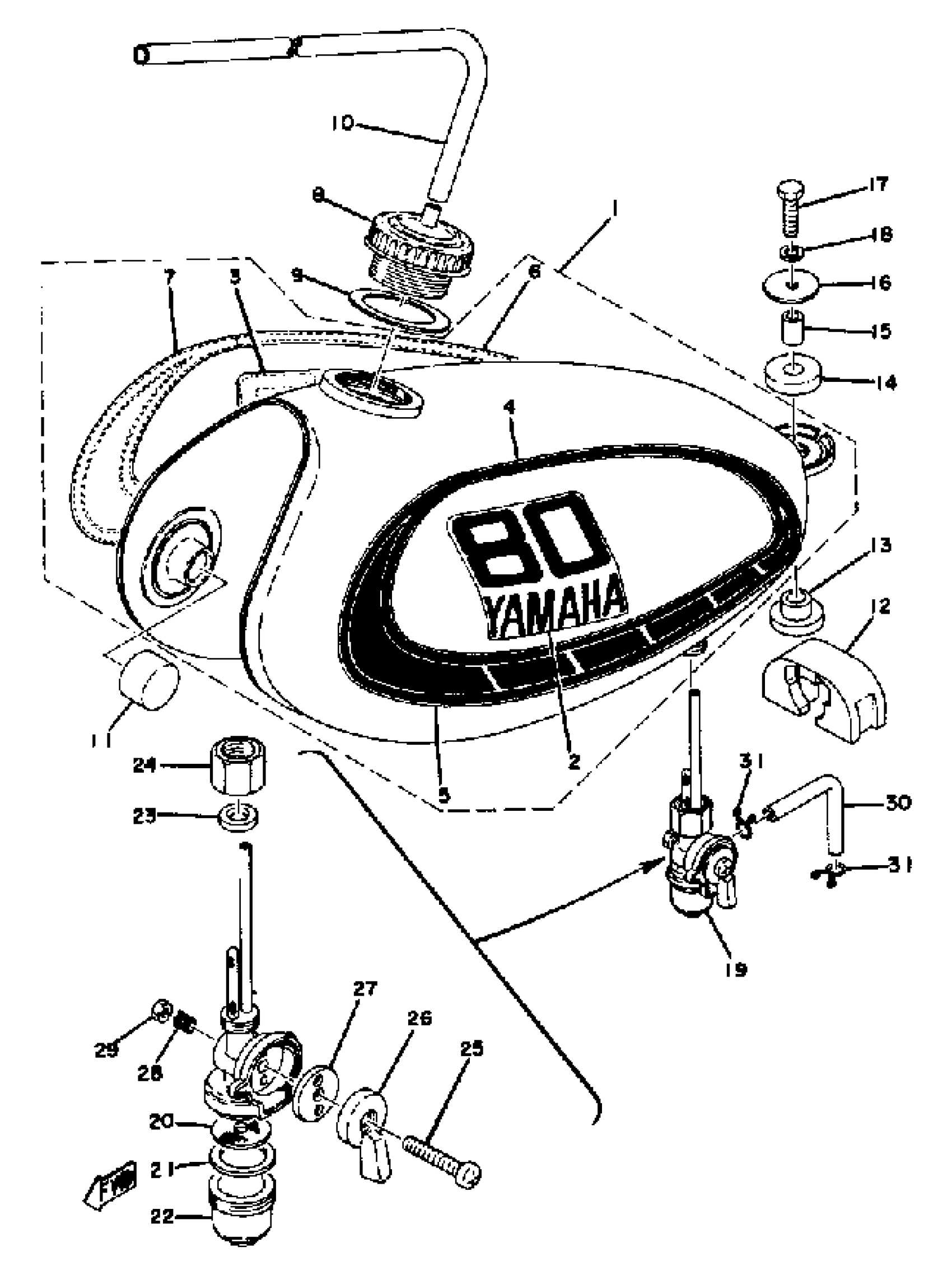

Yamaha YZ80A (YZ80A_B_C) 1974 FUEL TANK YZ80C Diagram

FUEL TANK

(462-24110-10-03)

Unavailable

EMBLEM 1

(598-24161-00-00)

Unavailable

EMBLEM 2

(598-24162-00-00)

Unavailable

GRAPHIC, FUEL TNK 1

(598-24244-00-00)

Unavailable

GRAPHIC, FUEL TNK 2

(598-24245-00-00)

Unavailable

GRAPHIC, FUEL TNK 3

(598-24246-00-00)

Unavailable

GRAPHIC, FUEL TNK 4

(598-24247-00-00)

Unavailable

BODY, CAP

322-24611-02-00

$57.99

GASKET (583 FUEL TANK CAP)

90430-35122-00

Unavailable

HOSE (L420)

90445-092K1-00

$12.49

DAMPER, LOCATING(1)

122-24181-00-00

$7.99

DAMPER, LOCATING

353-24182-00-00

$27.99

GROMMET (462)

90480-14088-00

$5.60

WASHER, PLATE (462)

90202-14077-00

$4.29

COLLAR

90387-07020-00

$8.49

WASHER PLATE 248217570000

90201-06074-00

Unavailable

BOLT, HEXAGON

97017-06025-00

Unavailable

WASHER, SPRING

92995-06100-00

Unavailable

FUEL COCK ASSY

367-24500-04-00

Unavailable

. NET, FILTER 2

355-24515-00-00

Unavailable

GASKET

102-24522-02-00

Unavailable

. CUP, FILTER

122-24521-00-00

Unavailable

GASKET, NUT

122-24532-00-00

Unavailable

. NUT

603-24531-01-00

Unavailable

SCREW, PAN HEAD

98517-05030-00

Unavailable

LEVER, COCK

(355-24524-01-00)

Unavailable

VALVE

355-24523-00-00

Unavailable

WASHER, WAVE

(355-24518-00-00)

Unavailable

NUT(6L2)

95333-08600-00

Unavailable

HOSE (L420)

90445-092K1-00

$12.49

CLIP 101235600

90467-08003-00

Unavailable
