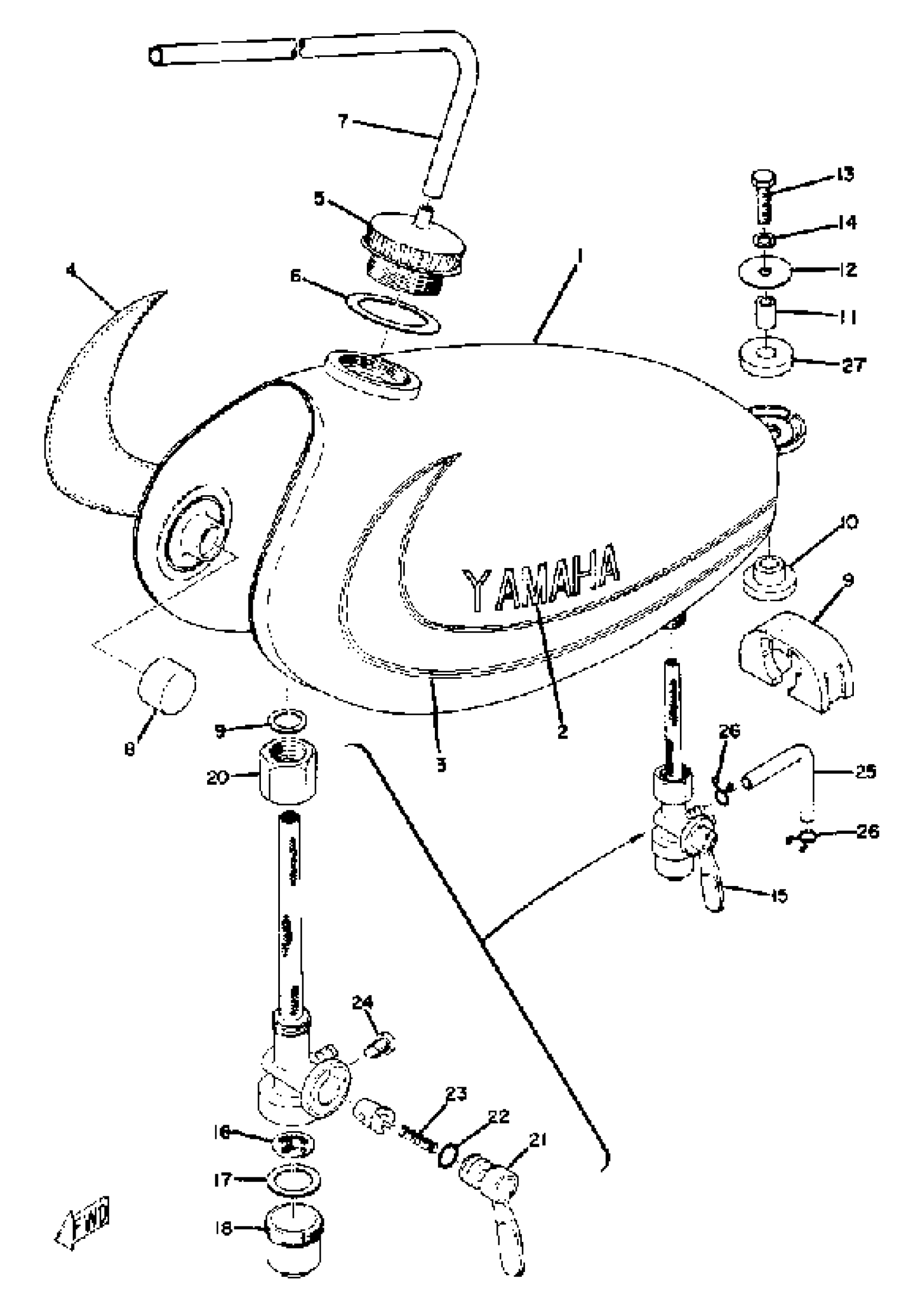

Yamaha YZ80A (YZ80A_B_C) 1974 FUEL TANK YZ80A Diagram

FUEL TANK

(462-24110-10-01)

Unavailable

EMBLEM, YAMAHA(4GA)

99221-00140-00

$4.46

GRAPHIC, FUEL TNK 1

(462-24244-10-00)

Unavailable

GRAPHIC, FUEL TNK 2

(462-24245-10-00)

Unavailable

BODY, CAP

322-24611-02-00

$57.99

GASKET (322-24612-00)

90430-37052-00

Unavailable

HOSE (L420)

90445-092K1-00

$12.49

DAMPER, LOCATING(1)

122-24181-00-00

$7.99

DAMPER, LOCATING

353-24182-00-00

$27.99

GROMMET (462)

90480-14088-00

$5.60

COLLAR (J10)

90387-06026-00

$8.49

WASHER PLATE 248217570000

90201-06074-00

$9.49

BOLT, HEXAGON

97017-06025-00

$4.24

WASHER, SPRING

92995-06100-00

Unavailable

FUEL COCK ASSY

322-24500-02-00

$92.99

FUEL COCK ASSY

367-24500-04-00

Unavailable

. NET, FILTER 2

122-24515-00-00

Unavailable

GASKET

102-24522-02-00

Unavailable

. CUP, FILTER

122-24521-00-00

Unavailable

GASKET, NUT

122-24532-00-00

Unavailable

. NUT

122-24531-00-00

Unavailable

. LEVER, COCK

122-24524-00-00

Unavailable

SEAL, COCK

(122-24534-00-00)

Unavailable

SPRING, COMPRESSION

(90501-07029-00)

Unavailable

SCREW, LVR FITTING

(127-24535-00-00)

Unavailable

HOSE (L420)

90445-092K1-00

$12.49

CLIP 101235600

90467-08003-00

Unavailable

WASHER, PLATE (462)

90202-14077-00

Unavailable
