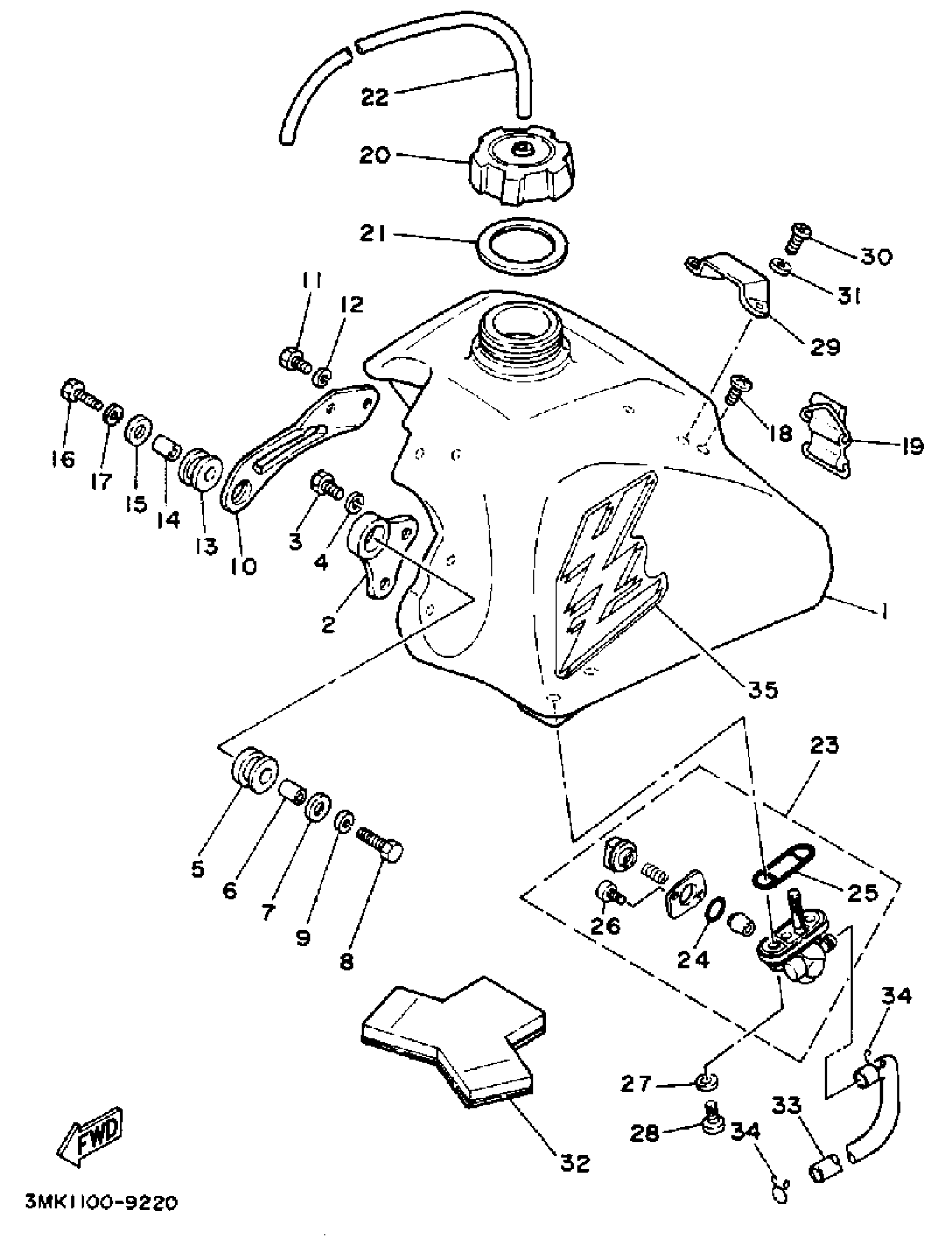

Yamaha YZ80A (YZ80A_B_C) 1974 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

3MK-24110-01-00

Unavailable

2

STAY, FUEL TANK 1

1LR-24157-00-00

Unavailable

3

BOLT (661)

97013-06012-00

$5.60

4

WASHER, SPRING

92995-06100-00

Unavailable

5

GROMMET (4V1)

90480-18290-00

$8.49

6

COLLAR (1T2)

90387-07598-00

$5.60

7

WASHER PLATE 137241870000

90201-06072-00

$9.49

8

BOLT, HEXAGON

97017-06030-00

$3.61

9

WASHER, SPRING

92995-06100-00

Unavailable

10

STAY, FUEL TANK 2

22W-24158-00-00

Unavailable

11

BOLT (661)

97013-06012-00

$5.60

12

WASHER, SPRING

92995-06100-00

Unavailable

13

GROMMET (4V1)

90480-18290-00

$8.49

14

COLLAR (1T2)

90387-07598-00

$5.60

15

WASHER PLATE 137241870000

90201-06072-00

$9.49

16

BOLT, HEXAGON

97017-06030-00

$3.61

17

WASHER, SPRING

92995-06100-00

Unavailable

18

SCREW, BIND (J17)

98980-06020-00

Unavailable

19

BAND, TANK FITTING 1

59V-24173-00-00

Unavailable

20

BODY, CAP

5X7-24611-01-00

Unavailable

21

PACKING, CAP

5X7-24612-00-00

Unavailable

22

HOSE (L420)

90445-092K1-00

Unavailable

23

FUEL COCK ASSEMBLY 1

2VE-24500-00-00

Unavailable

24

O-RING

4X8-24534-00-00

Unavailable

25

O-RING

4X8-24512-00-00

Unavailable

26

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

27

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

28

SCREW 256241430000

90149-06011-00

Unavailable

29

BRACKET, SEAT

5X7-2412F-00-00

Unavailable

30

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

31

WASHER, SPRING

92995-06100-00

Unavailable

32

DAMPER, LOCATING 3

22W-24183-00-00

Unavailable

33

PIPE, FUEL 1

1LR-24311-00-00

Unavailable

34

CLIP

90467-100A1-00

Unavailable

35

GRAPHIC, FUEL TNK 7

3MM-24254-00-00

Unavailable
