FRONT FORK YZ80A - YZ80B

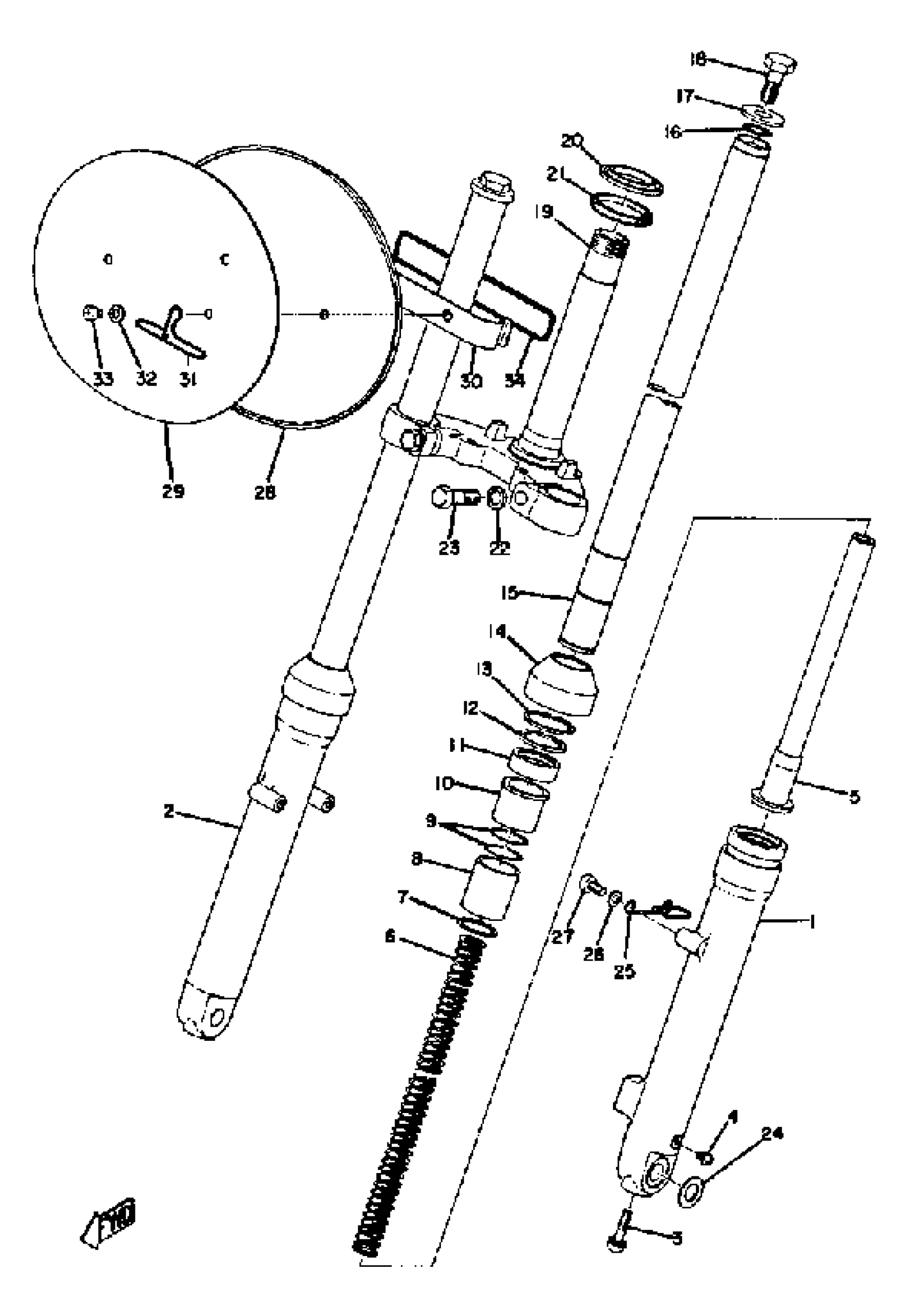

Yamaha YZ80A (YZ80A_B_C) 1974 FRONT FORK YZ80A - YZ80B Diagram
#
1
FRONT FORK ASSEMBLY
(462-23101-02-00)
Unavailable
1
TUBE, OUTER 1
(462-23126-02-38)
Unavailable
2
. TUBE, OUTER 2 (462-23136-02)
462-23136-02-38
Unavailable
3
SCREW, PAN HEAD(6B0)
97885-06025-00
Unavailable
4
.. PLUG, DRAIN
451-23119-01-00
Unavailable
5
. CYLINDER COMP, FRONT FORK
462-23170-02-00
Unavailable
6
SPRING, FRONT FORK
(462-23141-02-00)
Unavailable
7
. CIRCLIP
462-23183-02-00
Unavailable
8
. PISTON, FRONT FORK
462-23171-02-00
Unavailable
9
. RING, PISTON
462-23157-02-00
Unavailable
10
. METAL, SLIDE 1
462-23125-02-00
Unavailable
11
OIL SEAL (5R6)
93110-27010-00
Unavailable
12
. WASHER, OIL SEAL
462-23146-02-00
Unavailable
13
. CLIP, OIL SEAL
462-23156-02-00
Unavailable
14
SEAL,DUST
462-23144-02-00
Unavailable
15
TUBE, INNER 1
(462-23124-02-00)
Unavailable
16
GASKET
462-23114-02-00
Unavailable
17
WASHER, CAP
(462-23112-02-00)
Unavailable
18
BOLT, CAP
(451-23111-01-00)
Unavailable
19
UNDER BRACKET
(462-23340-02-33)
Unavailable
20
RACE, BALL 1
B6E-23411-00-00
Unavailable
21
SEAL, DUST
164-23462-00-00
Unavailable
22
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
23
BOLT 1
(451-23346-01-00)
Unavailable
24
. WASHER, SPECIAL
462-23392-02-00
Unavailable
25
HOLDER, CABLE 1
(462-23318-00-00)
Unavailable
26
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
26
WASHER, SPRING
92995-06100-00
Unavailable
27
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
28
PLATE, NUMBER
(462-23485-00-00)
Unavailable
29
EMBLEM
(462-23395-00-00)
Unavailable
30
. STAY, PLATE
288-23486-00-00
Unavailable
31
HOLDER, CABLE 2
(462-23319-00-00)
Unavailable
32
WASHER, PLATE
90201-06086-00
Unavailable
32
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
33
SCREW PAN HEAD
98580-06010-00
Unavailable
34
. BAND
288-23489-00-00
Unavailable
