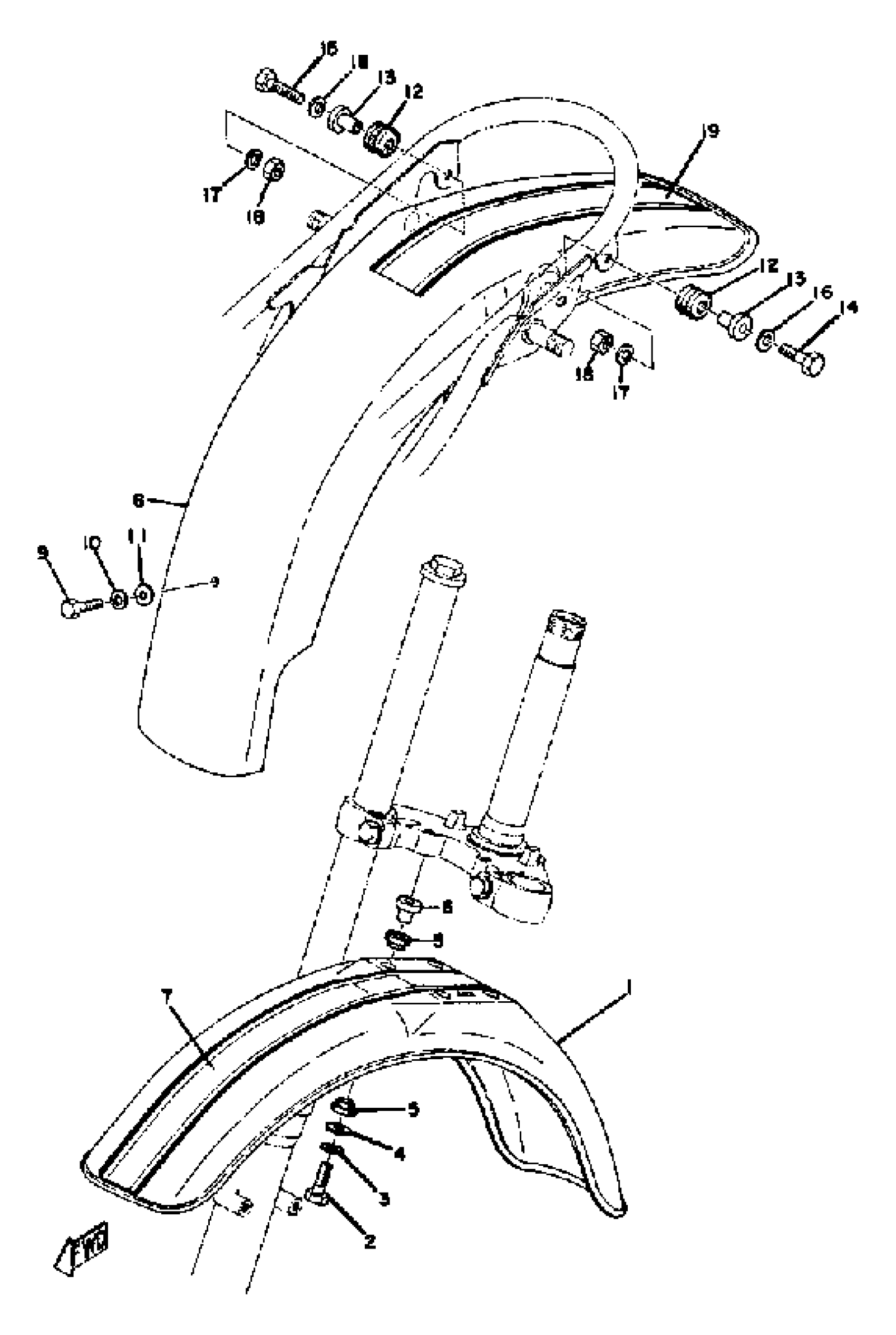

Yamaha YZ80A (YZ80A_B_C) 1974 FRONT FENDER - REAR FENDER YZ80B - YZ80C Diagram

#

Description
Price

1

FENDER, FRONT

(462-21511-00-20)

Unavailable

1

FENDER, FRONT

(492-21511-00-00)

Unavailable

2

BOLT, HEXAGON

97017-06025-00

$4.24

3

WASHER, SPRING

92995-06100-00

Unavailable

4

WASHER, PLATE

90201-06380-00

$0.60

5

DAMPER, FENDER

322-21541-00-00

$7.99

6

COLLAR

90387-06158-00

$8.49

7

MOLD, FENDER

(462-21519-00-00)

Unavailable

7

MOLD, FENDER

(492-21519-00-00)

Unavailable

8

FENDER, REAR

(462-21611-00-20)

Unavailable

8

FENDER, REAR

(492-21611-00-00)

Unavailable

9

BOLT, HEXAGON

97017-06020-00

$4.06

11

WASHER, PLATE

90201-06380-00

$0.60

12

GROMMET 839774310000

90480-14023-00

$7.49

13

COLLAR

90387-06158-00

$8.49

14

BOLT, HEXAGON

97017-06025-00

$4.24

15

BOLT, HEXAGON

97017-06030-00

Unavailable

16

WASHER, PLAIN (646)

92990-06600-00

Unavailable

16

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

NUT, HEXAGON

95380-06600-00

Unavailable

19

STRIPE, REAR FENDER

(462-21619-00-00)

Unavailable
