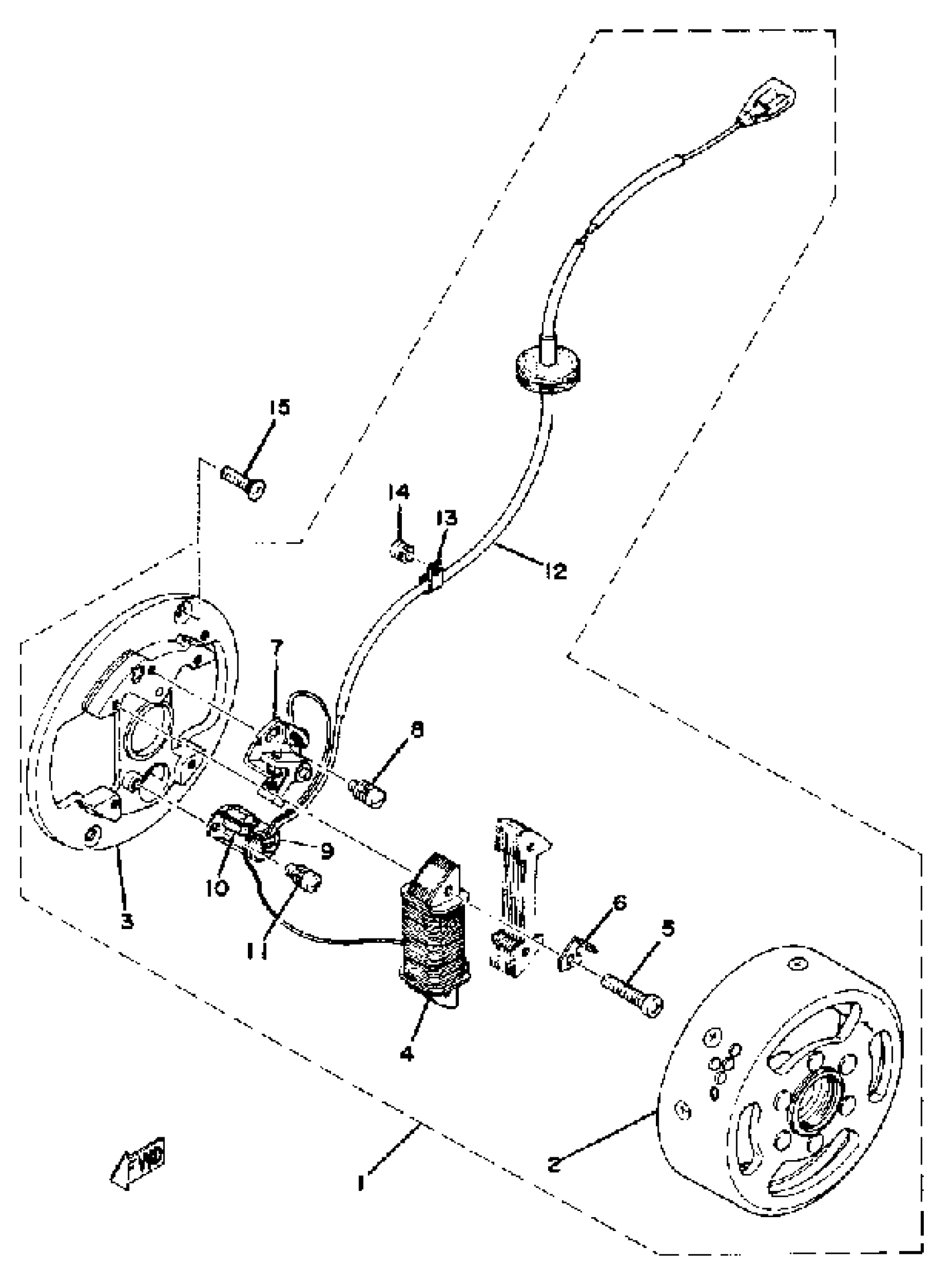

Yamaha YZ80A (YZ80A_B_C) 1974 FLYWHEEL MAGNETO YZ80C Diagram

#

Description

Price

1

FLYWHL MAGNETO ASSEMBLY (367-81300-21-00)

1T0-81300-20-00

Unavailable

2

ROTOR ASSEMBLY

(1T0-81350-20-00)

Unavailable

3

BASE, MAGNETO

520-81309-20-00

Unavailable

4

. COIL, SOURCE

207-81312-21-00

Unavailable

5

SCREW, PAN HEAD

98517-04025-00

Unavailable

6

. PLATE, TIMING

296-81332-20-00

Unavailable

7

. CONTACT BRKR ASSEMBLY

1V1-81321-90-00

Unavailable

8

SCREW, PAN HEAD

110-81346-21-00

$5.49

9

. CONDENSER

296-81325-90-00

Unavailable

10

. LUBRICATOR

116-81331-20-00

Unavailable

11

SCREW, PAN HEAD

110-81346-21-00

$5.49

12

LEAD WIRE ASSEMBLY

(367-81315-20-00)

Unavailable

14

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

15

SCREW, FLAT

98707-05016-00

$7.99
