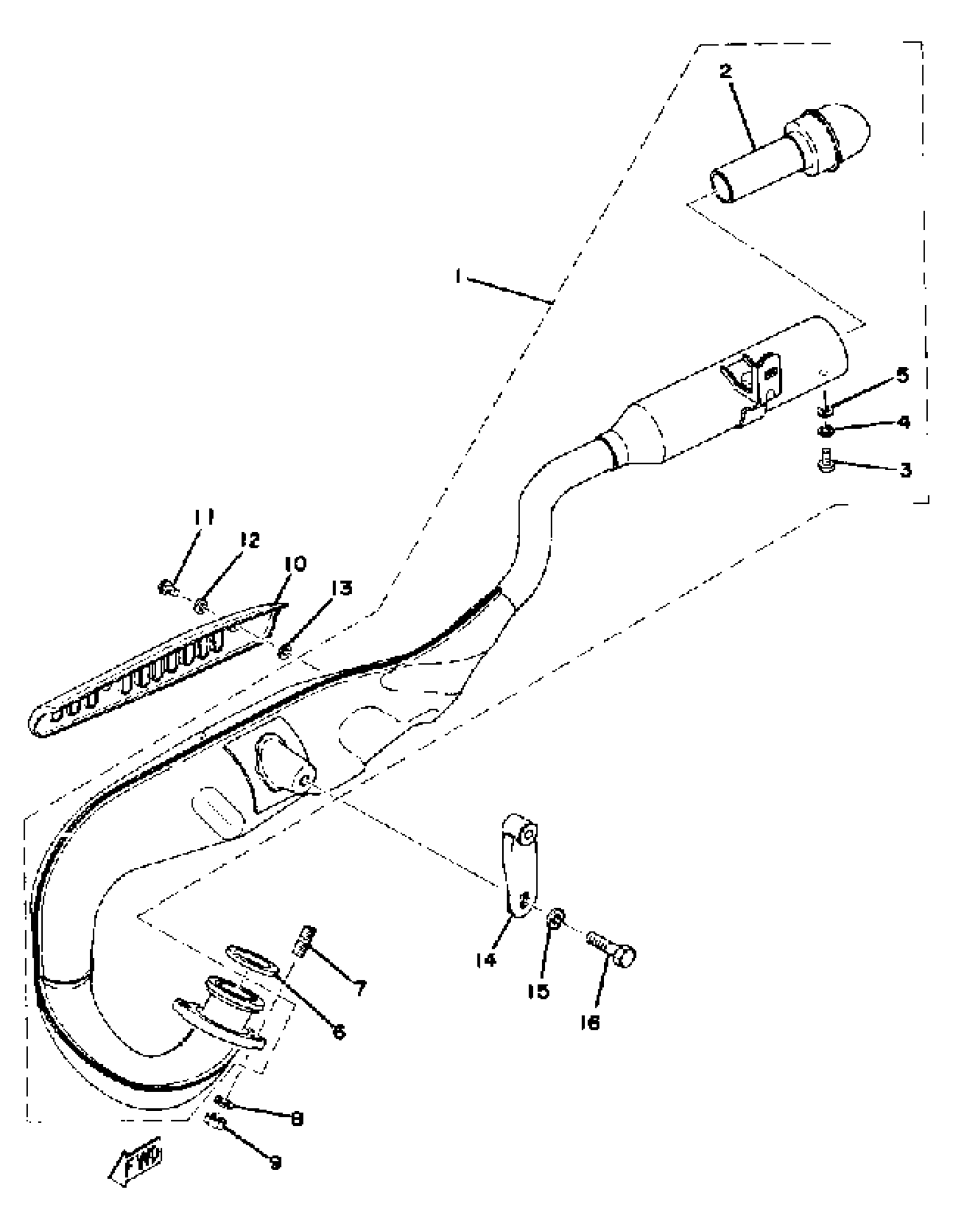

Yamaha YZ80A (YZ80A_B_C) 1974 EXHAUST YZ80C Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY L

(598-14610-00-00)

Unavailable

2

PIPE, OUTLET

438-14752-00-00

Unavailable

3

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

4

WASHER, SPRING

92995-06100-00

Unavailable

5

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

6

GASKET, EXHAUST PIPE

3MT-14613-00-00

$10.99

7

BOLT, STUD (17W)

90116-08408-00

Unavailable

8

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

9

NUT(6L2)

95333-08600-00

$2.49

10

PROTECTOR, MUFF 1

(598-14718-00-00)

Unavailable

11

SCREW, BIND(1JK)

98980-06010-00

$9.49

12

WASHER, PLATE(3MB)

90202-05187-00

$1.38

13

WASHER, PLATE(3MT)

90202-05188-00

$8.49

14

STAY, MUFFLER 1

(598-14771-00-00)

Unavailable

15

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

16

BOLT

97013-08035-00

Unavailable
