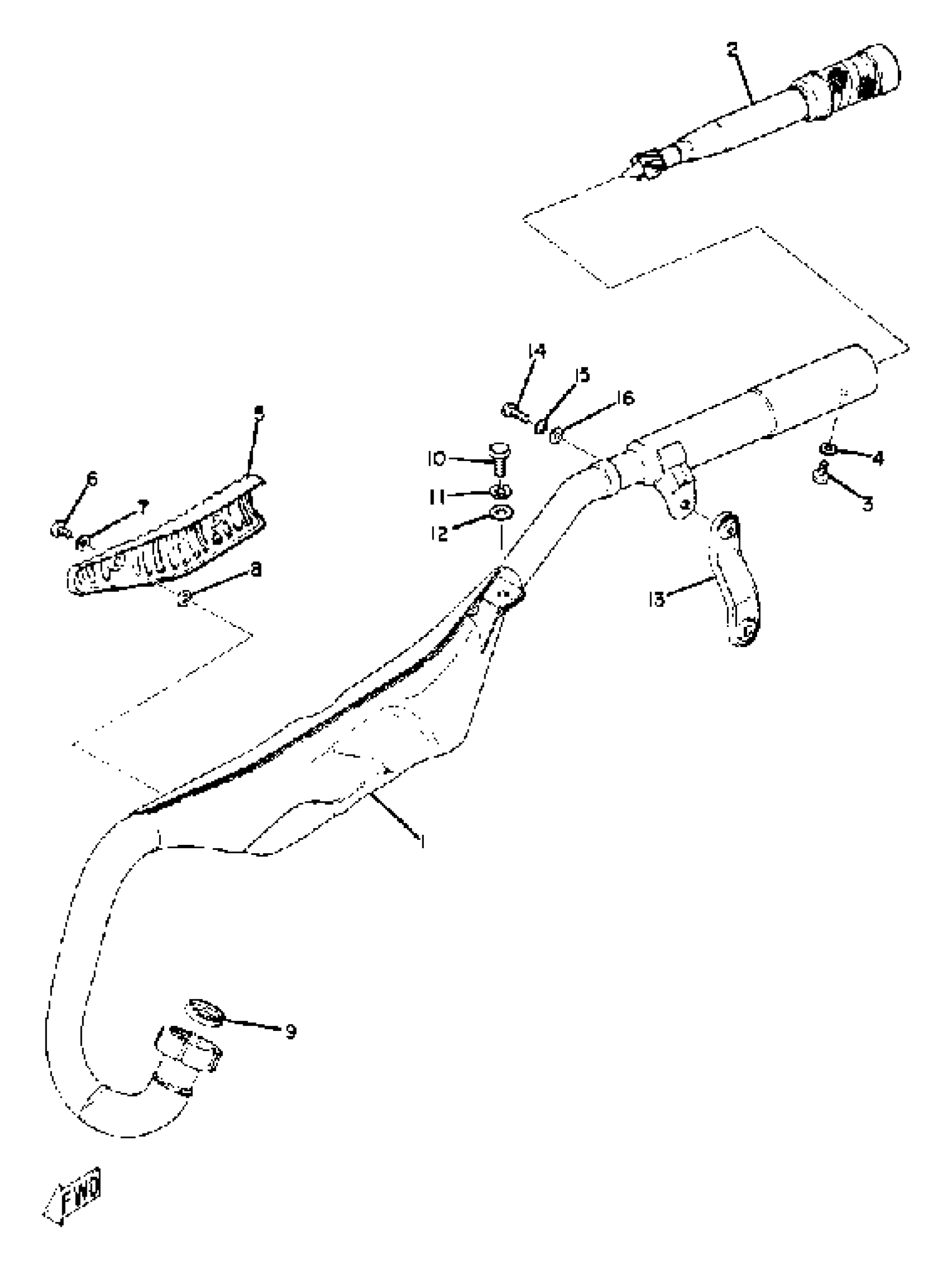

Yamaha YZ80A (YZ80A_B_C) 1974 EXHAUST YZ80A Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY L

(462-14610-33-00)

Unavailable

2

. PIPE, OUTLET

451-14752-30-00

Unavailable

3

SCREW PAN HEAD

98580-06010-00

$5.75

4

WASHER, SPRING

92995-06100-00

$2.95

5

PROTECTOR, MUFF 1

(462-14718-31-00)

Unavailable

6

SCREW, BIND(1JK)

98980-06010-00

$5.47

7

WASHER, PLATE(3MB)

90202-05187-00

$1.01

8

WASHER, PLATE(3MT)

90202-05188-00

$5.76

9

GASKET, EXHAUST PIPE

3MT-14613-00-00

$8.92

10

BOLT, HEXAGON

97013-08020-00

$1.43

11

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

12

WASHER, PLAIN

92990-08200-00

$2.36

13

STAY, MUFFLER

(462-14791-00-00)

Unavailable

14

BOLT, HEXAGON

97017-06020-00

$2.37

15

WASHER, SPRING

92995-06100-00

$2.95

16

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable
