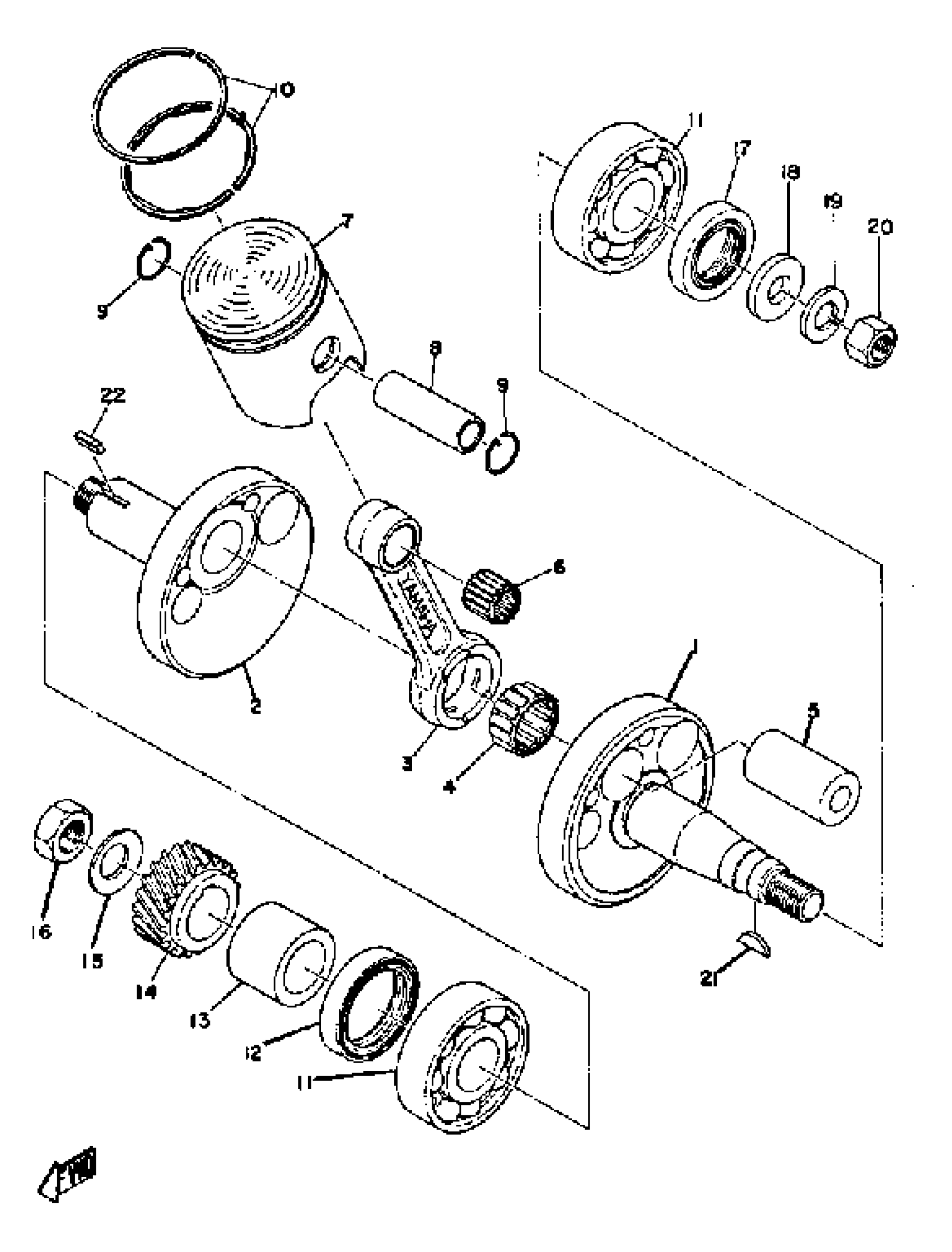

Yamaha YZ80A (YZ80A_B_C) 1974 CRANKSHAFT - PISTON YZ80A - YZ80B Diagram

CRANKSHAFT ASSEMBLY

1K9-11400-00-00

Unavailable

CRANK 1

(367-11412-00-00)

Unavailable

CRANK 2

(367-11422-00-00)

Unavailable

PISTON KIT STD

(492-11630-00-00)

Unavailable

PISTON KIT 1ST

(492-11630-10-00)

Unavailable

PISTON KIT 2ND

(492-11630-20-00)

Unavailable

ROD, CONNECTING

3R1-11651-01-00

$125.99

BEARING, CYLINDRICAL(3TU)

93310-418C4-00

$48.99

BEARING, CYLINDRICAL(3TU)

93310-418C4-00

$48.99

PIN, CRANK 1

257-11681-10-00

$29.99

BRG,CYL-CAL ROLLER 5G TM

93310-11268-00

$35.99

PISTON (STD) 0.96MM

367-11631-11-96

Unavailable

PISTON (1ST O/S)

367-11635-11-00

Unavailable

PISTON (STD) 2ND O/S

367-11636-11-00

Unavailable

PISTON STD

(492-11631-00-97)

Unavailable

PISTON 1 O/S 0.25

(492-11635-00-00)

Unavailable

PISTON 2 O/S 0.50

492-11636-00-00

Unavailable

PIN, PISTON

527-11633-00-00

Unavailable

CIRCLIP 132116340000

93450-13022-00

Unavailable

PISTON RING SET (STD)

367-11610-00-00

Unavailable

PISTON RINGSET 1ST

367-11610-10-00

Unavailable

PISTON RING SET (2NDO/S)

367-11610-20-00

Unavailable

PISTON RINGSET STD

492-11601-01-00

Unavailable

PISTON RINGSET 1ST

492-11601-11-00

Unavailable

PISTON RINGSET 2ND

492-11601-21-00

Unavailable

BEARING(1GJ)

93306-20458-00

Unavailable

OIL SEAL (28X40X8-132)

93103-28011-00

Unavailable

COLLAR (4Y2)

90387-205E9-00

Unavailable

GEAR, PRI DRIVE

353-16111-01-00

Unavailable

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

NUT(1EE)

90179-12659-00

Unavailable

OIL SEAL (20X35X7-136)

93102-20009-00

Unavailable

WASHER (492)

90201-12535-00

Unavailable

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

NUT(3DM)

95304-12600-00

Unavailable

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable

KEY, STRAIGHT 3531154600

90282-05005-00

Unavailable
