CRANKSHAFT-PISTON

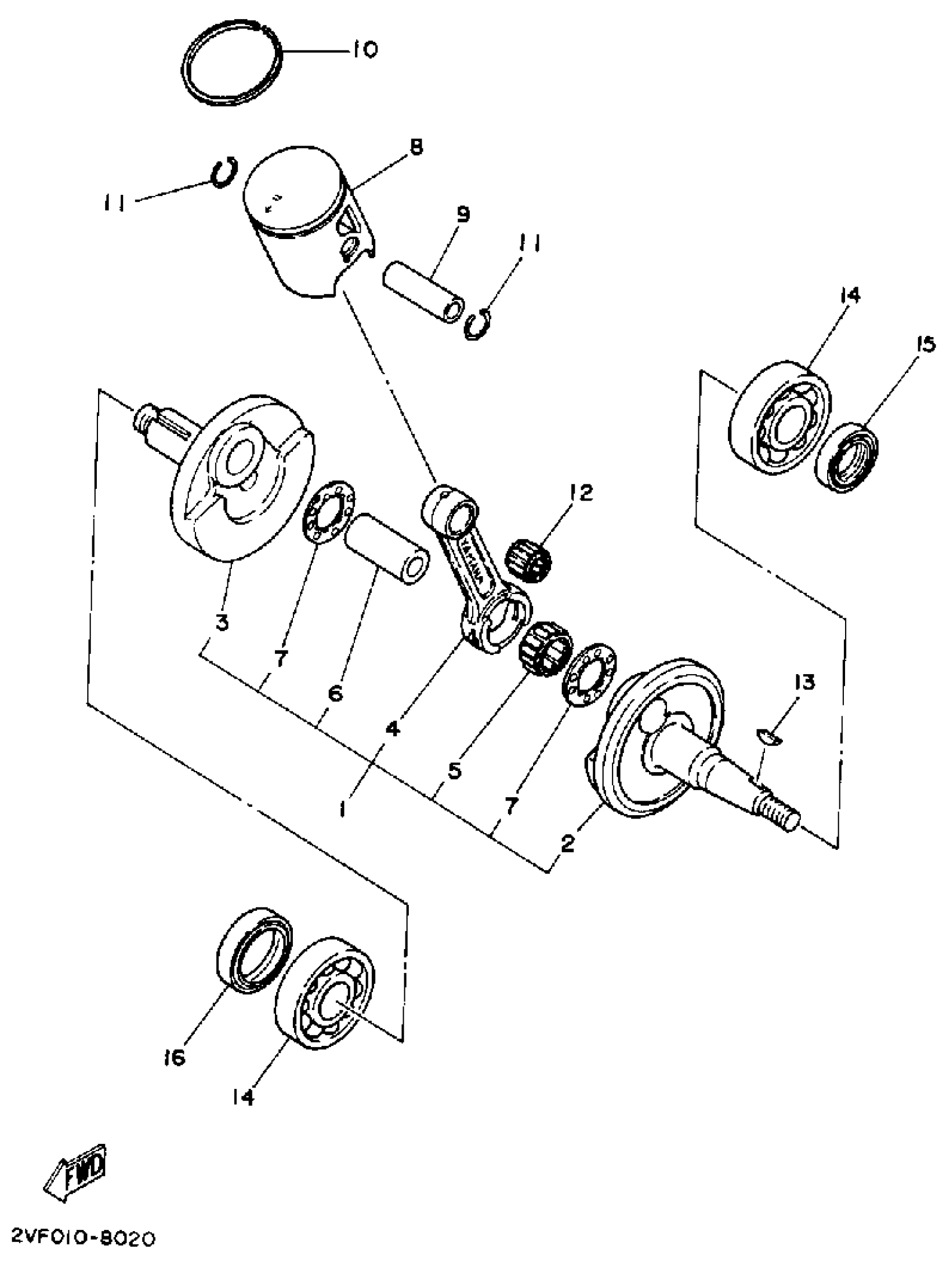

Yamaha YZ80A (YZ80A_B_C) 1974 CRANKSHAFT-PISTON Diagram
#
1
CRANKSHAFT ASSEMBLY
1LR-11400-00-00
Unavailable
2
. CRANK 1
39K-11412-00-00
Unavailable
3
. CRANK 2
39K-11422-00-00
Unavailable
4
. ROD, CONNECTING
1LR-11651-00-00
Unavailable
5
BEARING, CYLINDRICAL(43K)
93310-418M6-00
Unavailable
6
. PIN, CRANK 1
4V0-11681-00-00
Unavailable
8
. PISTON STD (STD)
2VE-11631-00-94
Unavailable
8
. PISTON STD (STD)
2VE-11631-00-94
Unavailable
8
. PISTON 1 O/S 025 (025MM O/S)
2VE-11635-00-00
Unavailable
8
. PISTON 2 O/S 050 (050MM O/S)
2VE-11636-00-00
Unavailable
10
. RING, PISTON
39K-11611-00-00
Unavailable
10
. RING, PISTON 1ST
39K-11611-10-00
Unavailable
10
. RING, PISTON 2ND
39K-11611-20-00
Unavailable
11
CIRCLIP(1NM)
93450-13130-00
Unavailable
12
. BEARING, CYLINDER#10
93310-312M5-00
Unavailable
13
KEY WOODRUFF 146115450000
90280-03017-00
Unavailable
14
BEARING(4ED)
93306-20468-00
Unavailable
15
OIL SEAL(4BA)
93102-20447-00
Unavailable
16
CONNECTING ROD ASSEMBLYASSY
1LR-11650-00-00
Unavailable
16
. ROD, CONNECTING
1LR-11651-00-00
Unavailable
16
PISTON KIT
2VE-11630-A1-00
Unavailable
16
PISTON KIT
2VE-11630-E1-00
Unavailable
16
PISTON KIT
2VE-11630-F1-00
Unavailable
16
. PISTON STD (STD)
2VE-11631-00-94
Unavailable
16
. PISTON 1 O/S 025 (025MM O/S)
2VE-11635-00-00
Unavailable
16
. PISTON 2 O/S 050 (050MM O/S)
2VE-11636-00-00
Unavailable
16
. RING, PISTON
39K-11611-00-00
Unavailable
16
. RING, PISTON 1ST
39K-11611-10-00
Unavailable
16
. RING, PISTON 2ND
39K-11611-20-00
Unavailable
16
. PIN, CRANK 1
4V0-11681-00-00
Unavailable
16
OIL SEAL (28X40X8-132)
93103-28011-00
Unavailable
16
. BEARING, CYLINDER#10
93310-312M5-00
Unavailable
16
BEARING, CYLINDRICAL(43K)
93310-418M6-00
Unavailable
16
CIRCLIP(1NM)
93450-13130-00
Unavailable
