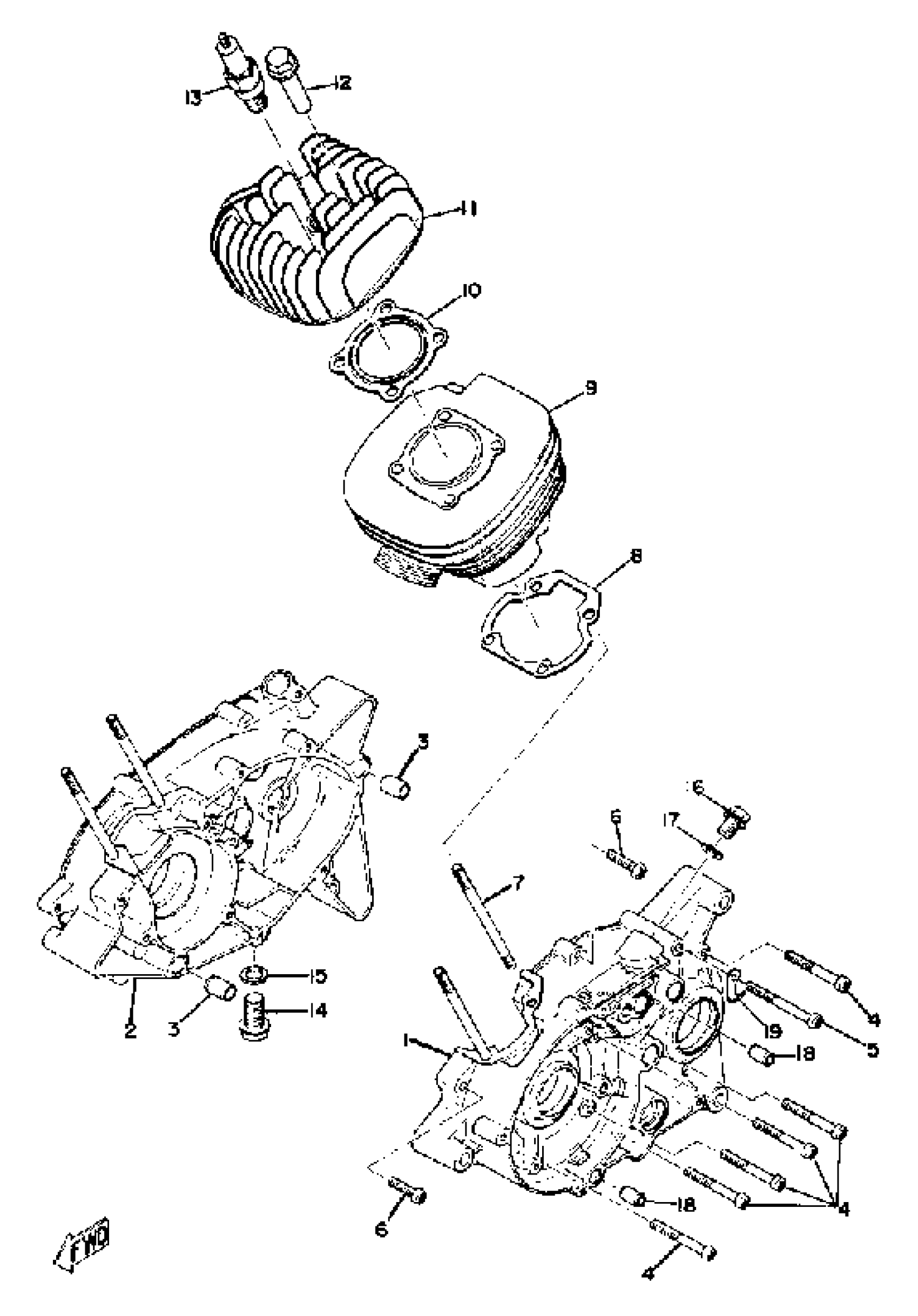

Yamaha YZ80A (YZ80A_B_C) 1974 CRANKCASE - CYLINDER YZ80A Diagram

#

Description
Price

1

CRANKCASE 1

(367-15111-01-98)

Unavailable

2

CRANKCASE 2

367-15121-07-00

Unavailable

3

PIN, DOWEL

99530-12016-00

$4.89

4

SCREW PAN HEAD

98580-06550-00

$8.49

5

SCREW, PANHED (GC2)

98580-06555-00

Unavailable

6

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

7

BOLT, STUD

90116-06139-00

Unavailable

8

GASKET, CYLINDER

367-11351-01-00

$6.99

9

CYLINDER 1

(462-11311-00-R4)

Unavailable

10

GASKET, CYLINDER HEAD 1

598-11181-00-00

Unavailable

11

HEAD, CYLINDER 1

(462-11111-00-R4)

Unavailable

12

NUT, SPEC''L SHAPE (90179-06005)

90179-06180-00

Unavailable

13

B7HS NGK 4PK

B7H-S0000-00-00

Unavailable

14

PLUG STRAIGTSCREW 132153510000

90340-12005-00

$8.49

15

GASKET (3JD1)

90430-12207-00

$7.99

16

PLUG STRAIGTSCREW 367185880000

90340-10003-00

Unavailable

17

GASKET (5R6)

90430-10171-00

Unavailable

18

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

19

CLAMP

(90465-06278-00)

Unavailable
