Description

Price

1

GEAR, PRI DRIVE

1LR-16111-00-00

Unavailable

2

COLLAR

90387-202F0-00

Unavailable

3

KEY, STRAIGHT

90282-05001-00

$9.49

4

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

5

NUT (4V2)

90179-12335-00

Unavailable

6

PRIMARY DRIVEN GEAR COMP.

1LR-16150-01-00

Unavailable

7

BOSS, CLUTCH

1LR-16371-00-00

Unavailable

8

PLATE, PRESSURE 1

1LR-16351-00-00

Unavailable

9

PLATE, CLUTCH 1

257-16324-10-00

Unavailable

10

PLATE, FRICTION

3XP-16321-00-00

$19.99

11

SPRING, COMPRESSION(58T)

90501-204A0-00

$8.49

12

SCREW, WITH WASHER (537)

90159-05011-00

$3.23

13

PLATE, THRUST 1

4V0-16154-00-00

$31.99

14

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

15

NUT(1EE)

90179-12659-00

$8.49

16

ROD,PUSH (1)

137-16356-00-00

Unavailable

17

ROD, PUSH 2

2X3-16357-00-00

Unavailable

18

BALL

93503-16003-00

Unavailable

19

BEARING, CYLINDRICAL (3R3)

93315-21429-00

Unavailable

20

OIL SEAL (2K8)

93109-14021-00

Unavailable

21

WASHER, PLAIN (434)

90201-14411-00

Unavailable

22

SPRING, TORSION

90508-18463-00

Unavailable

23

AXLE, PUSH LEVER

58T-16382-00-00

Unavailable

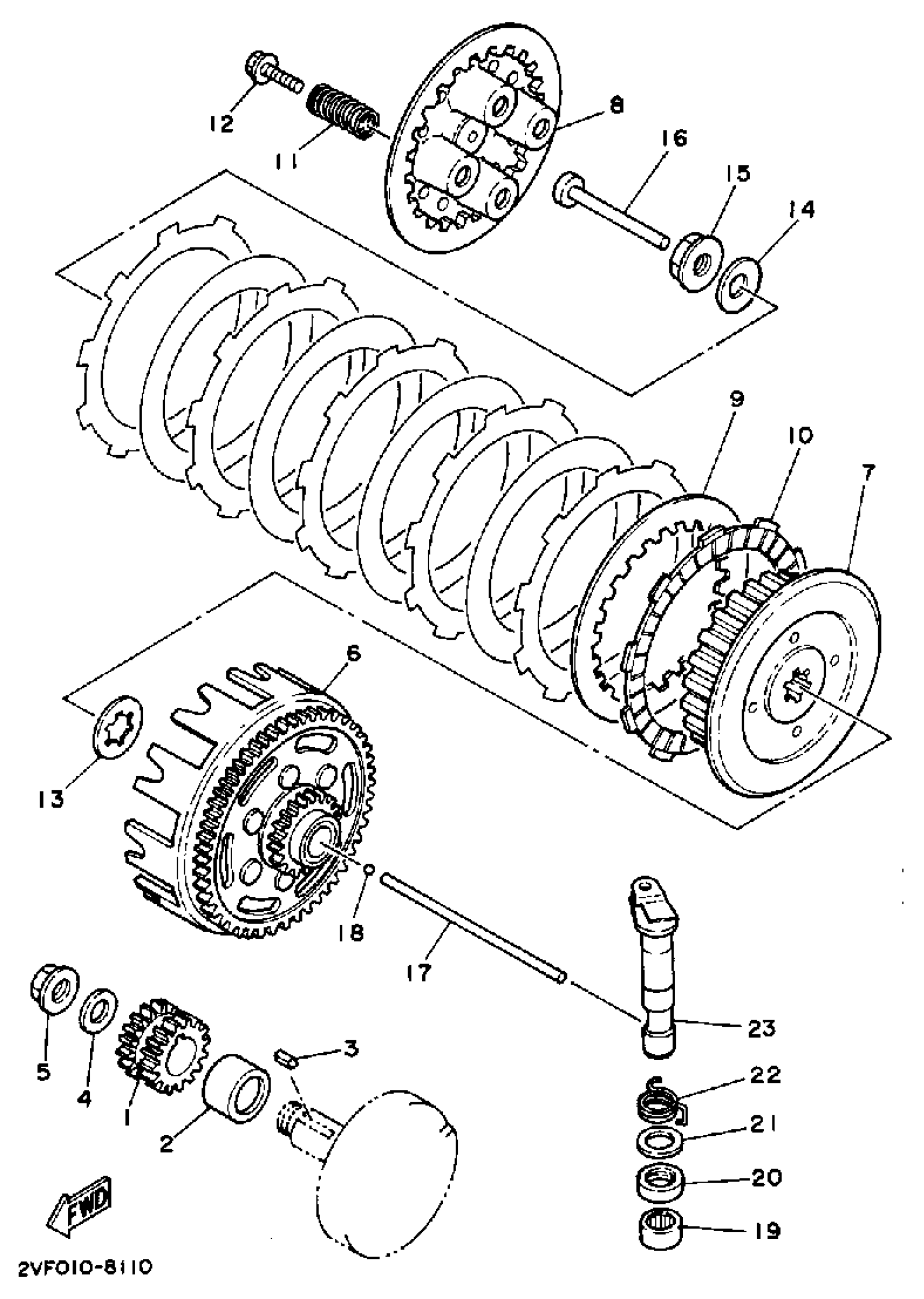

Yamaha YZ80A (YZ80A_B_C) 1974 CLUTCH Diagram

GEAR, PRI DRIVE

COLLAR

KEY, STRAIGHT

WASHER, CONICAL SPRING 12,2 X

NUT (4V2)

PRIMARY DRIVEN GEAR COMP.

BOSS, CLUTCH

PLATE, PRESSURE 1

PLATE, CLUTCH 1

PLATE, FRICTION

SPRING, COMPRESSION(58T)

SCREW, WITH WASHER (537)

PLATE, THRUST 1

WASHER, CONICAL SPRING 12,2 X

NUT(1EE)

ROD,PUSH (1)

ROD, PUSH 2

BALL

BEARING, CYLINDRICAL (3R3)

OIL SEAL (2K8)

WASHER, PLAIN (434)

SPRING, TORSION

AXLE, PUSH LEVER
