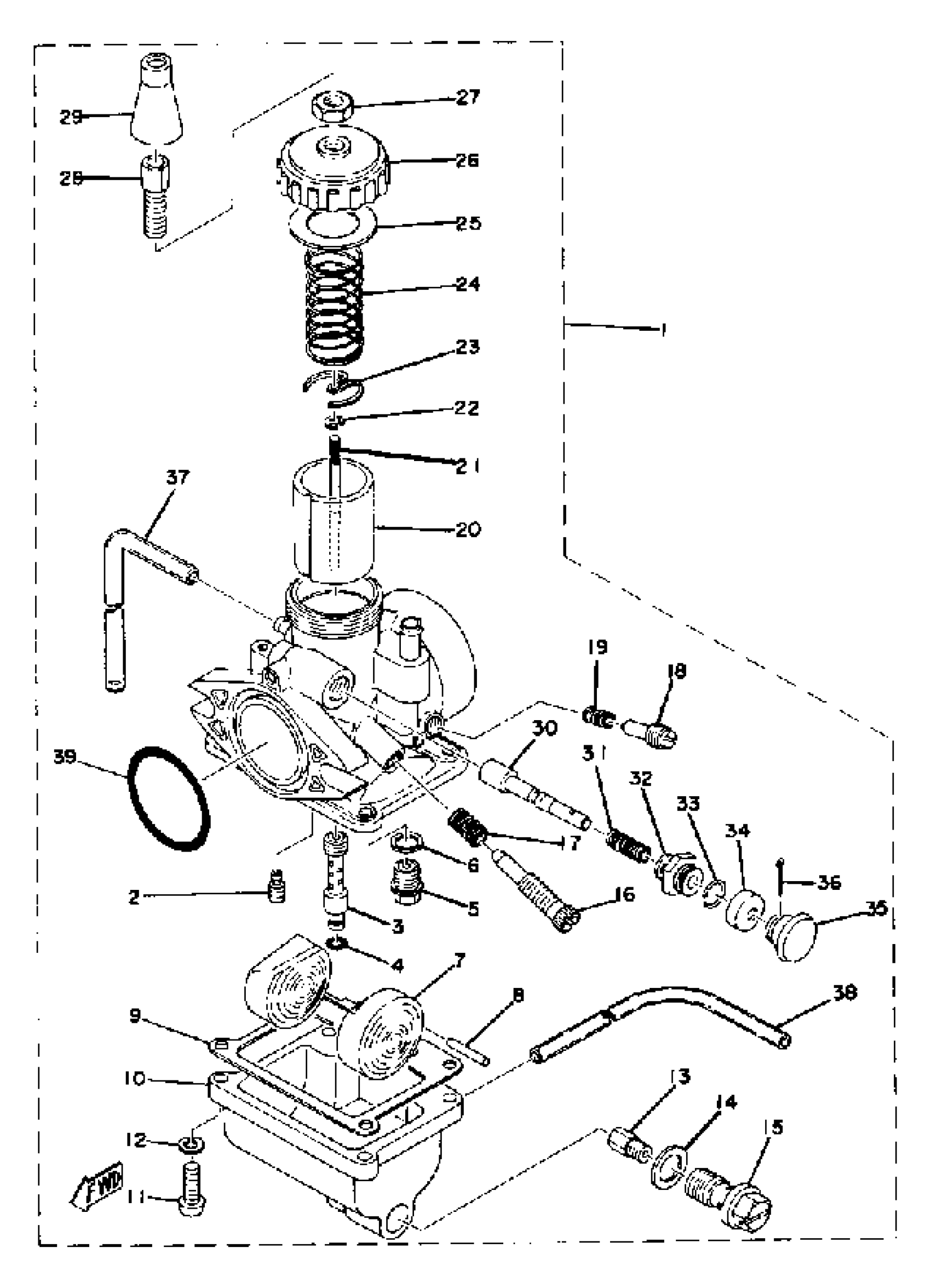

Yamaha YZ80A (YZ80A_B_C) 1974 CARBURETOR YZ80C Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

(598-14101-60-00)

Unavailable

2

JET, PILOT (# 35)

260-14142-35-00

$9.99

3

NOZZLE, MAIN

(314-14141-30-00)

Unavailable

4

O-RING

214-14147-00-00

$7.99

5

NEEDLE VALVE SET

23L-14107-25-00

$42.99

6

WASHER, VALVE SEAT

214-14195-00-00

$7.99

7

FLOAT

314-14185-00-00

$66.99

8

PIN, FLOAT

127-14186-00-00

$6.65

9

GASKET,FLOAT CHAMBER

304-14184-00-00

$14.49

10

. BODY, FLOAT CHMBR 1

314-14181-08-00

Unavailable

11

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

12

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

13

JET, MAIN #200

137-14143-40-A1

$13.49

13

JET, MAIN #210

137-14143-42-A1

Unavailable

13

JET, MAIN #220

137-14143-44-A1

$11.99

14

GASKET

304-14198-00-00

Unavailable

15

BOLT, BANJO

(479-14166-00-00)

Unavailable

16

THROTTLE SCREW SET

23X-14103-00-00

Unavailable

17

SPRING, THROTTLE STOP

137-14133-00-00

Unavailable

18

AIR SCREW SET

22K-14104-00-00

Unavailable

19

SPRING, AIR ADJUSTING

174-14134-00-00

Unavailable

20

VALVE, THROTTLE

314-14112-15-00

Unavailable

21

NEEDLE

166-14116-13-00

Unavailable

22

CLIP

3FA-14137-00-00

Unavailable

23

. STOPPER, CABLE

246-14132-00-00

Unavailable

24

SPRING, THROTTLE VALVE

248-14131-00-00

Unavailable

25

GASKET

246-14126-00-00

Unavailable

26

TOP, MIXING CHAMBER

(316-14158-00-00)

Unavailable

27

NUT, WIRE ADJUSTING

802-14161-00-00

Unavailable

28

. SCREW, CABLE ADJUSTING

360-14124-20-00

Unavailable

29

CAP

8A7-14169-00-00

Unavailable

30

. PLUNGER, STARTER

304-14171-00-00

Unavailable

31

SPRING, PLUNGER

156-14135-00-00

Unavailable

32

CAP, PLUNGER

152-14174-00-00

Unavailable

33

CLIP, PLUNGER

353-14138-00-00

Unavailable

34

COVER, PLUNGER CAP

132-14173-00-00

Unavailable

35

HOLDER

304-14261-00-00

Unavailable

36

PIN, COTTER

91490-16020-00

Unavailable

37

PIPE, AIR VENT

183-14197-01-00

Unavailable

38

PIPE

23F-14197-00-00

Unavailable

39

O-RING

248-14147-00-00

Unavailable
